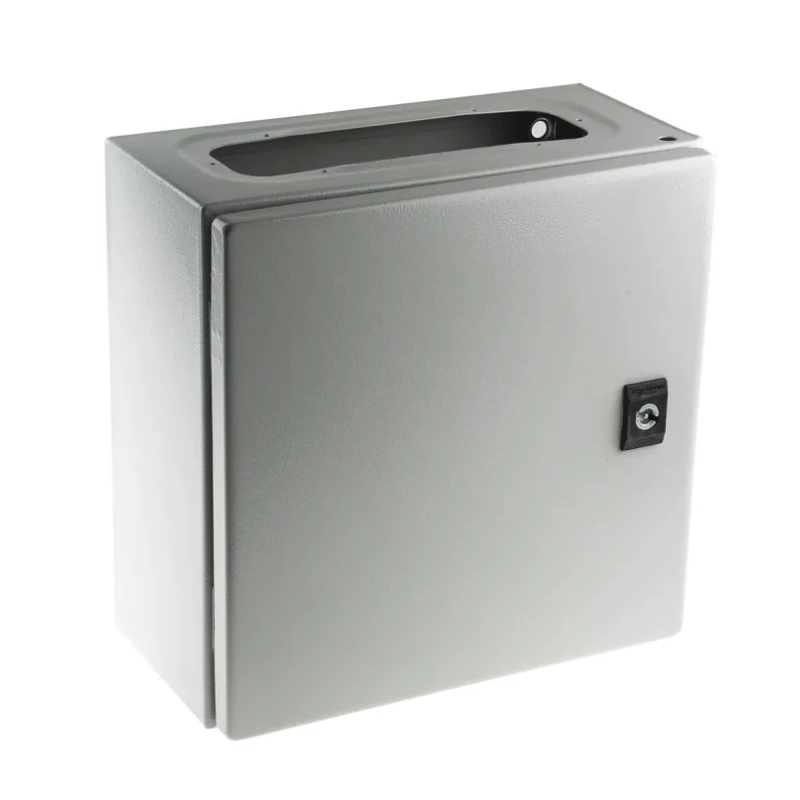

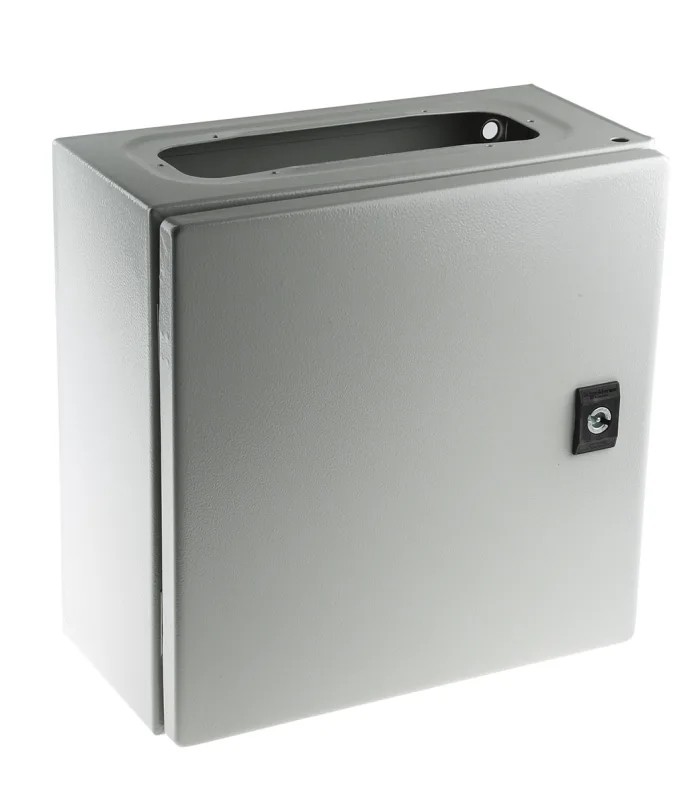

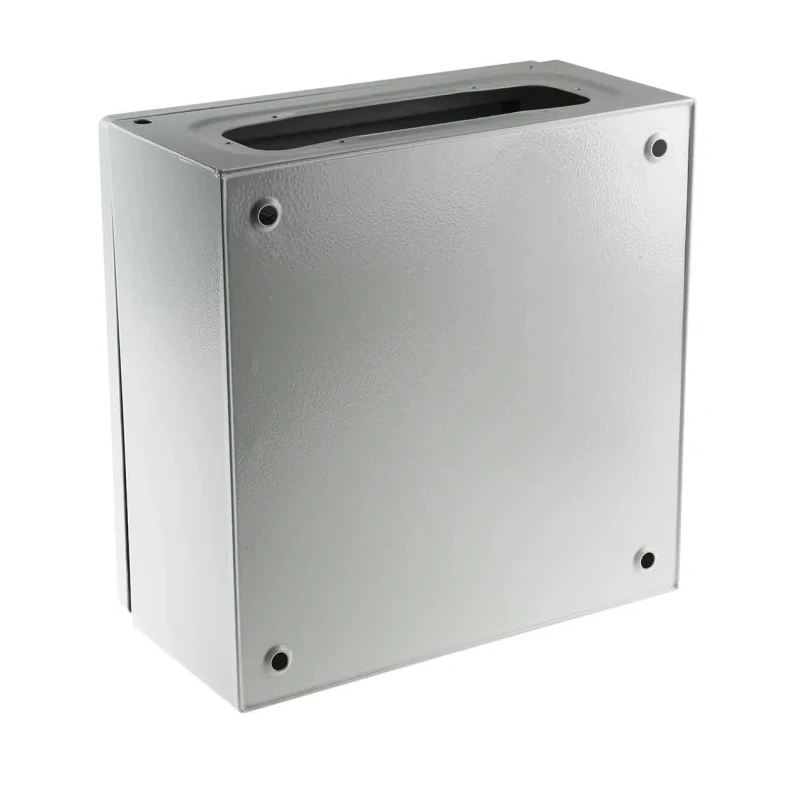

Schneider Electric Spacial CRN Series Steel Wall Box Enclosure IP66 Grey 300mm x 300mm x 150mm NSYCRN33150

Schneider Electric NSYCRN33150 Spacial CRN Series Steel Wall Box Enclosure is a high-quality industrial enclosure designed for robust electrical equipment housing, providing IP66 protection against dust and water ingress while offering excellent mechanical resistance rated IK10.

The enclosure measures 300 mm height, 300 mm width, and 150 mm depth, constructed from steel with an epoxy-polyester powder coat finished in grey (RAL 7035). This wall mounting enclosure includes a plain door secured with a 3 mm double-bar lock and features a cable gland plate for proper cable management.

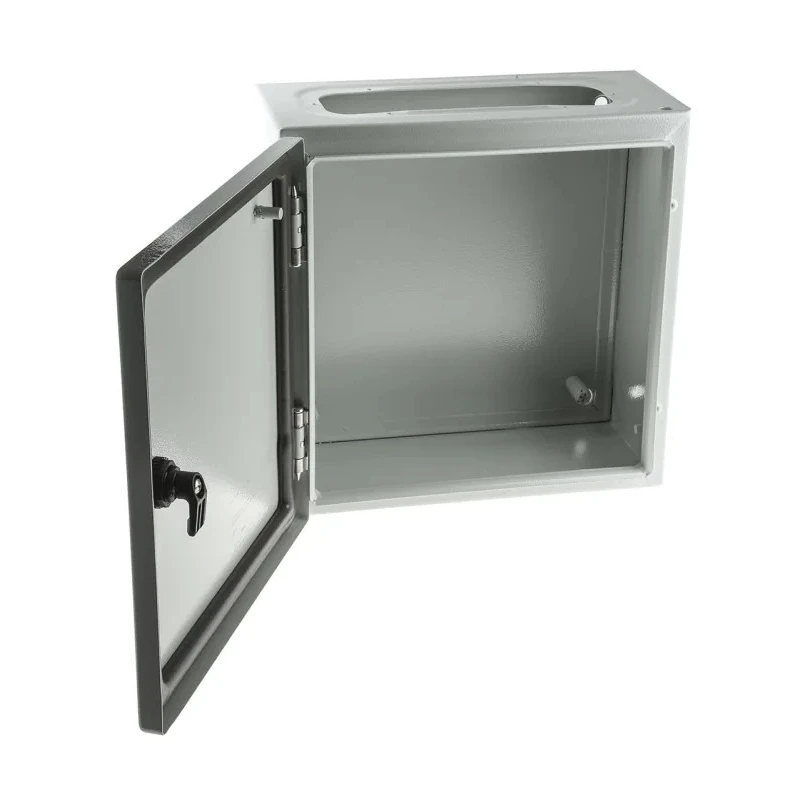

The polypropylene polyurethane seal ensures water tightness for extended periods, making the enclosure suitable for indoor and outdoor applications in demanding industrial and commercial environments. Doors have a reversible and removable design with a 120° opening angle, facilitating easy access and maintenance. Smart hinges and welded studs on both door and body ensure secure grounding and mounting.

The Spacial CRN series enclosures support a maximum load of 50 kg/m2 and come with welded back studs for mounting using 10 mm fasteners. This enclosure is part of a universal range that accommodates various inserts and configurations including plain, silk-screen, and perforated options for different industrial use cases such as automation, electronics, and electrical distribution.

Certified to relevant standards including IEC 62208, UL, cULus, RoHS, and REACH, this enclosure is a reliable choice for industrial control, manufacturing facilities, and water treatment plants. Please note that the fixing kit and mounting plate are sold separately. Industrial users can benefit from the ergonomic design and robust protection for their electrical installations.

Constructed from durable steel with epoxy-polyester powder finish for corrosion resistance. Features IP66 ingress protection rating for indoor and outdoor use. Equipped with a double-bar 3 mm door lock and a cable gland plate for secure installation.

Designed with polyurethane seal for long-lasting water tightness and IK10 impact rating for mechanical protection. Includes a plain door, steel body, and cable gland plate; mounting plate and fixing kit are not included.

Grey color with panel internal mount type and series Spacial CRN for universal Wall Box applications. Doors open up to 120° with removable and reversible design, including smart hinges for ease of maintenance. Suitable for industrial automation, electrical distribution, and electronics network installations.

Standards compliance includes REACH, RoHS, UL, IEC 62208, and cULus certification marks. Explore the Schneider Electric category on EnvMart for additional electric enclosures and industrial electrical accessories.
