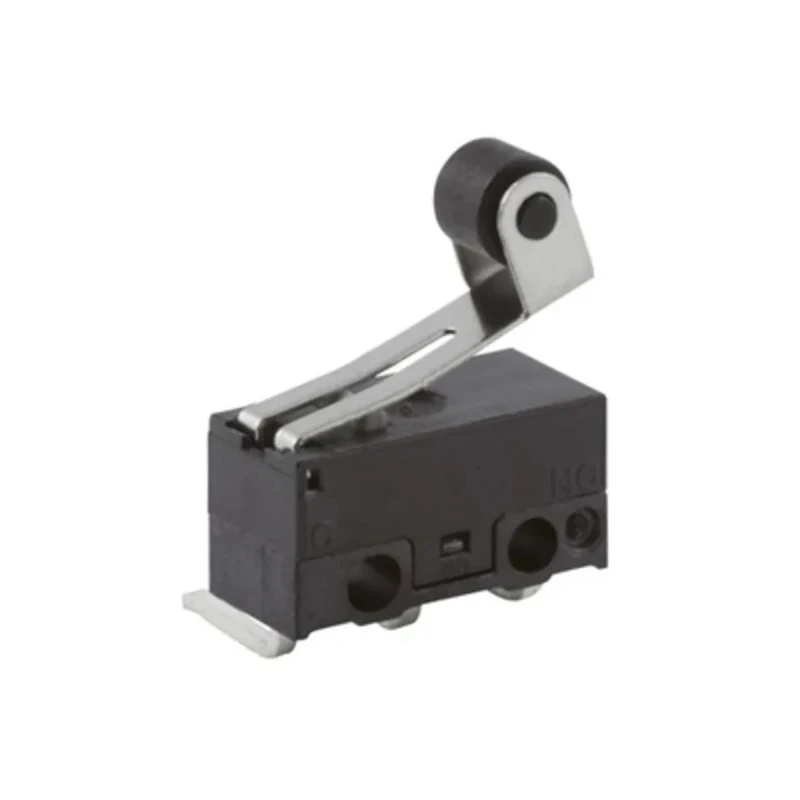

ZF Roller Lever Micro Switch with Right Angle PCB Terminal, 50mA Current, 125 V AC, SPDT Contact Configuration DG23-B2RA
Specifications
| Country of Origin | India |
|---|---|
| Brand | ZF |
| Operating Temperature Range | -25 to +85°C |
| Model | DG23-B2RA |
| IP Rating | IP40 |
| Housing Material | Polyphenylene Sulphide |
| Series | DG Sub-Miniature |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Actuator Type | Roller Lever |
| Minimum Operating Temperature | -25°C |
| Terminal type | Right Angle PCB Terminal |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 706-4187Brand: ZFManufacturers Part No.: DG23-B2RA |
| Switch Contact Current | 50mA |
| Operating Force | 0.59N |
| Mechanical Life | 1000000Operations |
| Contact AC Voltage | 125V ac |
| Microswitch Type | DG Subminiature |
Key Features
- The actuator type is a roller lever ensuring precise mechanical operation.
- Constructed with durable polyphenylene sulphide housing material.
- Rated for operating currents up to 50mA and voltage up to 125 V AC.
- Designed as a DG Subminiature series with a mechanical life of 1,000,000 operations.
- Operating temperature range spans from -25°C to +85°C, suitable for various industrial environments.
- The switch features silver-plated wiping contacts for low resistance and reliability.
- IP40 rated enclosure provides protection against solid objects greater than 1mm.
- Right angle PCB terminal type facilitates compact PCB mounting.
Product Description
ZF DG23-B2RA Roller Lever Micro Switch is a high-quality miniature PCB microswitch designed for precise and reliable electrical switching in industrial and automation applications. It features a roller lever actuator and right angle PCB terminals, enabling secure and efficient integration into control systems requiring low current switching at 50mA and 125 V AC.
The switch body is molded from flame-retardant polyphenylene sulphide material rated UL94V-0, ensuring durability under various operating conditions. With an IP40 rating, it is protected against intrusion of solid objects larger than 1mm, making it suitable for controlled indoor environments.
Operating temperatures range from -25°C to +85°C, supporting usage in a broad set of industrial, manufacturing, and electrical automation scenarios. The switch has a robust mechanical life of 1,000,000 operations, ensuring long-term reliability.
The SPDT (Single Pole Double Throw) contact configuration with silver-plated wiping contacts ensures low resistance and consistent performance, ideal for precise signal switching tasks. The right angle PCB terminals facilitate space-saving mounting on printed circuit boards, supporting compact electrical assemblies.
This product complies with RoHS environmental directives and is certified as a UL recognized component and CSA certified, confirming its adherence to stringent safety and quality standards.
The actuator uses a roller lever ensuring smooth actuation. Polyphenylene sulphide housing provides flame resistance and toughness. Switch supports electrical load of 50mA at 125 V AC for low current control. SPDT contact arrangement allows flexible switching configurations.
Rated IP40 for protection against solid particles over 1mm. Wide operating temperature suits industrial and electrical applications. One million mechanical operation life assures durability. Right angle PCB terminals for efficient circuit board connectivity.
RoHS compliant and UL/CSA safety certifications enhance reliability and acceptance. Suitable for automation equipment, electrical panels, and control systems. Explore more products in the Micro Switch category on EnvMart for reliable electrical switching components tailored to your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This micro switch is rated for a maximum operating current of 50mA and a voltage of 125V AC.
The DG23-B2RA model features a Single Pole Double Throw (SPDT) contact configuration.
The operating temperature range for this switch spans from -25°C to +85°C.
This model is equipped with right angle PCB terminals, facilitating compact PCB mounting.
The housing of the switch is constructed from polyphenylene sulphide, which provides durability and flame resistance.
The switch has a mechanical life rated for 1,000,000 operations, ensuring long-term reliability.
This micro switch has an IP40 rating, which provides protection against solid objects larger than 1mm.
Yes, this switch is RoHS compliant, indicating adherence to environmental directives.
The DG23-B2RA uses a roller lever actuator, ensuring smooth and precise mechanical operation.
This micro switch is suitable for automation equipment, electrical panels, and control systems.
The operating force for this switch is specified at 0.59N, which is the force required to actuate the switch.
The DG23-B2RA micro switch is manufactured in India.
