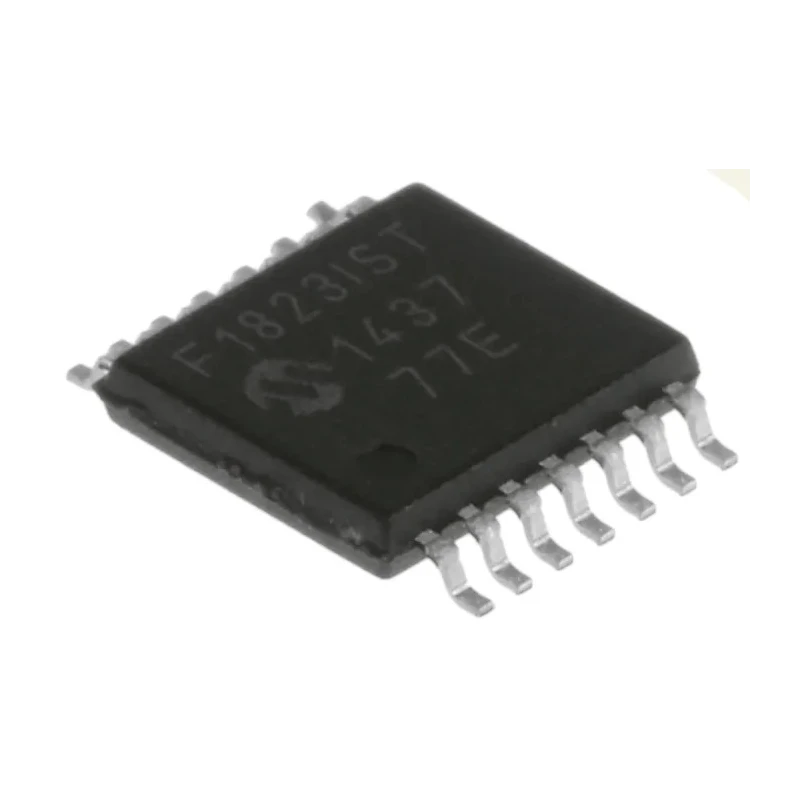

Microchip PIC16F1823-I/ST 8-bit PIC Microcontroller 32 MHz 3.5kB FLASH 14-Pin TSSOP

Microchip PIC16F1823-I/ST 8-bit PIC Microcontroller operates with a clock speed of 32 MHz and includes 3.5kB FLASH memory, making it suitable for embedded systems requiring moderate processing power and memory capacity. This device comes in a compact 14-pin TSSOP surface mount package designed for efficient PCB integration.

Featuring 12 programmable I/Os, the microcontroller supports versatile interfacing with peripheral devices. Its operating voltage ranges between 1.8 V and 5.5 V, allowing flexible power supply design. The RAM size is 128 bytes and it also offers 256 bytes of EEPROM for data retention.

The device includes an 8-channel 10-bit ADC for accurate analog monitoring and dual analogue comparators for signal conditioning. Additionally, it integrates 3 timers (two 8-bit and one 16-bit) and an enhanced Capture/Compare/PWM module to handle timing and control functions.

Designed with Microchip's Enhanced Mid-Range core, it executes instructions with up to 8 MIPS performance using a 16-level hardware stack and 49 instructions set, optimized for embedded application flexibility. The on-chip oscillator is factory calibrated to ±1% accuracy, ensuring reliable clock performance.

The microcontroller supports several advanced features including Power-On Reset (POR), Power-Up Timer (PWRT), Oscillator Start-Up Timer (OST), Brown-Out Reset (BOR), Watchdog Timer (WDT), In-Circuit Serial Programming (ICSP), In-Circuit Debug (ICD), and Enhanced Low-Voltage Programming (LVP).

Operating temperature tolerance from -40°C to 85°C makes it suitable for industrial, automotive, and harsh environment applications. This component enables efficient control in various electronic, industrial automation, and consumer product designs.

Operates at a maximum clock frequency of 32 MHz providing efficient processing. Features 3.5 kB of program memory with FLASH type storage. Offers 128 bytes RAM for data storage and 256 bytes EEPROM. Includes 12 programmable input/output pins suitable for various applications.

Range of operating voltage from 1.8 V to 5.5 V for flexible power supply options. Equipped with 8 channels of 10-bit Analog-to-Digital Converters for precise analog input. Incorporates 2 analogue comparators and various timer modules to support complex control tasks.

Supports surface mount technology (TSSOP package) for compact PCB design. Wide operating temperature range from -40°C to 85°C for industrial and automotive use. Utilizes Microchip's Enhanced Mid-Range PIC architecture with 49 instructions and 16-level hardware stack.
