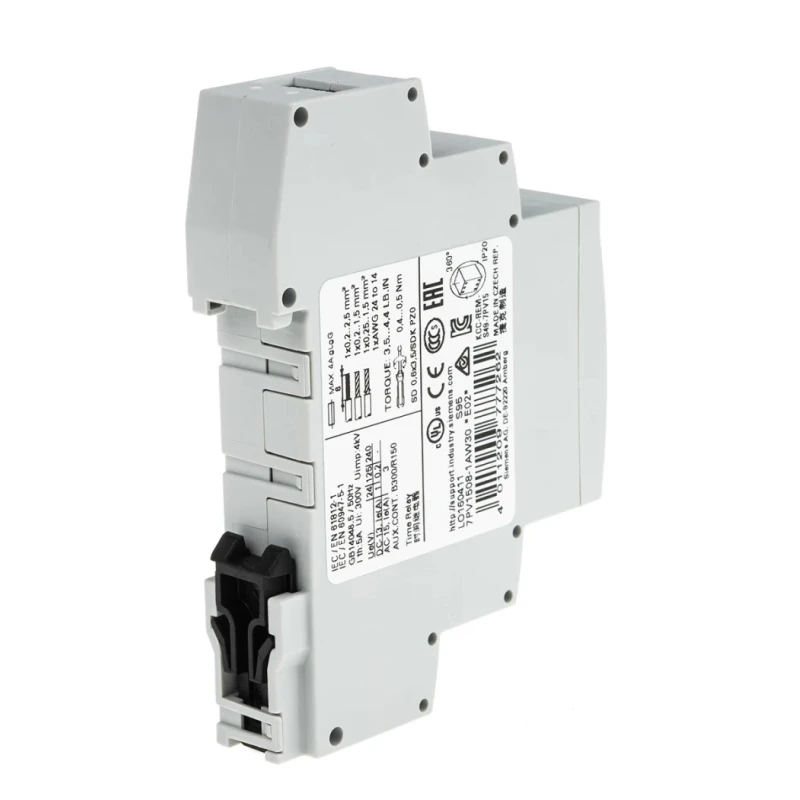

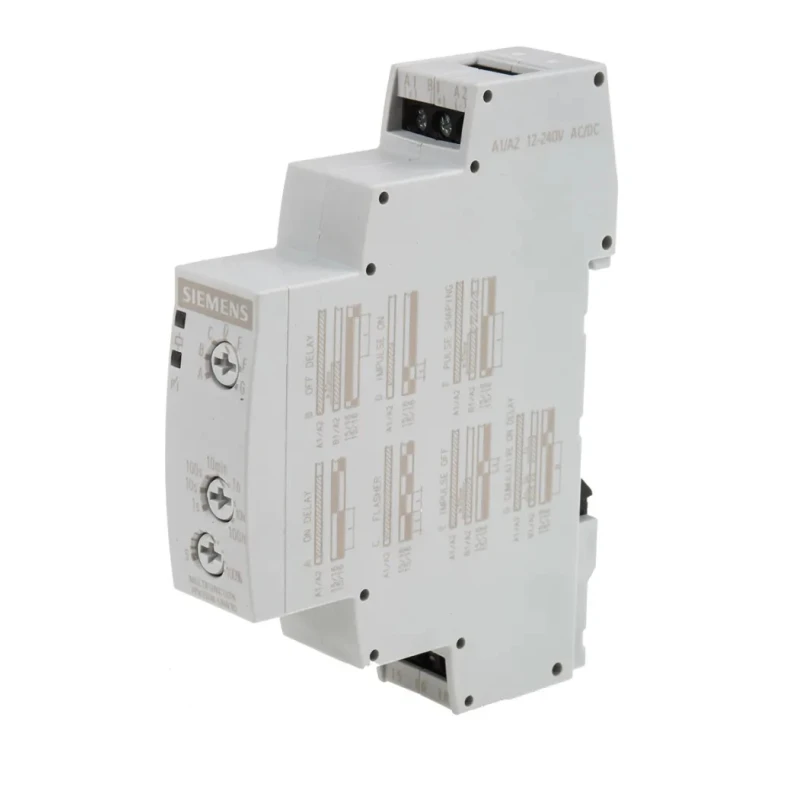

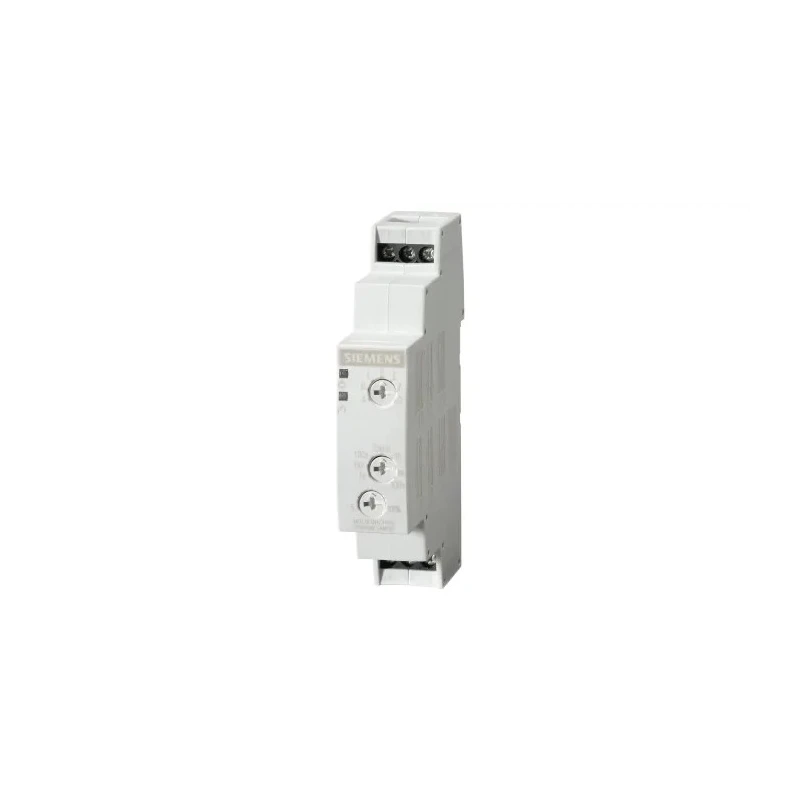

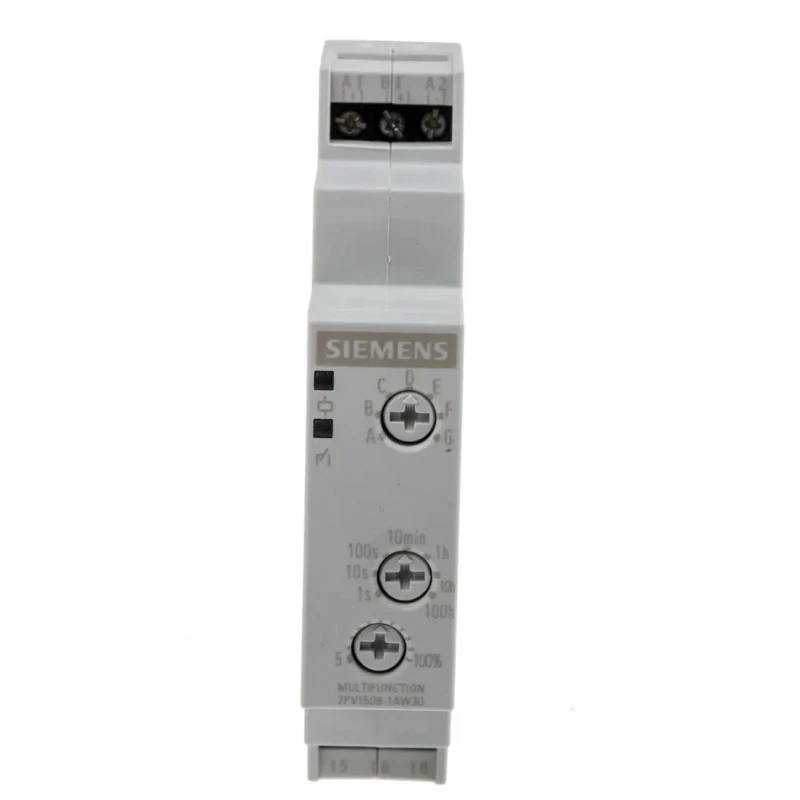

Siemens 7PV15 Series DIN Rail Timer Relay 1-Contact Multifunction 12 to 240 V DC, 240 V AC, Time Range 0.05 s 7PV1508-1AW30

Siemens 7PV1508-1AW30 DIN Rail Timer Relay is a multifunctional timer relay designed for precise time control in industrial automation and electrical systems. It features a Single Pole Double Throw (SPDT) contact configuration and supports supply voltages from 12 to 240 V DC and 240 V AC, ensuring compatibility with a broad range of control circuits.

The relay offers an extensive timing range covering very short durations of 0.05 seconds to extended periods of up to 100 hours, accommodating diverse operational requirements. Its compact size, measuring 90 mm in length, 17.5 mm in width, and 66.7 mm in height, allows for efficient DIN rail mounting and space-saving installation in control panels.

Engineered with screw terminal connections, the device provides secure electrical contacts rated for 3 A current, utilizing durable AgSn02 contact material to ensure long-lasting and reliable switching performance. The protection level of IP20 safeguards the relay from solid objects while suitable for indoor industrial environments.

Operating within a temperature range of -25°C to 55°C, the timer relay maintains consistent performance under varying environmental conditions. Compliance with multiple international standards such as IEC 60664, IEC 61000-4-5, IEC 61000-4-4, and EN 61000-6-2 verifies its robustness, electromagnetic compatibility, and reliability.

Operates with supply voltages from 12 to 240 V DC and 240 V AC ensuring flexible use. Timer range of 0.05 seconds to 100 hours for versatile applications. Compact DIN rail mounting design with screw terminals for easy installation.

3 A contact current rating with AgSn02 contacts for dependable switching. IP20 rated casing suitable for industrial control panels. Wide operating temperature range from -25°C to 55°C guarantees stability. Conforms to IEC and EN standards for international industrial use.

Multifunction timer features for complex automation needs. Suitable for use in automation, process control, HVAC, lighting, and machinery.

This timer relay is essential for tasks requiring precise timing control in automation systems across industrial, manufacturing, HVAC, lighting, and machinery applications. Its multifunction capability and robust design enable reliable scheduling and control of electrical circuits. The DIN rail mounting facilitates easy integration and maintenance within existing control panels.
