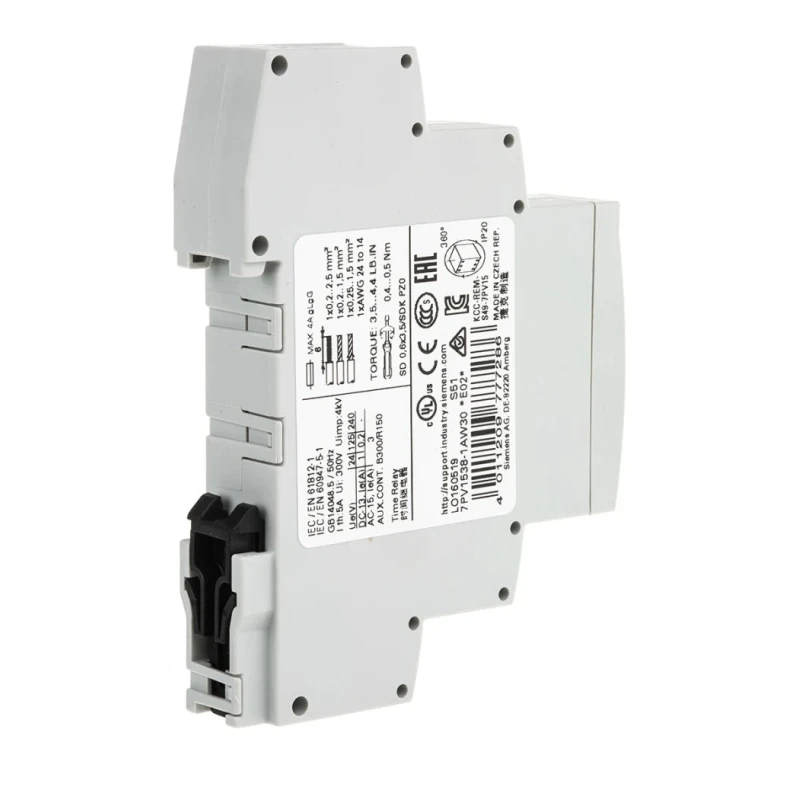

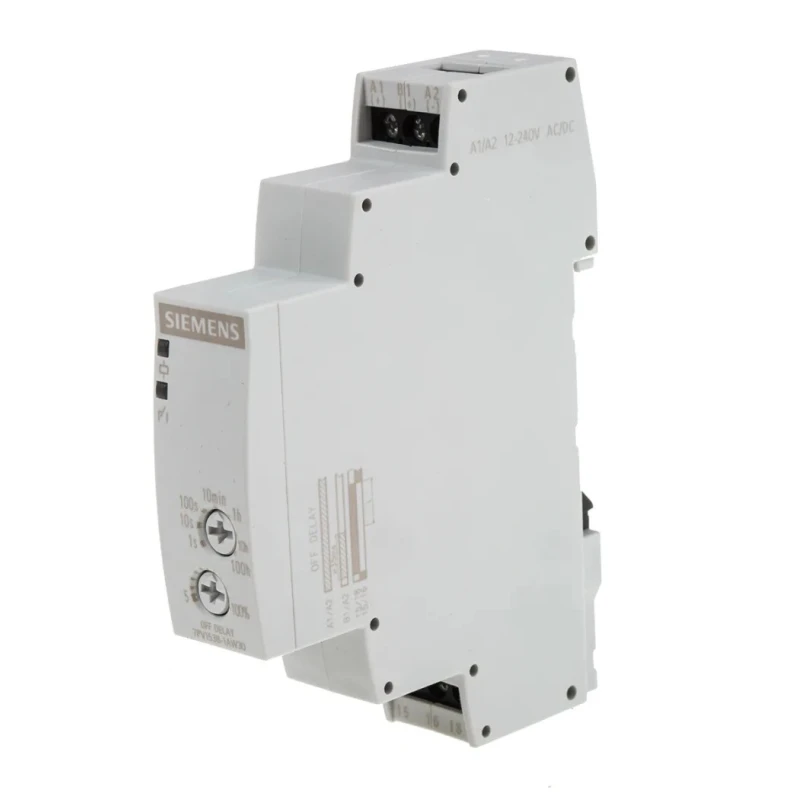

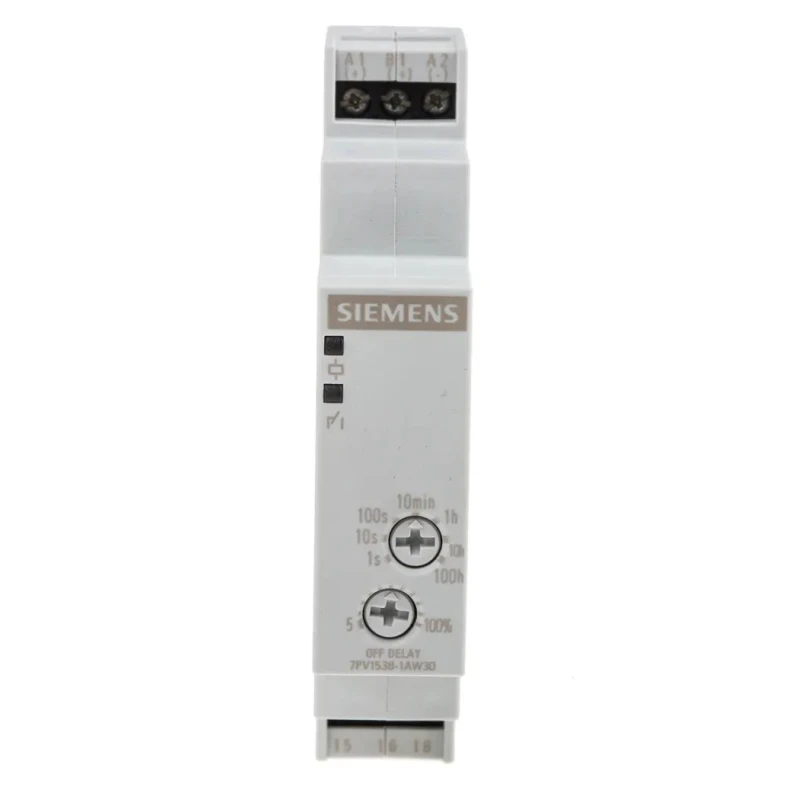

Siemens SIRIUS Series DIN Rail Timer Relay 1-Contact SPDT 12 to 240 V dc 12V ac 240 V ac 5 to 100 h 0.05 to 7PV1538-1AW30
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | Siemens |
| Height | 66.7mm |
| Length | 90mm |
| Model | 7PV1538-1AW30 |
| IP Rating | IP40, IP20 |
| Mode | OFF Delay |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | SIRIUS |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 699-7060Brand: SiemensManufacturers Part No.: 7PV1538-1AW30Distrelec Article No.: 137-53-837 |
| Number of Contacts | 1 |
| Number of Timer Functions | 1 |
| Contact Current | 3A |
| Supply DC Voltage | 12 to 240 V dc |
| Supply AC Voltage | 12, 240V ac |
Key Features
- Operates within time ranges of 5 to 100 hours, 0.05 to 100 seconds, and 3 to 100 minutes.
- Suitable for supply voltages from 12 to 240 V dc and 12V to 240 V ac.
- Features a single SPDT contact with a contact current rating of 3 A.
- Equipped with OFF delay timing mode and screw type terminals for secure connections.
- Compact dimensions of 90 mm length, 17.5 mm width, and 66.7 mm height for DIN rail mounting.
- Meets standards IEC 61000-4-5, IEC 61000-6-3, IEC 61000-4-4, IEC 61000-4-2, IEC 60947-1, and is CE certified.
- IP ratings IP40 and IP20 ensure protection suitable for industrial environments.
- Operating temperature range from -25°C to maximum 55°C.
Product Description
Siemens 7PV1538-1AW30 DIN Rail Timer Relay provides highly accurate timing functions for industrial and automation installations. This timer relay operates with a single SPDT contact configuration and supports a broad range of supply voltages including 12 to 240 V dc and 12 to 240 V ac. It offers versatile timing ranges covering 0.05 seconds to 100 seconds, 3 minutes to 100 minutes, and 5 hours to 100 hours, enabling precision control in various automation processes.
The device employs an OFF delay mode and robust screw terminals for reliable electrical connections. Designed for DIN rail mounting, its slim and compact form factor (90 mm length, 17.5 mm width, 66.7 mm height) ensures space-saving installation in control panels.
The timer relay complies with multiple international standards, including IEC 61000-4-5, IEC 61000-6-3, IEC 61000-4-4, IEC 61000-4-2, IEC 60947-1 and is CE certified, ensuring suitability for demanding industrial environments. It also features IP40 and IP20 ingress protection, safeguarding internal components from dust and environmental factors.
Operating reliably from -25°C to 55°C, this Siemens SIRIUS series relay is ideal for applications such as manufacturing automation, industrial controls, HVAC systems, and process control industries. The Czech Republic-made product reflects Siemens’ commitment to quality and precision engineering.
Operates within time ranges of 5 to 100 hours, 0.05 to 100 seconds, and 3 to 100 minutes. Supports 12 to 240 V dc and 12 to 240 V ac supply voltages. Single SPDT contact rated at 3 A contact current. OFF delay mode operation for timed controls.
Durable screw terminal connections for secure wiring. Compact DIN rail mountable design measuring 90 mm x 17.5 mm x 66.7 mm. Complies with IEC standards and CE marked for safety and performance. IP40 and IP20 ratings for dust protection in industrial environments.
Wide operating temperature range from -25°C up to 55°C. Manufactured in Czech Republic ensuring reliable build quality. Explore the extensive category of Timer Relays at EnvMart for sourcing high-quality automation components designed to optimize industrial processes.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a supply voltage range of 12 to 240 V dc and 12 to 240 V ac.
It has compact dimensions of 90 mm in length, 17.5 mm in width, and 66.7 mm in height, making it suitable for DIN rail mounting.
The timer relay features a single SPDT (Single Pole Double Throw) contact configuration.
The contact current rating for this unit is 3 A.
It operates within timing ranges of 5 to 100 hours, 0.05 to 100 seconds, and 3 to 100 minutes.
The operating temperature range for this model is from -25°C to a maximum of 55°C.
It is equipped with screw type terminals for secure electrical connections.
This unit has an IP rating of IP40 and IP20, providing protection suitable for industrial environments.
It complies with multiple international standards including IEC 61000-4-5, IEC 61000-6-3, IEC 61000-4-4, IEC 61000-4-2, and IEC 60947-1, and is CE certified.
This model is designed for DIN rail mounting, allowing for easy installation in control panels.
It features an OFF delay mode of operation, which is useful for timed control applications.
This product is manufactured in the Czech Republic.
