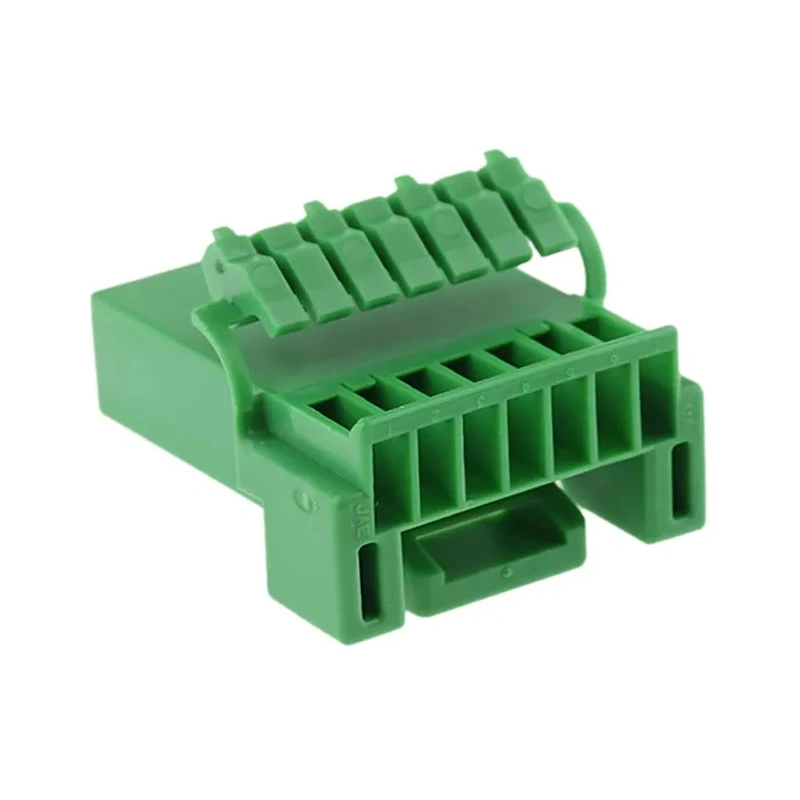

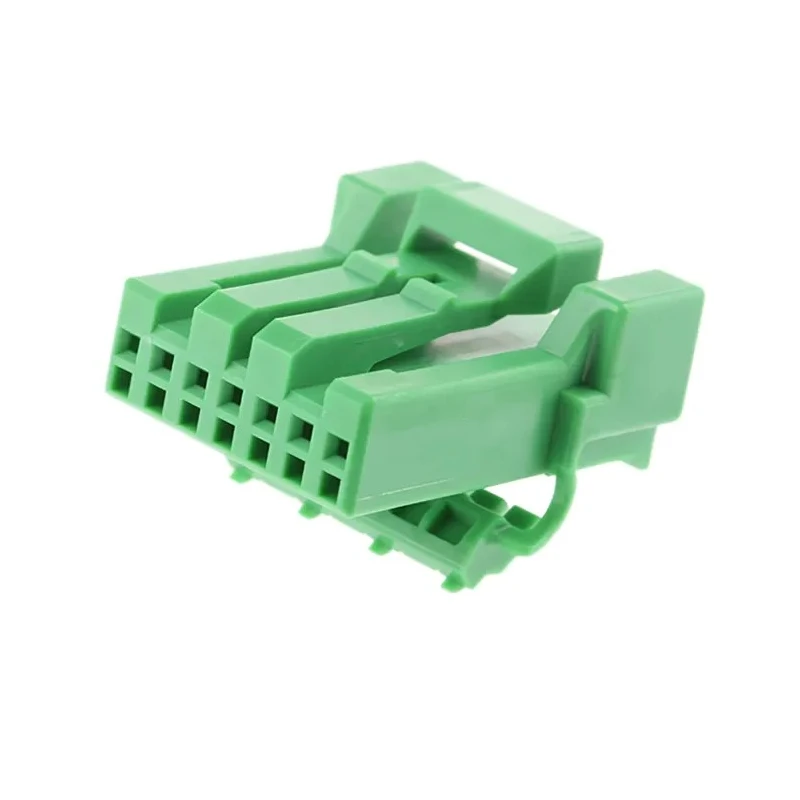

JAE IL-AG5 Automotive Connector Female Yellow Cable 7 Way Crimp Termination IL-AG5-7S-S3C1

Free Delivery in India | Lowest Global Shipping Charges

JAE IL-AG5 Automotive Connector Female Yellow Cable 7 Way Crimp Termination IL-AG5-7S-S3C1



Category Electronic Components, Power & Connectors Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Colour	Yellow
Current	3A
Height	12.8mm
Model	IL-AG5-7S-S3C1
Depth	24.6mm
Width	21.1mm
Gender	Female
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Series	IL-AG5
Termination Type	Crimp
Maximum Operating Temperature	85°C
Sub Type	Socket Housing
Minimum Operating Temperature	-40°C
Number of Rows	1
Pay online using	Or choose to pay later via bank transfer
RS Stock No.	690-9827 Brand: [JAE](https://in.rsdelivers.com/brands/jae)Manufacturers Part No.: IL-AG5-7S-S3C1
Contact Plating	Tin
Number of Contacts	7

Key Features

Designed for automotive instrument panel applications with secure crimp termination.
Polybutylene terephthalate housing material provides mechanical strength and chemical resistance.
Tinned contacts offer corrosion resistance and stable conductivity.
Operating temperature range from -40°C up to 85°C for versatile environmental use.
Compact format with 7 contacts in a single row and a yellow body for easy identification.
Mechanical lock and double lock features ensure secure, vibration-resistant mating.
Supports cable mounting with no cord included, terminating via crimp contacts.
Current rating of 3A suitable for typical automotive electrical loads.

Product Description

The JAE IL-AG5-7S-S3C1 is a high-quality automotive connector specifically designed for female socket housing applications in automotive instrument panels. This yellow cable connector offers 7 crimp termination contacts arranged in a single row, supporting a current rating of 3A with reliable mechanical locking features.

Constructed with durable polybutylene terephthalate housing and tin-plated contacts, it ensures dependable electrical performance and resistance to wear and corrosion. The connector is engineered to operate effectively within a temperature range of -40°C to 85°C, making it suitable for harsh automotive environments.

Its compact dimensions (21.1mm width, 24.6mm depth, and 12.8mm height) facilitate easy integration in tight spaces, while the yellow color enhances identification during assembly and maintenance.

The connector incorporates a double lock mechanism to prevent dislodgement of contacts, improving connection security and durability. Mechanical locking ensures positive mating for consistent electrical contact.

This connector is ideal for use in automotive electrical systems, instrument panels, and similar industrial and manufacturing applications requiring robust, reliable connectors. Designed for automotive instrument panel applications with secure crimp termination.

Polybutylene terephthalate housing material provides mechanical strength and chemical resistance. Tinned contacts offer corrosion resistance and stable conductivity. Operating temperature range from -40°C up to 85°C for versatile environmental use.

Compact format with 7 contacts in a single row and a yellow body for easy identification. Mechanical lock and double lock features ensure secure, vibration-resistant mating. Supports cable mounting with no cord included, terminating via crimp contacts.

Current rating of 3A suitable for typical automotive electrical loads.

This JAE automotive connector is categorized under automotive connectors in the electronics and electricals sector, suitable for demanding industrial and automotive electrical system integration.

For more specialized requirements, alternative products from the JAE IL-AG5 series are available. Explore the EnvMart catalog for quality automotive connector solutions and related components.

Explore more products in our Electronic Components, Power & Connectors category.
