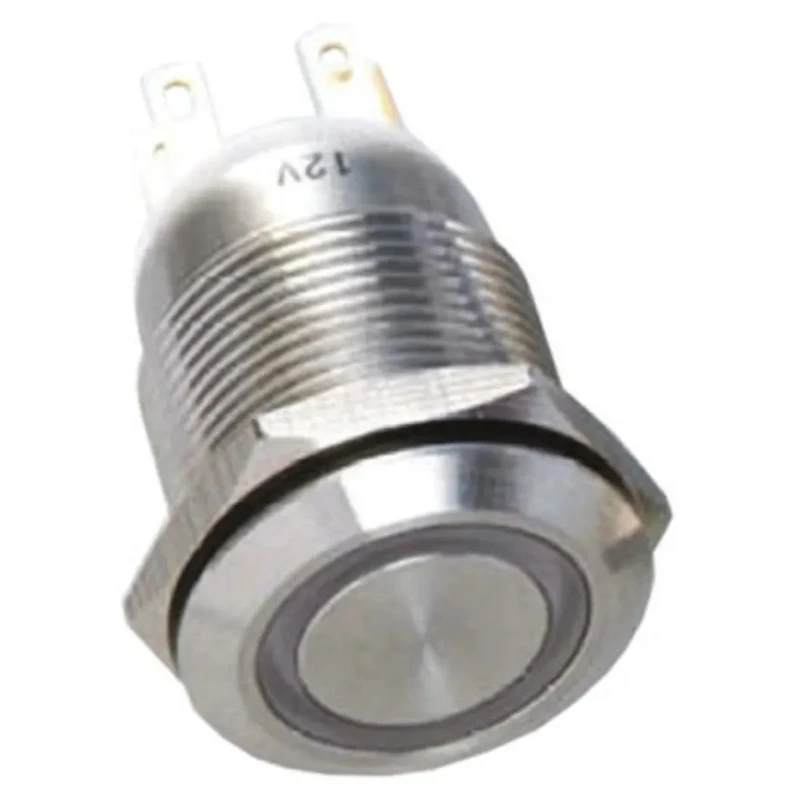

EOZ R Series Illuminated Push Button Switch Momentary Panel Mount DPDT Blue LED IP65 250V ac R19FFSSPAGRB12
Specifications
| Country of Origin | France |
|---|---|
| Brand | EOZ |
| Model | R19FFSSPAGRB12 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Series | R |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Switch Configuration | 1 NO/1 NC |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 19 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 690-3407Brand: EOZManufacturers Part No.: R19FFSSPAGRB12 |
| LED Colour | Blue |
| Switch Operation | Momentary |
| Actuator Colour | Silver |
| Actuator Style | Button |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- The switch operates momentarily with a DPDT contact configuration.
- Features a silver actuator color and blue LED illumination.
- Designed for a 19 mm panel cutout with panel mounting type.
- Protected to IP65 rating, suitable for dust and water jet environments.
- Operates within temperature range -20°C to 55°C maintaining durability.
- Switch current rating is 5 A at 250 V AC ensuring reliable electrical performance.
- Impact resistant to IK09, withstands 10 joules impact for vandal resistance.
- Ideal for industrial use in access control, machinery, kiosks, vending machines, and more.
Product Description
EOZ R19FFSSPAGRB12 R Series Illuminated Push Button Switch is a high-quality momentary switch designed for panel mounting applications at 19 mm cutout size. The switch features a DPDT (Double Pole Double Throw) contact configuration and blue LED illumination to provide clear visual feedback during operation. It operates on 250 V AC with a contact current rating of 5 A, ideal for industrial electrical control systems.
This push button switch includes a silver actuator styled as a button and is sealed to IP65 standards, offering complete protection against dust ingress and low-pressure water jets from any direction, making it suitable for harsh industrial environments. The switch is impact resistant with an IK09 rating, protecting against impacts up to 10 joules, which makes it vandal resistant and durable for public or exposed installations.
Designed for use in applications such as access control systems, factory machinery, ticket machines, kiosks, and vending machines, it delivers long life and reliable operation in demanding industrial and commercial environments. The operating temperature range from -20°C to 55°C ensures consistent performance across various climates.
This product is manufactured in France and complies with RoHS standards, affirming its environmental and safety compliance. The solder terminal type enhances installation reliability.
The switch operates momentarily with DPDT contacts providing flexible circuit design. Blue LED illumination offers visible status indication. Impact resistant to IK09 standard ensuring robust use in vandal-prone settings.
IP65 rating protects against dust and water ingress. Suitable for industrial, automation, and electrical control applications. Rated for 5 A current at 250 V AC with a temperature range of -20°C to 55°C. Explore the EOZ R Series for reliable, high-performance Push Button Switches designed to meet stringent industrial standards on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a DPDT (Double Pole Double Throw) contact configuration, allowing for flexible circuit design.
The maximum operating temperature for this switch is 55°C.
It has an IP65 rating, providing protection against dust ingress and low-pressure water jets from any direction.
The switch has a contact current rating of 5 A at 250 V AC, ensuring reliable electrical performance.
It features solder terminals, enhancing installation reliability.
This switch is designed for a panel cutout size of 19 mm.
The operating temperature range is from -20°C to 55°C, suitable for various climates.
The LED illumination is blue, providing clear visual feedback during operation.
It features a silver actuator styled as a button.
Yes, it is impact resistant with an IK09 rating, capable of withstanding impacts up to 10 joules.
This product is manufactured in France.
It complies with RoHS standards, affirming its environmental and safety compliance.
