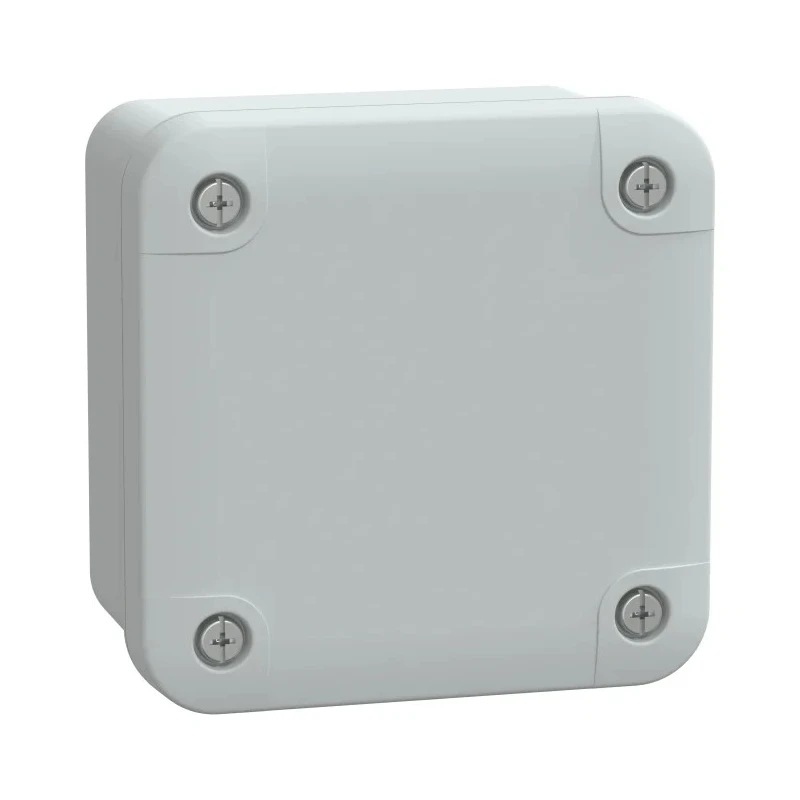

Schneider Electric PanelSeT Series Polycarbonate Wall Box IP66, Grey, 89 mm x 89 mm x 54 mm NSYTBP885

Schneider Electric NSYTBP885 PanelSeT Series Polycarbonate Wall Box is a high-quality industrial enclosure designed for the protection of electrical components in harsh environments. Constructed from grey polycarbonate (RAL 7035), this enclosure meets IP66 standards, providing complete dust tightness and protection against powerful water jets, ensuring reliability in demanding industrial settings.

The enclosure's robust design features an external dimension of 89 mm height, 89 mm width, and 54 mm depth, with internal dimensions slightly smaller for component installation. It offers IK08 mechanical impact resistance, meaning it can withstand a 1.7 kg object dropped from 29.5 cm height without damage, making it suitable for heavy industrial use.

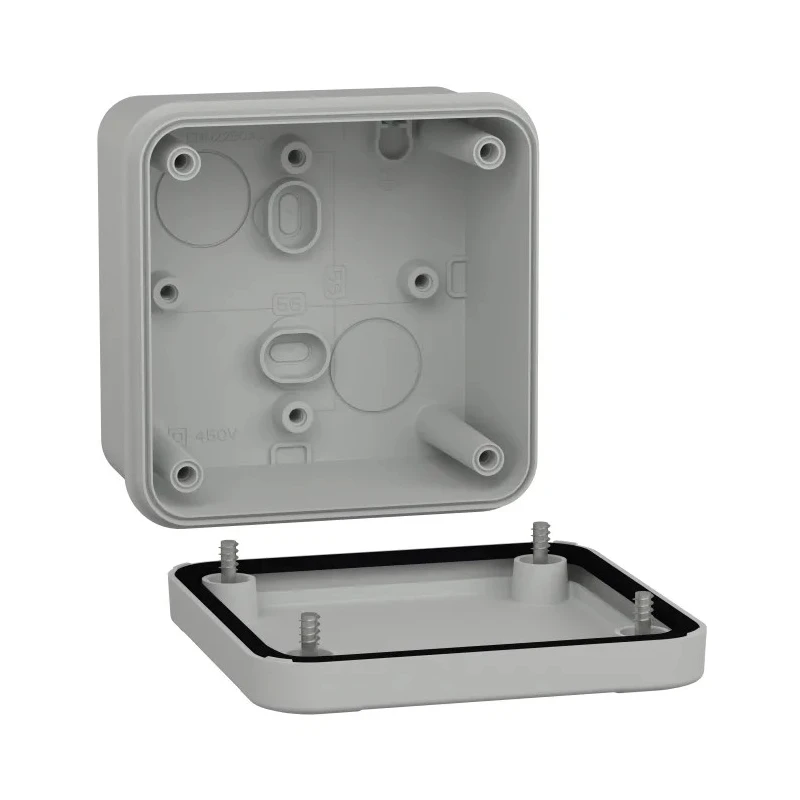

The one-piece moulded body with a low plain front cover allows for secure wiring and component mounting. The cover is removable and secured by captive screws locked with a sealed area captive screw operated by a flat screwdriver, enhancing security against unauthorized access.

This enclosure uses electrical insulation class II polycarbonate material that is halogen-free and self-extinguishing, providing high fire resistance up to 960°C. It features various plugs in the body shell for easy attachment of accessories. Installation versatility is ensured with multiple wall mounting options, including direct mounting via holes on the case base, channels outside the sealed area, and wrap-over clamps.

The Schneider Electric PanelSeT Series is compliant with numerous international standards including IEC 62208, UL 508 A, REACH, RoHS, TÜV, EN 50102, IEC 60695-2-11, IEC 60529, and IEC 62262 (IK rating), underpinning its quality and safety credentials.

The enclosure is dust tight with IP66 rating providing robust environmental protection. Constructed from durable, fire-resistant, halogen-free polycarbonate material. Equipped for multiple mounting methods for flexible installation.

Provides mechanical impact protection conforming to IK08 rating. Includes 1 enclosure body, 1 cover, and 4 cover screws for secure fastening. Suitable for industrial, commercial, and electrical automation applications.

This Schneider Electric panel enclosure is ideal for protecting small components requiring minimal maintenance in industrial and laboratory environments. It is a reliable choice for water treatment, HVAC systems, manufacturing setups, and electrical control installations.
