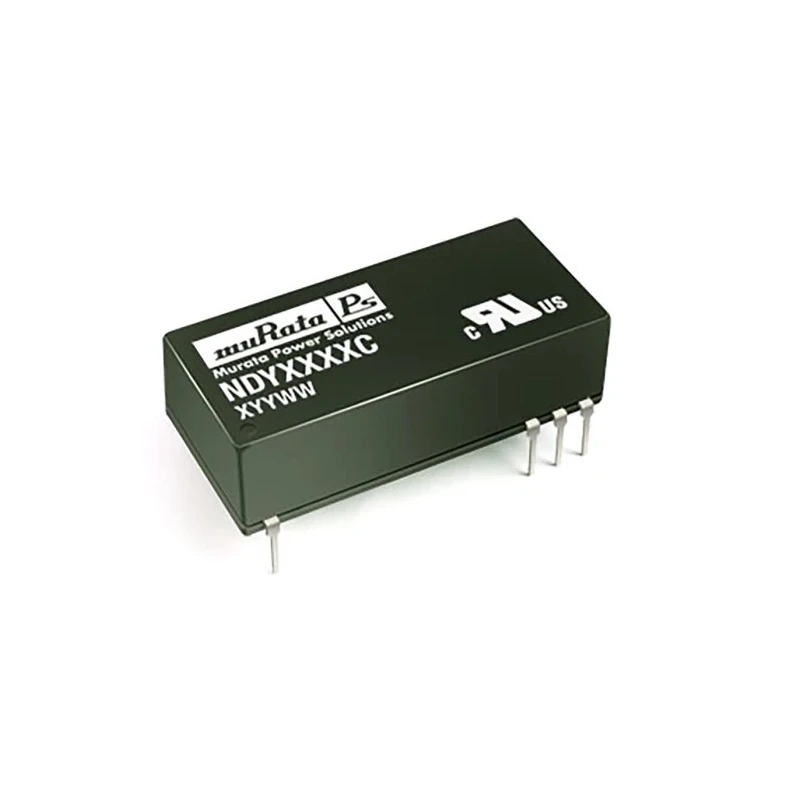

Murata Power Solutions NDY DC/DC Converter 5V Output 3W Power Through Hole 9-18V Input Metal Case NDY1205C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Efficiency | 71% |
| Length | 32.26mm |
| Model | NDY1205C |
| Depth | 7mm |
| Gross Weight | 6.2g |
| Width | 7mm |
| Mount Type | Through Hole |
| Series | NDY |
| Maximum Operating Temperature | 85°C |
| Package Type | Metal case |
| Minimum Operating Temperature | -40°C |
| MTBF | 1928000h |
| Number of outputs | 1 |
| Ripple and Noise | 100mV Pk-Pk |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 18V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 9V |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 689-4909Brand: Murata Power SolutionsManufacturers Part No.: NDY1205C |
| Number of Pins | 8 |
| Output Voltage 1 | 5V dc |
| Output Voltage Adjustment Range | 9/18 V |
| Isolation Voltage | 1kV dc |
| Output Current 2 | 150mA |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact metal case design with through-hole mounting ensures reliable installation.
- Wide input voltage range from 9V to 18V supports versatile power sources.
- Output current capacity of 150mA with ripple noise limited to 100mV peak-to-peak.
- Provides isolation voltage of 1kV dc for safety and noise reduction.
- Operates efficiently at 71% efficiency with an MTBF of 1,928,000 hours for reliability.
- Designed to operate in temperatures ranging from -40°C to 85°C, suitable for demanding environments.
- Package meets RoHS compliance ensuring environmentally friendly construction.
- Standard DIP single output regulator configuration supports wide industrial use cases.
Product Description
Murata Power Solutions NDY1205C is a 3W DIP single output regulated isolated DC-DC converter designed for efficient voltage conversion in industrial and electronic applications. This converter operates within a wide input voltage range of 9V to 18V, providing a regulated 5V dc output with a current capability of 150mA. Its through-hole mount type and compact metal case construction make it suitable for secure PCB assembly and durable performance.
The converter features a 2:1 input voltage ratio and provides isolation voltage up to 1kV dc to enhance safety and minimize electrical noise in the system. With an efficiency of 71% and an impressive MTBF rating of 1,928,000 hours, it ensures long-term reliability and energy-efficient operation. Designed for harsh operating conditions, it supports ambient temperatures from -40°C minimum to 85°C maximum, making it ideal for industrial, laboratory, and manufacturing environments.
Additional features include a ripple and noise specification of 100mV peak-to-peak, metal case packaging with UL 94V-0 fire retardant material, and full encapsulation for protection against environmental factors. The small form factor with dimensions of 32.26mm (length) x 7mm (width) x 7mm (depth) allows compact integration where space constraints exist. The NDY series is fully RoHS compliant and adheres to high production standards.
Compact metal case with through-hole mounting for robust installation. Wide input voltage range of 9V to 18V supports various power supply conditions. Regulated 5V output at 3W power with 150mA output current capacity. High isolation voltage of 1kV dc for enhanced system safety.
Efficient operation with 71% efficiency and extended MTBF. Wide operating temperature range of -40°C to 85°C for harsh environments. Fully encapsulated design with flame retardant packaging material. Small size suitable for space-limited installations.
RoHS compliant ensuring environmental standards are met.
This DC/DC converter from Murata Power Solutions is ideal for use in industrial machines, instrumentation, communication equipment, and power supply systems requiring reliable isolated voltage conversion. Its robust design makes it suitable for laboratory and manufacturing applications as well. The product is a dependable solution for improving power efficiency and system safety.
Discover more electronic component products from Murata Power Solutions and explore the full range of DC/DC converters at EnvMart for your industrial and commercial power needs.
Explore more products in our Power Supplies & Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The NDY1205C operates within a wide input voltage range of 9V to 18V.
It provides an output current capacity of 150mA.
This model operates with an efficiency of 71%.
The dimensions are 32.26mm in length, 7mm in width, and 7mm in depth.
It features a through-hole mounting type for secure installation.
This model provides an isolation voltage of 1kV dc, enhancing safety and reducing noise.
The ripple and noise are limited to 100mV peak-to-peak.
The maximum operating temperature is 85°C.
It can operate in temperatures as low as -40°C.
The maximum output power is 3W.
Yes, this model is fully RoHS compliant, ensuring it meets environmental standards.
It is suitable for industrial machines, instrumentation, communication equipment, and power supply systems requiring isolated voltage conversion.
