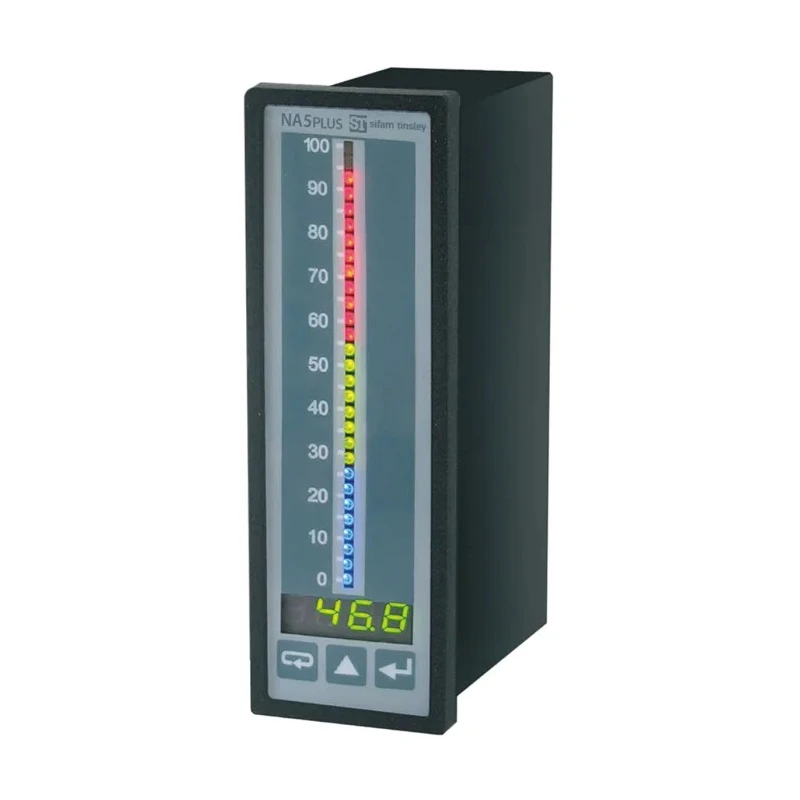

Sifam Tinsley NA5 LED Digital Panel Multifunction Meter for Temperature, Voltage, Resistance, and Current NA5PLUS-MGU14200U0

Free Delivery in India | Lowest Global Shipping Charges

Sifam Tinsley NA5 LED Digital Panel Multifunction Meter for Temperature, Voltage, Resistance, and Current NA5PLUS-MGU14200U0

Name: Sifam Tinsley NA5 LED Digital Panel Multifunction Meter for Temperature, Voltage, Resistance, and Current NA5PLUS-MGU14200U0
Brand: Sifam Tinsley
SKU: 157537
Price: 621.82 USD
Availability: InStock



Category Digital Panel Multifunction Meter Brand Sifam Tinsley Condition New

Specifications

Country of Origin	India
Display Type	LED
Brand	Sifam Tinsley
Model	NA5PLUS-MGU14200U0
Depth	100mm
Series	NA5
Maximum Operating Temperature	55°C
Meter Type	Digital
Number Of Digits	4
Minimum Operating Temperature	-10°C
Digit height	7mm
Properties Measured	Temperature, Voltage, Resistance, Current
Cutout Height	137.5mm
Cutout Width	44mm
Sifam Tinsley NA3 LED Digital Panel Multi-Function Meter, 22.2mm x 92mmBrand	Sifam Tinsley

Key Features

Equipped with a 4-digit LED display for clear numeric readout.
Measures multiple parameters including temperature, voltage, resistance, and current.
Features a cutout size of 137.5 mm height by 44 mm width for panel mounting.
Digit height of 7 mm ensures visibility in industrial environments.
Operating temperature range from -10°C to 55°C suitable for varied conditions.
Includes up to 8 programmable alarm outputs for process control.
Supports communication via RS485/Modbus interfaces for SCADA integration.
Programmable 21-point rescaling and bargraph magnifier for versatile display adjustments.

Product Description

Sifam Tinsley NA5PLUS-MGU14200U0 is an advanced LED digital panel multifunction meter designed for industrial and process control applications. It accurately measures temperature using multiple sensor types, voltage, resistance, and current with high precision and reliability. Its 4-digit LED display with 7 mm digit height ensures clear readability even in challenging environments.

The meter features a cutout dimension of 137.5 mm in height and 44 mm in width, with a depth of 100 mm allowing easy integration into existing panels. Operating effectively in temperatures from -10°C to 55°C, this device accommodates industrial ambient conditions. It includes programming options such as 21-point rescaling, bargraph magnifier, and supports up to 8 alarm outputs for enhanced monitoring and alarming capabilities.

Additional functionalities include logging of measured signals up to 800 samples, mathematical operations like doubling or square root calculations, and alarm triggers based on the signal's rate of change. Communication with SCADA systems is supported through RS485/Modbus interfaces, making it suitable for complex industrial automation.

The product complies with EN 61000-6-2, EN 61000-6-4, and EN 61010-1 standards ensuring conformity to electrical safety, electromagnetic compatibility, and operational performance requirements.

Equipped with a 4-digit LED display for clear numeric readout. Measures temperature, voltage, resistance, and current simultaneously. Programmable alarm outputs enhance process safety and control. Supports SCADA communication for integrated automation systems.

Logging of measurement data for accurate process tracking. Resilient construction suited for industrial temperature ranges. Conforms to recognized safety and EMC standards. Compact design with standardized panel cutout dimensions.

Mathematical arithmetical functions improve data processing flexibility. Multi-colored bargraph with programmable color switching aids visual monitoring.

Ideal for industrial automation, process control, electrical measurement, laboratory, and manufacturing applications. For more detailed variants and related products, explore the Digital Panel Multifunction Meter category on EnvMart.
