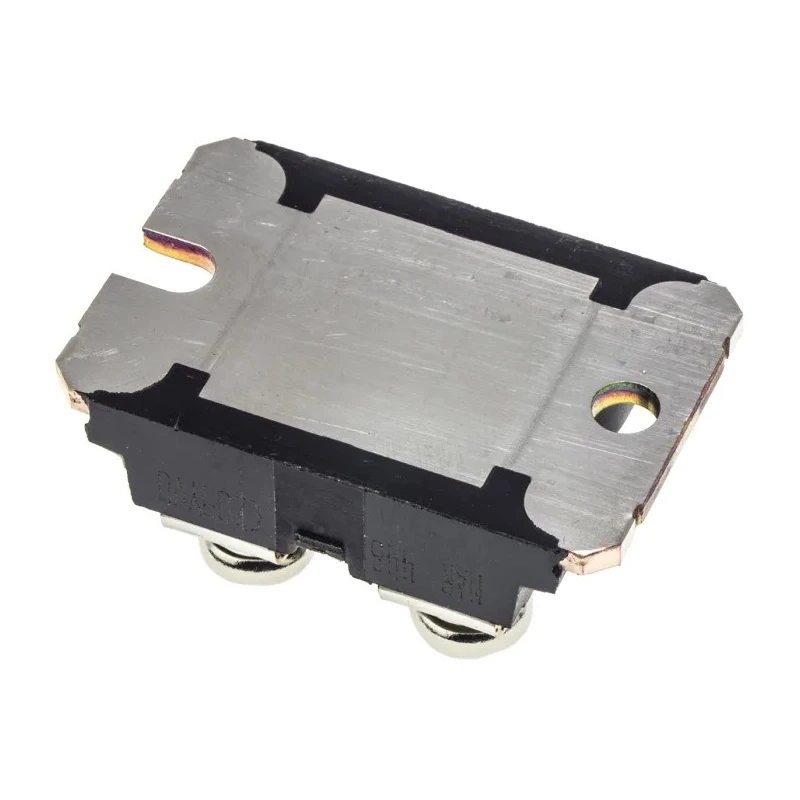

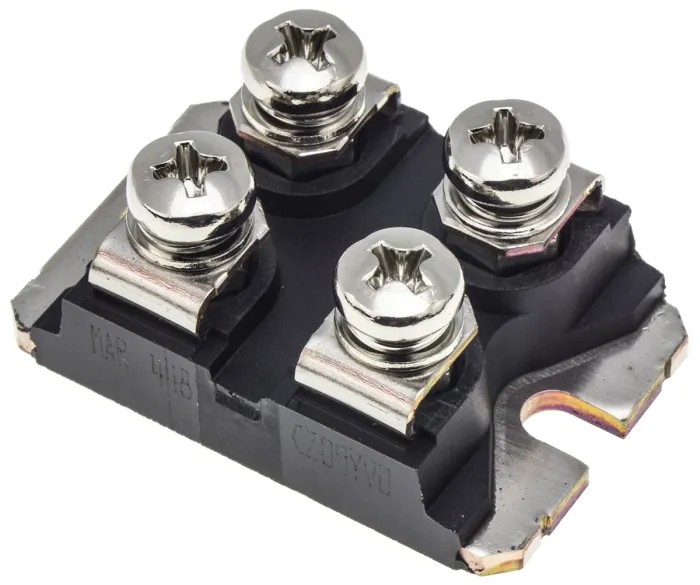

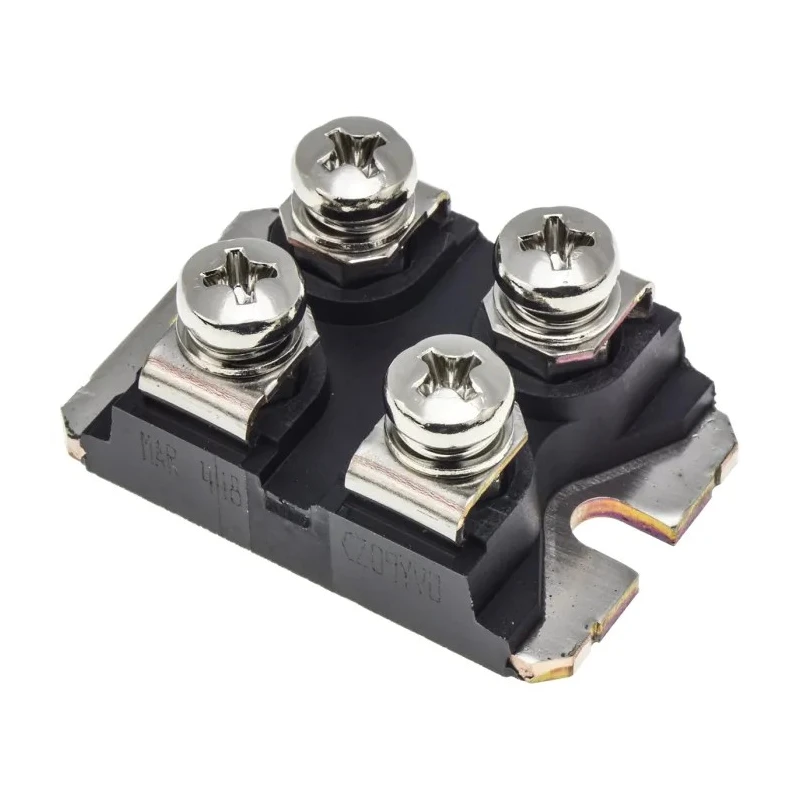

STMicroelectronics 1200 V 120 A Switching Diode Panel Mount 4-Pin ISOTOP STTH12012TV1
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 4mm |
| Brand | STMicroelectronics |
| Height | 9.1mm |
| Length | 38.2mm |
| Model | STTH12012TV1 |
| Width | 25.5mm |
| Mount Type | Panel |
| Series | STTH12012TV |
| Maximum Operating Temperature | 150°C |
| Package Type | ISOTOP |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Maximum Continuous Forward Current If | 120A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Isolated |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 30μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 420A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 125ns |
Key Features
- Capable of maximum continuous forward current of 120 A.
- Peak reverse repetitive voltage rating of 1200 V.
- Peak non-repetitive forward surge current up to 420 A.
- Fast peak reverse recovery time of 125 ns for efficient switching.
- Operates reliably from -65°C to 150°C temperature range.
- Maximum forward voltage of 1.25 V ensures low conduction losses.
- Isolated diode configuration in a compact 4-pin ISOTOP package.
- RoHS compliant and suitable for power rectification applications.
Product Description
STMicroelectronics STTH12012TV1 is a high-power switching diode designed for industrial and electronic applications requiring reliable rectification and switching performance. Rated for a maximum continuous forward current of 120 A and peak reverse voltage of 1200 V, it supports demanding power conditions in a robust 4-pin ISOTOP package suitable for panel mounting.
This diode provides excellent surge current capability with a peak non-repetitive forward surge current of 420 A, making it suitable for transient power events. The fast peak reverse recovery time of 125 ns enhances switching efficiency, reducing power loss and heat generation in high-speed circuits.
The device operates over a wide temperature range from -65°C to 150°C, ensuring reliability even in harsh environments. The maximum forward voltage drop of 1.25 V contributes to energy-efficient operation in power supplies, inverters, and other rectifier circuits.
The compact isolated diode configuration, combined with its adherence to RoHS standards, makes the STTH12012TV1 a suitable component for use in power electronics, industrial machinery, automotive electronics (non-automotive standard certified), and consumer electronics requiring robust and efficient diode solutions.
Capable of maximum continuous forward current of 120 A. Peak reverse repetitive voltage rating of 1200 V. Peak non-repetitive forward surge current up to 420 A. Fast peak reverse recovery time of 125 ns for efficient switching.
Operates reliably from -65°C to 150°C temperature range. Maximum forward voltage of 1.25 V ensures low conduction losses. Isolated diode configuration in a compact 4-pin ISOTOP package. RoHS compliant and suitable for power rectification applications.
Dimensions: Length 38.2 mm, Width 25.5 mm, Height 9.1 mm. Peak reverse current limited to 30 µA to minimize leakage. Typical applications include power rectifiers, inverters, power supplies, and industrial electronic systems requiring fast and reliable diode switching performance.
Explore more semiconductor components in the STMicroelectronics range with EnvMart for advanced power electronics solutions.
Explore more products in our Semiconductor Diodes category.
