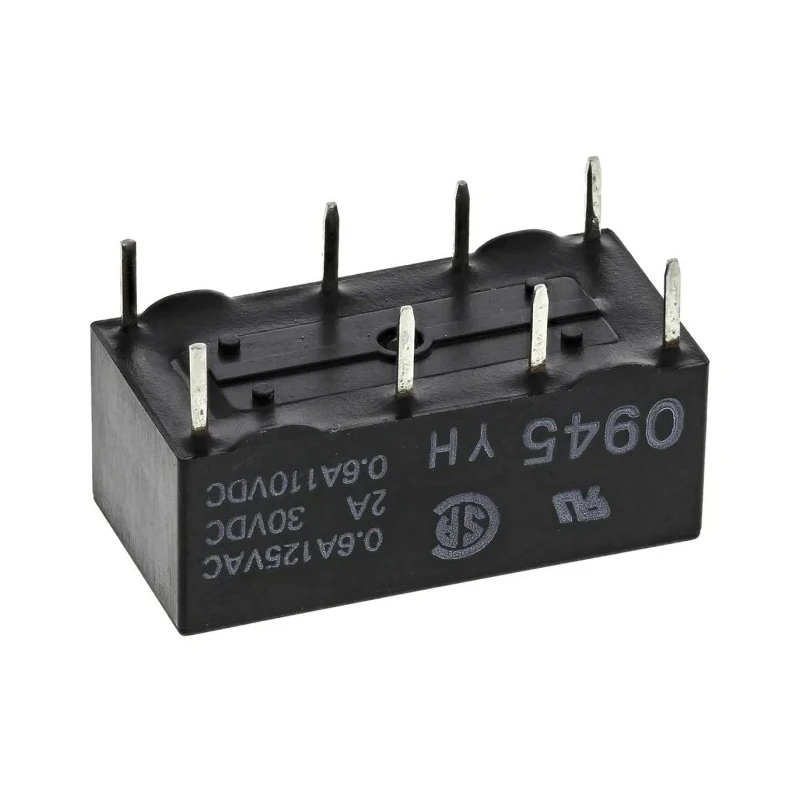

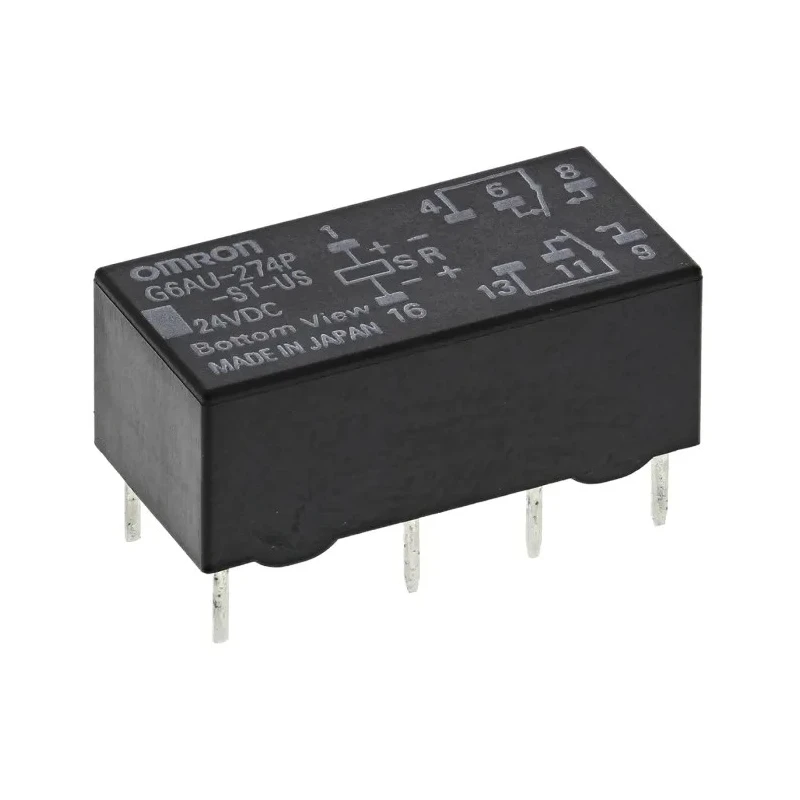

Omron Signal Relay, DPDT Contact Configuration, 24V DC Coil Voltage, 2A Switching Current, 60W G6AU-274P-ST-US 24DC

Omron G6AU-274P-ST-US 24DC Signal Relay is designed for efficient signal switching in various electrical and electronic applications. This relay features a double pole double throw (DPDT) contact configuration, providing reliable contact switching in circuits requiring up to 2 amperes of current. It is equipped with a 24V DC coil, making it suitable for low voltage DC control systems.

The relay is designed for PCB mounting, with solder terminals allowing secure and straightforward installation on printed circuit boards. Its compact dimensions of 20.2 mm length, 10.1 mm width, and 8.4 mm height allow it to fit well in tight assembly spaces.

Constructed with gold-plated contacts, this relay ensures minimal contact resistance of 50 milliohms and excellent conductivity, enhancing both performance and longevity. Its coil resistance measures 5760 ohms with a coil power consumption of 100 mW, enabling efficient operation with reduced energy loss.

Operating under ambient temperatures ranging from -40°C to 70°C, this relay is well suited for industrial, telecommunications, automation, and control equipment that require durable performance even in challenging environments. The coil voltage and contact ratings (switching AC voltage up to 250V AC and DC voltage up to 220V DC) provide versatile application possibilities.

Omron's G6AU series, including this model, is fully sealed to protect internal components from dust and moisture, ensuring reliable operation. This relay complies with RoHS standards and carries safety certifications such as UL and CSA, attesting to its quality and safety for industrial use.

This signal relay features a double pole double throw (DPDT) contact configuration. It has a coil voltage rating of 24 volts DC for reliable switching operations. The relay supports a switching current up to 2 amperes and switching power of 60 watts.

The device is suitable for PCB mounting with solder terminals for easy installation. Operating temperature ranges from -40°C to 70°C for harsh environment usage. Contact material is gold plated to ensure low contact resistance and durability.

The relay body is compact with dimensions 20.2 mm length, 10.1 mm width, and 8.4 mm height. It has UL and CSA approvals and meets RoHS compliance standards.

This relay is commonly employed in industrial automation, telecommunications systems, electrical control panels, and instrumentation equipment. It facilitates efficient switching of signals and small loads, helping to enhance control system reliability and performance. Engineers and system integrators can depend on Omron's proven relay technology for durable and accurate signal management.
