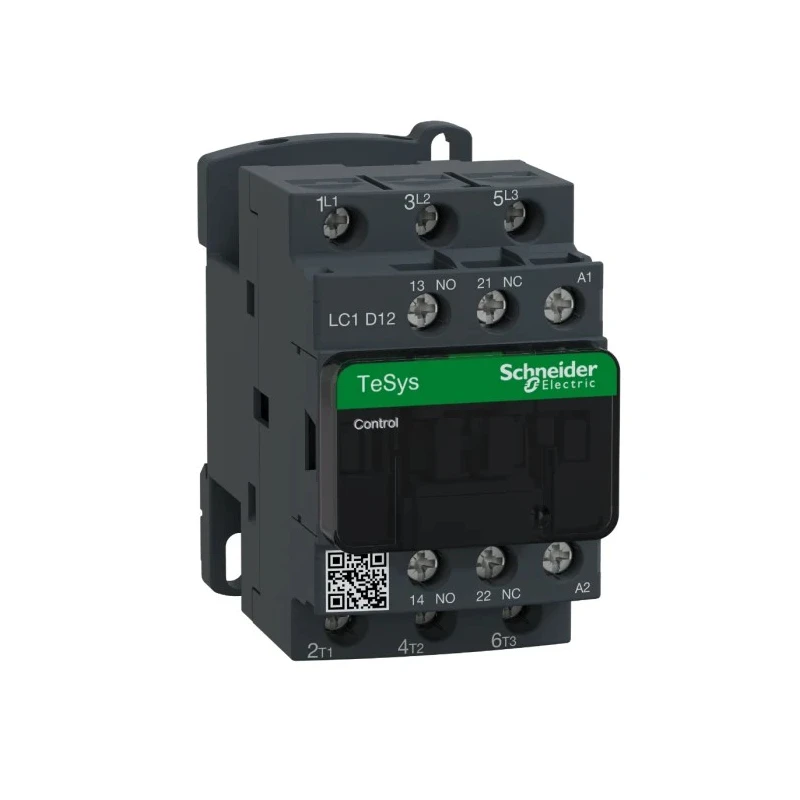

Schneider Electric Motor Control Contactor LC1D12Q7, 400V AC Coil, 3-Pole, 12 A, 0.5 HP 690V AC, 3 NO, Screw Terminal
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 77mm |
| Model | LC1D12Q7 |
| Depth | 86mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Power Rating | 0.5HP |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, CSA |
| Contact Voltage | 690V ac |
| Coil Voltage | 400V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 120A |
| Control Circuit Voltage Uc | 690V ac |
| Contactor Application | Motor Control |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for motor control and resistive load applications.
- Features 3 poles with a contact current rating of 12 A.
- Operates at 690V AC with a power rating of 0.5 HP.
- Includes 3 normally open (NO) contacts for efficient switching.
- Mounts easily on DIN Rail with screw terminal connections.
- Supports auxiliary contacts configured as 1 NO and 1 NC.
- Rated for operational current up to 120 A under control circuit voltage of 690V AC.
- Durable construction with UL and CSA approvals.
Product Description
Schneider Electric LC1D12Q7 motor control contactor is engineered for seamless operation in automation and control systems requiring robust switching capabilities at medium voltages and currents. The contactor uses a 400V AC coil to energize and control three poles rated at 12 A with a power rating of 0.5 HP at 690V AC, making it suitable for a wide range of resistive loads and motor control applications.
This device comes with three normally open contacts and two auxiliary contacts configured as one normally open and one normally closed, facilitating versatile integration with control circuitry. The contactor mounts on standard DIN rails and features screw-type terminals with international and North American markings ensuring secure wiring and easy installation.
The LC1D12Q7 is rated for operation from -40°C to 60°C ambient temperatures and complies with UL and CSA standards, guaranteeing performance and safety in demanding industrial environments. Its design supports operational currents up to 120 A and control circuit voltages up to 690V AC.
The contactor's compact dimensions (77mm length, 45mm width, and 86mm depth) make it adaptable for various panel sizes without compromising durability or functionality. It incorporates IP20 finger-safe terminals for enhanced operator safety.
Designed for motor control and resistive load applications. Three poles with 12 A contact current and 0.5 HP power rating at 690V AC. 400V AC coil voltage for optimal switching efficiency. Includes 3 normally open contacts and 2 auxiliary contacts (1 NO/1 NC).
Screw terminal connections with international markings. Operational current: 120 A; control circuit voltage: 690V AC. Operating temperature range: -40°C to 60°C. Compliance with UL and CSA standards ensuring quality and safety.
Compact DIN rail mounting design with IP20 finger-safe terminals.
This Schneider Electric LC1D12Q7 contactor is ideal for industrial, commercial, manufacturing, HVAC, and water treatment applications requiring reliable motor control. Its durable build and compliance with recognized standards make it a dependable component in electrical automation setups.
Explore more Schneider Electric Contactors and automation solutions at EnvMart for enhanced system reliability and efficiency.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 12 A.
It has a power rating of 0.5 HP at 690V AC.
The coil voltage for this unit is 400V AC.
This contactor features three poles.
It uses screw terminals with IP20 finger-safe design and international markings.
The operational current rating is up to 120 A under a control circuit voltage of 690V AC.
The operating temperature range is from -40°C to 60°C.
It is designed for motor control and resistive load applications.
The dimensions are 77mm in length, 45mm in width, and 86mm in depth.
Yes, it complies with UL and CSA standards.
It includes two auxiliary contacts configured as one normally open and one normally closed (1 NO/1 NC).
This model mounts easily on DIN rails.
