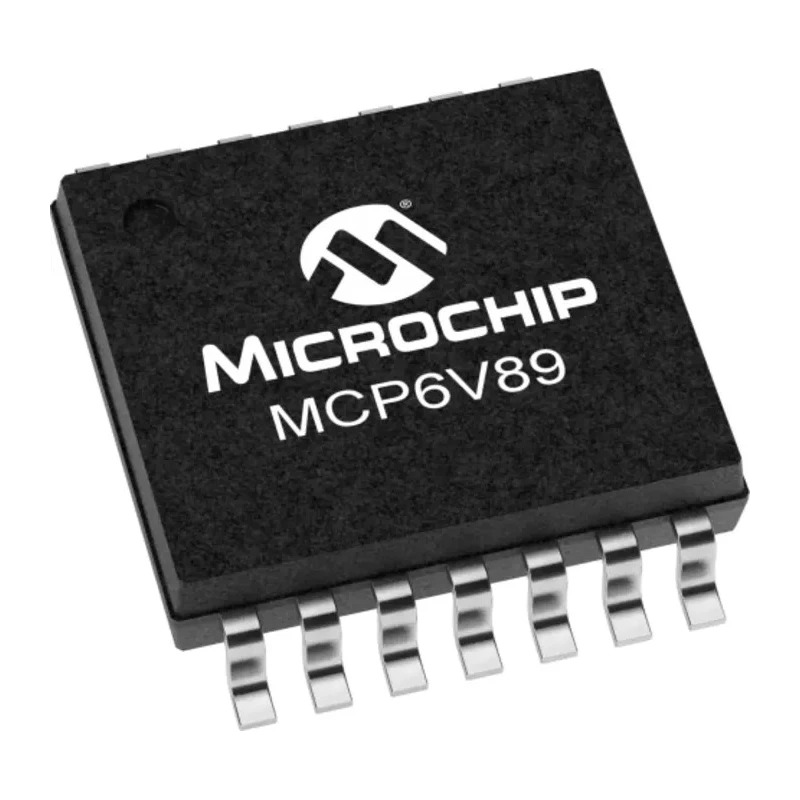

Microchip Operational Amplifier, 5 MHz Gain Bandwidth, 14-Pin TSSOP Package, 2.2V-5.5V Supply MCP6V89-E/ST

Microchip MCP6V89-E/ST is a high-performance operational amplifier designed for precision electronic applications. It combines a zero-drift architecture yielding an extremely low input offset voltage of 25 µV and minimal offset drift of 150 nV/°C for stable and accurate amplification.

This operational amplifier offers a gain bandwidth product (GBP) of 5 MHz and a slew rate of 4 V/µs, providing responsive and reliable signal processing capabilities in demanding environments.

Operating from a single supply voltage that can vary between 2.2 V minimum and 5.5 V maximum, the MCP6V89-E/ST is suitable for low-voltage battery-powered and industrial-level systems. The device exhibits a low quiescent current ensuring energy efficiency without compromising performance.

Its 14-pin TSSOP package supports surface mounting on PCBs with a compact footprint measuring 5.1 mm in length, 6.4 mm in width, and 1.2 mm in height, enabling space-constrained designs. With a temperature operating range from -40°C to 125°C, it is ideal for harsh environmental conditions.

The amplifier features enhanced EMI rejection capabilities to maintain signal integrity and reduce noise interference in complex electronic circuits. It can deliver up to 30 mA output current enabling it to drive a variety of loads without distortion.

Key parameters such as input bias current of 50 pA and input offset current of 400 pA contribute to its high precision, making it suitable for industrial instrumentation, medical devices, automotive electronics, and other applications requiring stable and accurate amplification.

Zero-Drift Architecture for Low Offset and Drift. 5 MHz Gain Bandwidth Product and 4 V/µs Slew Rate. Supply Voltage Compatibility: 2.2 V to 5.5 V. 14-Pin TSSOP Surface Mount Package. Operating Temperature Range from -40°C to 125°C.

Enhanced EMI Rejection for Noise Sensitive Applications. Maximum Output Current of 30 mA. Low Input Bias Current of 50 pA. High Precision with 25 µV Input Offset Voltage.

This Microchip operational amplifier is a reliable choice for a wide array of industrial, commercial, and instrumentation applications requiring stable, low noise, and high precision signal amplification. Its robust performance parameters and compact form factor facilitate integration into advanced electronic designs.
