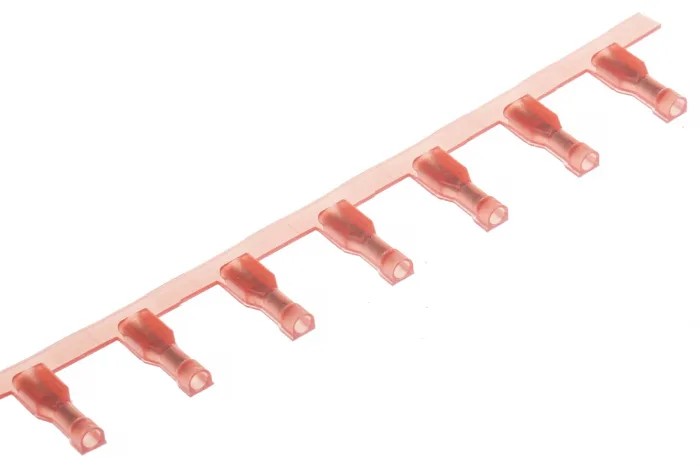

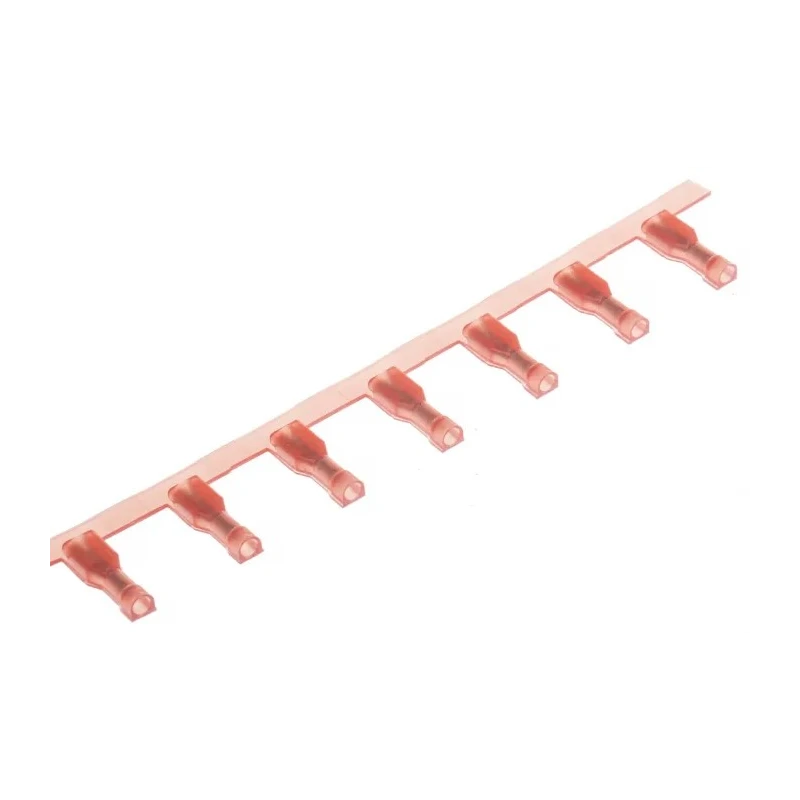

TE Connectivity Ultra-Fast .110 Red Insulated Female Spade Connector Crimp 2.79 x 0.51 mm Tab Size 22 AWG to 18 2-520083-2
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Orientation | Straight |
| Gender | Female |
| Insulation | Insulated |
| Overall Length | 0.735in |
| Contact Material | Brass |
| Series | Ultra-Fast .110 |
| Termination Type | Crimp |
| Insulation Material | Polyamide 66 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Tab Width | 2.8mm |
| Tab Thickness | 0.51mm |
| Tab Size | 2.79 x 0.51 mm |
Key Features
- Female spade connector with insulated red housing for safety.
- Crimp termination type suitable for quick and secure wire connection.
- Compatible with wire sizes from 22 AWG to 18 AWG.
- Tab dimensions of 2.79 mm length by 0.51 mm thickness ensure standard mating.
- Constructed with brass contact material featuring tin plating for corrosion resistance.
- Overall connector length of 0.735 inches for compact installation.
- Polyamide 66 insulation material provides electrical isolation and durability.
- Straight contact orientation for straightforward wiring applications.
Product Description
TE Connectivity 2-520083-2 Ultra-Fast .110 Red Insulated Female Spade Connector is a high-quality crimp terminal designed for efficient electrical connections in electronic and industrial applications. Compatible with wire sizes ranging from 22 AWG to 18 AWG, this connector features a compact tab dimension of 2.79 x 0.51 mm and a straight orientation to facilitate easy installation and reliable performance.
The connector body is molded from polyamide 66, a durable insulation material that offers excellent electrical isolation and mechanical strength according to UL 94 V-2 standards. The contact is fabricated from brass with tin plating to prevent corrosion and ensure long-lasting conductivity in harsh environments.
This Ultra-Fast .110 series connector is engineered to provide a fully insulated crimp solution that minimizes the risk of electrical shorts and shocks by encapsulating the tab and receptacle completely. Its design supports 600V applications, making it suitable for various industrial, electronic, HVAC, manufacturing, and power distribution use cases.
The 0.735-inch overall length and compact form factor allow this spade connector to fit into confined spaces while enabling quick assembly in mass production or maintenance tasks. Female spade connector with insulated red housing for safety.
Crimp termination type suitable for quick and secure wire connection. Compatible with wire sizes from 22 AWG to 18 AWG. Tab dimensions of 2.79 x 0.51 mm ensure proper mating with standard tabs. Brass contact material with tin plating for corrosion resistance.
Polyamide 66 insulation providing mechanical strength and electrical isolation. Straight orientation for ease of wiring. Designed for industrial and electronic component applications requiring reliability. Environmentally resistant and robust, this connector supports reliable operation in commercial and industrial electrical installations.
Explore EnvMart's Electronics & Electricals section for more Spade Connectors and related wire terminal products to suit your installation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 22 AWG to 18 AWG, accommodating a minimum wire size of 0.3 mm² and a maximum wire size of 0.8 mm².
The tab dimensions are 2.79 mm in length and 0.51 mm in thickness, ensuring proper mating with standard tabs.
The overall length of this spade connector is 0.735 inches, allowing for compact installation in confined spaces.
The contact is made from brass and features tin plating, which helps prevent corrosion and ensures conductivity.
It is constructed with polyamide 66 insulation material, providing electrical isolation and mechanical strength.
This connector uses a crimp termination type, suitable for quick and secure wire connections.
The connector features a straight orientation, which facilitates easy installation and wiring applications.
The insulation on this spade connector is red, providing a visual indication for safety.
This model is part of the Ultra-Fast .110 series, designed for efficient electrical connections in various applications.
It is suitable for industrial, electronic, HVAC, manufacturing, and power distribution applications, supporting reliable operation in these environments.
The connector is designed to be environmentally resistant, ensuring reliable performance in commercial and industrial electrical installations.
The country of origin for this connector is the United States.
