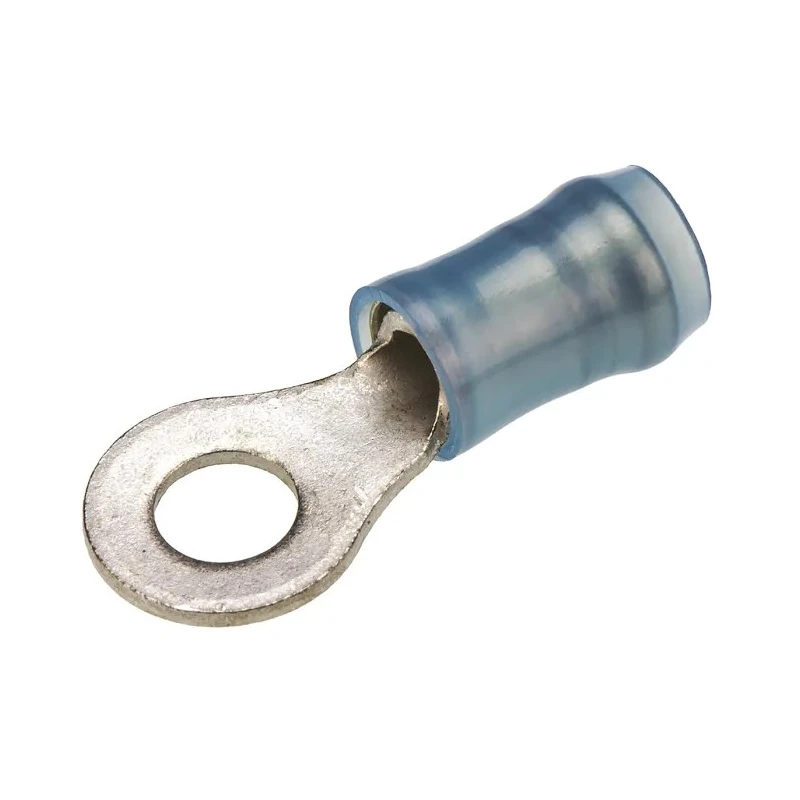

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 16 AWG 14 AWG Wire Size Blue 320565
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Model | 320565 |
| Insulation | Insulated |
| Overall Length | 21.82mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 8.71mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Features a high conductivity copper body for reliable electrical contact.
- Insulated with durable nylon sleeve for wire protection and identification.
- Provides improved wire insulation support with copper sleeve inside the barrel.
- Includes serrations in wire barrel for maximum contact and tensile strength after crimping.
- Color-coded blue sleeve enables easy wire size and tooling identification.
- Funnelled wire entry design allows fast and easy wire insertion.
- Suitable for industrial, aerospace, automotive, and control panel applications.
- Compatible with M4 stud sizes providing versatility in electrical assemblies.
Product Description
TE Connectivity 320565 PIDG Insulated Ring Terminal offers a precision engineering solution for secure, reliable electrical connections. This ring terminal features a copper body with tin plating, ensuring excellent conductivity and corrosion resistance. The nylon insulation sleeve in blue provides easy wire size identification and protects the wire from environmental damage.
Designed with a funnelled wire entry and serrations inside the barrel, it guarantees maximum contact and tensile strength after crimping. The copper sleeve surrounding the barrel supports insulation and prevents wire fraying, ensuring long-term durability and safety.
These terminals accommodate a wire size range from 16 AWG (minimum) to 14 AWG (maximum), with a stud size of M4, making them ideal for various wiring tasks in instrumentation, control systems, power supplies, panel boxes, and automotive electrical assemblies.
PIDG (Pre-Insulated Diamond Grip) technology allows for uniform and reliable crimps, suitable for demanding circuit environments. The operating temperature is rated up to 105°C, allowing use under moderately high-temperature conditions.
High conductivity copper construction enhances electrical performance. Color coded nylon insulation sleeve aids quick wire size recognition. Serrated barrel ensures superior tensile strength and contact reliability. Funnelled entry supports efficient wire insertion during installation.
Wide industrial usage including aerospace, transportation, and control equipment.
TE Connectivity PIDG ring terminals meet rigorous industrial standards and are widely used across various sectors requiring consistent electrical connection quality and durability. They are an excellent choice for technicians and engineers seeking dependable wire termination solutions.
Explore more products like this in the Ring Terminal category at EnvMart for high-quality, dependable electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates wire sizes from 16 AWG (minimum) to 14 AWG (maximum).
It is compatible with M4 stud sizes, making it versatile for various electrical assemblies.
The maximum operating temperature is rated up to 105°C, suitable for moderately high-temperature conditions.
It features a copper body with tin plating for conductivity, and a nylon insulation sleeve for protection and identification.
The overall length of this terminal is 21.82 mm.
Yes, it has a funnelled wire entry design that allows for fast and easy wire insertion.
The inner ring diameter is 4.34 mm, and the outer ring diameter is 8.71 mm.
It is insulated with a durable nylon sleeve that also aids in wire size identification.
It is suitable for industrial, aerospace, automotive, and control panel applications.
The terminal includes serrations in the wire barrel for maximum contact and tensile strength after crimping.
The country of origin for this terminal is India.
This terminal belongs to the PIDG (Pre-Insulated Diamond Grip) series.
