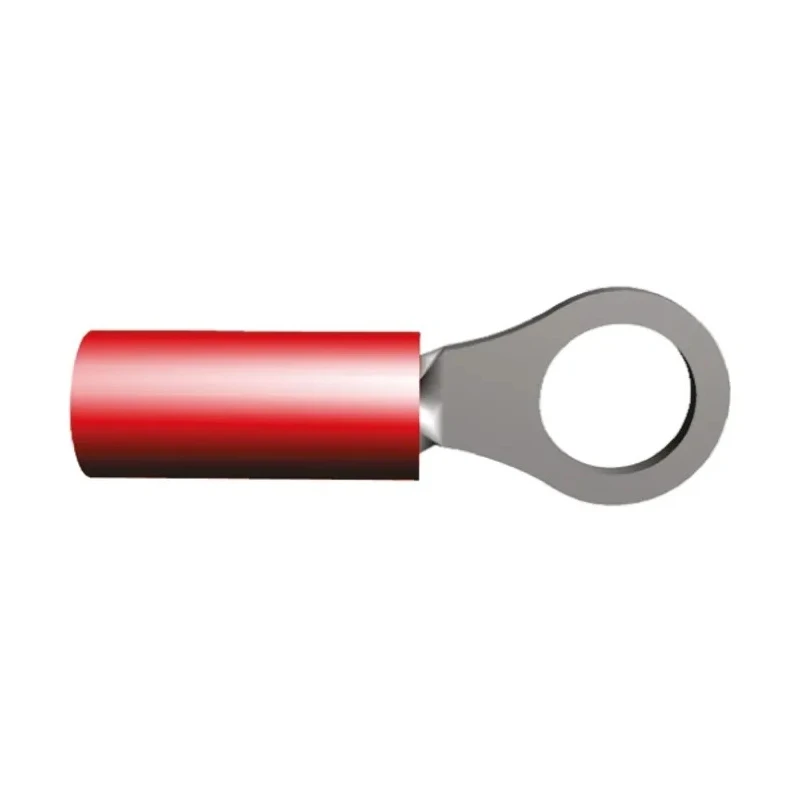

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 22 AWG to 16 AWG Nylon Sleeve Copper Tin Plated Contact 320552

TE Connectivity 320552 PIDG insulated ring terminal features an M5 stud size and supports 22 AWG minimum to 16 AWG maximum wire sizes, making it ideal for various wire termination needs. The insulated terminal includes a durable red nylon sleeve that aids in wire size identification and provides enhanced insulation durability. The copper body and barrel are precision-formed to ensure high conductivity and reliable electrical connections.

The terminal barrel contains serrations that improve tensile strength and contact quality after crimping. An integrated copper sleeve supports the wire insulation, preventing damage and fraying of wire strands. The funnelled wire entry design facilitates quick and reliable wire insertion during high-speed production and assembly processes.

These terminals comply with RoHS standards and are rated for operation up to 105°C, confirming suitability for demanding industrial and electrical environments. Applications include instruments and control panels, lighting, power supply connections, transportation equipment, motors, aerospace assemblies, and appliances where reliable electrical contact is critical.

Available with color-coded nylon insulation for ease of identification and efficient tooling, this TE Connectivity PIDG ring terminal provides a dependable solution for electrical wiring challenges. Its manufacturing origin in the United States ensures strict quality control and performance consistency.

Constructed with high conductivity copper body for reliable electrical performance. Equipped with copper sleeve for enhanced wire insulation support and prevention of fraying. Features serrations in wire barrel for maximum contact and tensile strength after crimping.

Color-coded nylon sleeve allows easy wire size and tooling identification. Funnelled wire entry design permits fast wire insertion to improve productivity. Meets RoHS compliance and is suitable up to 105°C operating temperature.

Compatible with a broad range of applications including aerospace, instrumentation, power supplies, and panel boxes. Manufactured in the United States ensuring quality and consistency.
