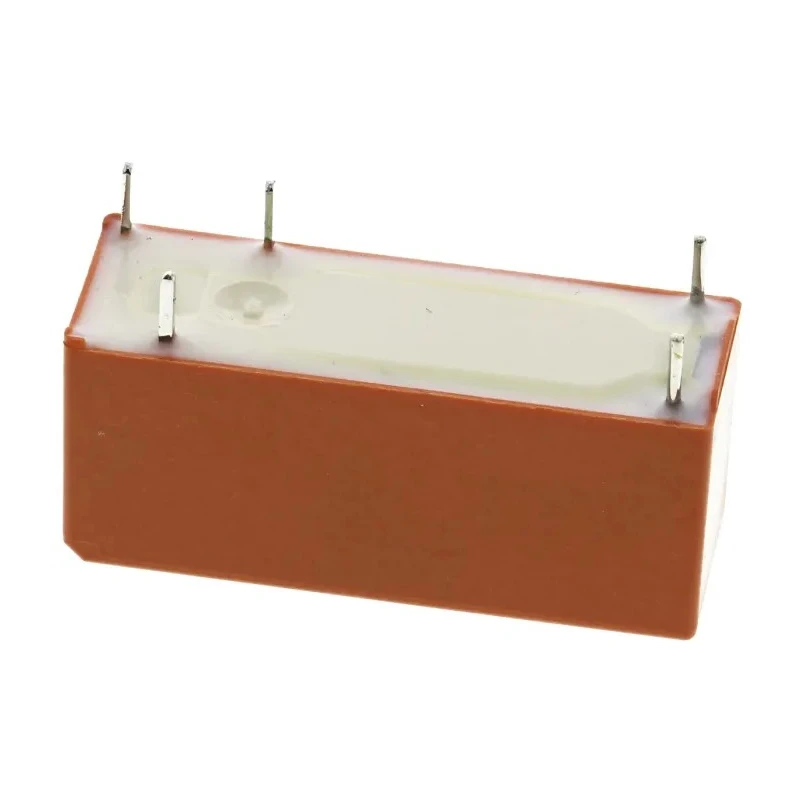

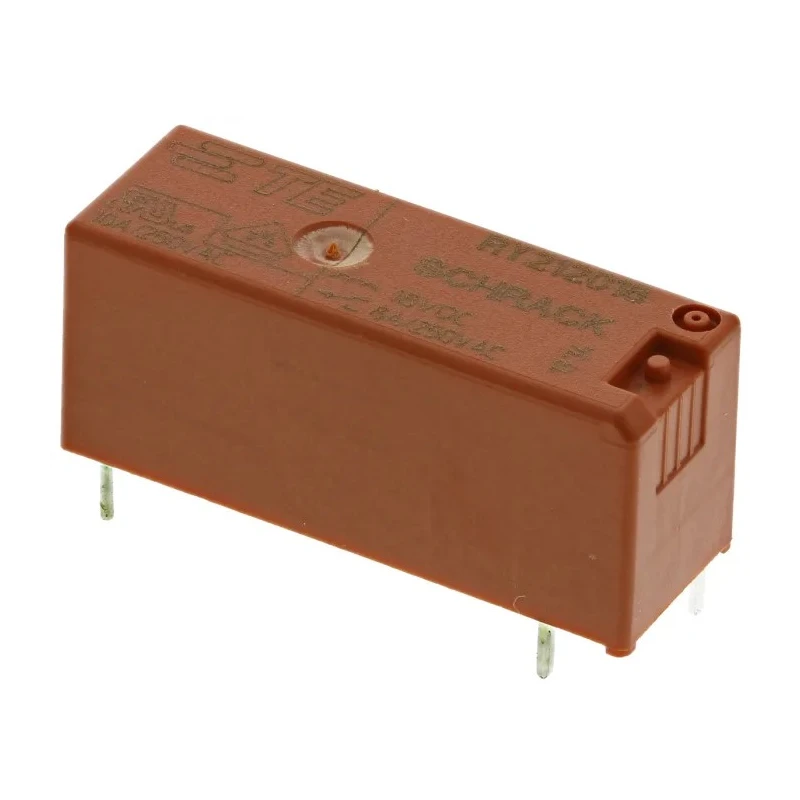

TE Connectivity PCB Power Relay 18V DC Coil 8A Switching Current SPDT RY212018

TE Connectivity RY212018 is a high-quality PCB power relay designed for industrial and electrical automation applications requiring reliable switching at 18V DC coil voltage. This SPDT (Single Pole Double Throw) relay supports an 8A switching current with gold-plated contacts to ensure low resistance and long service life.

The relay is designed for PCB mounting with solder terminals, facilitating robust and secure connections on printed circuit boards. With a coil power consumption of 250mW and coil resistance of 1.3kΩ, it offers efficient coil operation. The device supports switching AC voltages up to 400V AC and switching power up to 2kVAC, making it suitable for a wide range of electrical control and signal switching requirements.

Its compact form factor, with dimensions measuring 28.5mm in length, 10.1mm in width, and 12.3mm in height, allows easy integration in space-constrained environments. The relay is rated to operate under temperatures from -40°C up to 70°C, making it resilient in harsh industrial conditions. It features 3.2mm pinning for secure placement, and an 8mm creepage and clearance distance, ensuring compliance with safety standards.

Certified to meet IEC 60335-1, RoHS, and VDE standards, the RY212018 offers reliability and environmental compliance. This power relay is ideal for use in industrial machinery, control panels, HVAC systems, and other automation applications requiring dependable switching performance and electrical isolation.

This power relay features a reliable gold-plated contact material for enhanced conductivity and durability. Designed for PCB mounting with solder terminal type, facilitating easy assembly. Operates efficiently with a coil power of 250mW and coil resistance of 1.3kΩ.

Supports switching AC voltage up to 400V AC with a switching power rating of 2kVAC. Rated for an operating temperature range from -40°C to 70°C, suitable for diverse industrial environments. Compact dimensions of 28.5mm length, 10.1mm width, and 12.3mm height enable space-saving installations.

Complies with standards including IEC 60335-1, RoHS, and VDE for quality assurance. Features 3.2mm pinning and 8mm creepage and clearance ensuring electrical safety. Ideal for applications in electrical automation, industrial machinery, and signal conditioning systems.

Explore EnvMart's comprehensive selection of reliable Power Relays from TE Connectivity tailored for diverse industrial and electrical needs.
