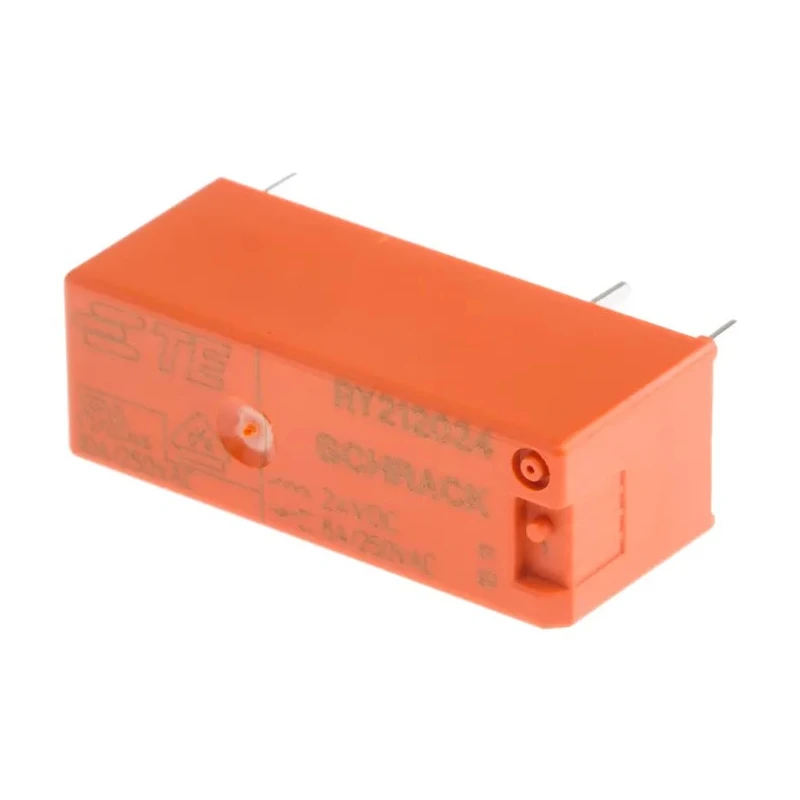

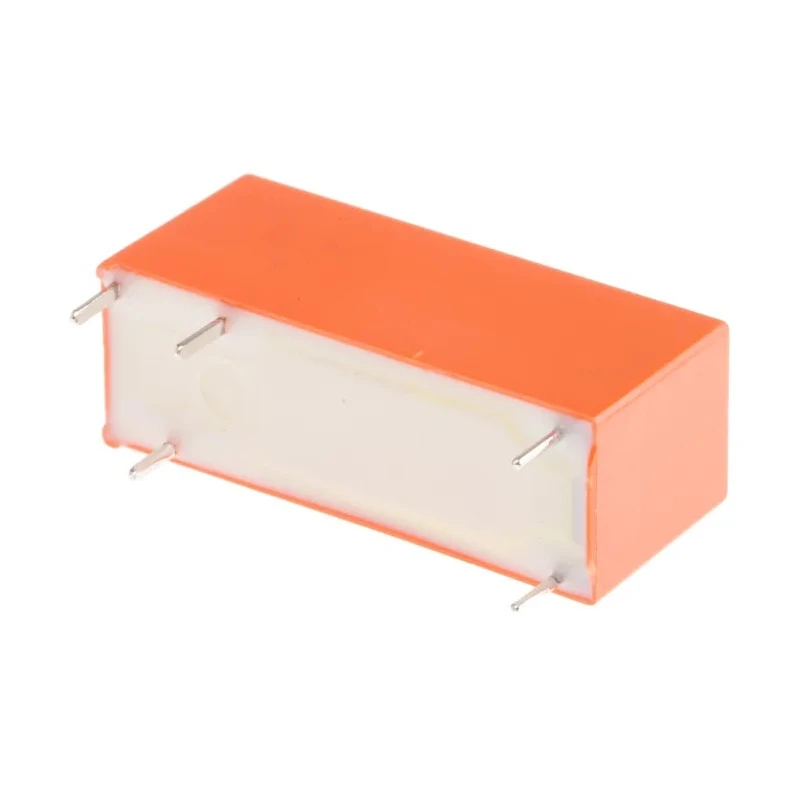

TE Connectivity PCB Power Relay, 24V DC Coil, 8A Switching Current, SPDT RY212024
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |
| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RY212024 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 2.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- The relay features a SPDT contact configuration suitable for versatile circuit designs.
- It supports a coil voltage of 24 volts DC with a low coil power consumption of 250 milliwatts.
- Constructed with gold-plated contact material ensuring durability and reduced contact resistance.
- Designed for PCB mounting with solder terminals, facilitating easy integration into circuit boards.
- Operating temperature ranges from -40°C up to 70°C, suitable for demanding environments.
- Compact dimensions with length 28.5mm, width 10.1mm, and height 12.3mm allow for space-efficient applications.
- Conforms to IEC 60335-1, RoHS, and VDE standards for safety and environmental compliance.
- Switching capability up to 8A current and 400V AC makes it suitable for various power relay tasks.
Product Description
TE Connectivity RY212024 PCB Power Relay is an industrial-grade electromagnetic switch designed for use in electrical and automation applications requiring reliable power switching. This model features an SPDT (Single Pole Double Throw) contact configuration and a 24V DC coil voltage, making it compatible with standard control voltages.
The relay provides an 8A switching current capacity and supports switching voltages up to 400V AC, suitable for medium power load control. The coil power consumption is 250mW with a coil resistance of 2.4kΩ, ensuring energy-efficient operation.
Designed for PCB mounting, the relay comes with solder-type terminals and a 3.2mm pinning pitch, facilitating straightforward assembly on printed circuit boards. Its compact size (28.5mm length, 10.1mm width, 12.3mm height) allows for integration into space-constrained devices.
The contact material is gold plated, enhancing contact reliability and longevity by resisting corrosion. It is engineered to operate within a temperature range of -40°C to +70°C, suitable for a broad range of industrial, manufacturing, HVAC, and electrical equipment.
The device is compliant with international safety and environmental standards including IEC 60335-1, RoHS, and VDE, ensuring secure and environmentally responsible use. The relay’s SPDT configuration provides flexible switching options.
Energy-efficient coil design reduces power consumption. Gold-plated contacts ensure robust conductivity and durability. Compact dimensions ideal for PCB mount applications. Wide operating temperature range supports diverse environments.
Compliance with multiple international standards guarantees safety. Suitable for industrial control, automation, and power switching tasks.
TE Connectivity's RY Series relays such as the RY212024 deliver dependable and precise performance in power relay needs. This product is ideal for applications in electrical automation, manufacturing systems, HVAC controls, and more.
Explore EnvMart's Electronics & Electricals category for innovative Power Relays and related components designed to meet various industrial challenges.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 8A, making it suitable for medium power load control.
This model operates with a coil voltage of 24V DC, allowing it to be compatible with standard control voltages.
The dimensions of this relay are 28.5mm in length, 10.1mm in width, and 12.3mm in height.
The relay operates within a temperature range of -40°C to +70°C, making it suitable for demanding environments.
It features a Single Pole Double Throw (SPDT) contact configuration, providing flexible switching options.
The coil power consumption is 250mW, which contributes to its energy-efficient operation.
This relay conforms to IEC 60335-1, RoHS, and VDE standards for safety and environmental compliance.
It is designed for PCB mounting and comes with solder-type terminals for straightforward assembly on printed circuit boards.
The contact material is gold plated, enhancing contact reliability and longevity by resisting corrosion.
The relay supports switching voltages up to 400V AC, suitable for various power relay tasks.
The coil resistance is 2.4kΩ, which is part of its design for efficient operation.
This relay is suitable for applications in electrical automation, manufacturing systems, and HVAC controls.
