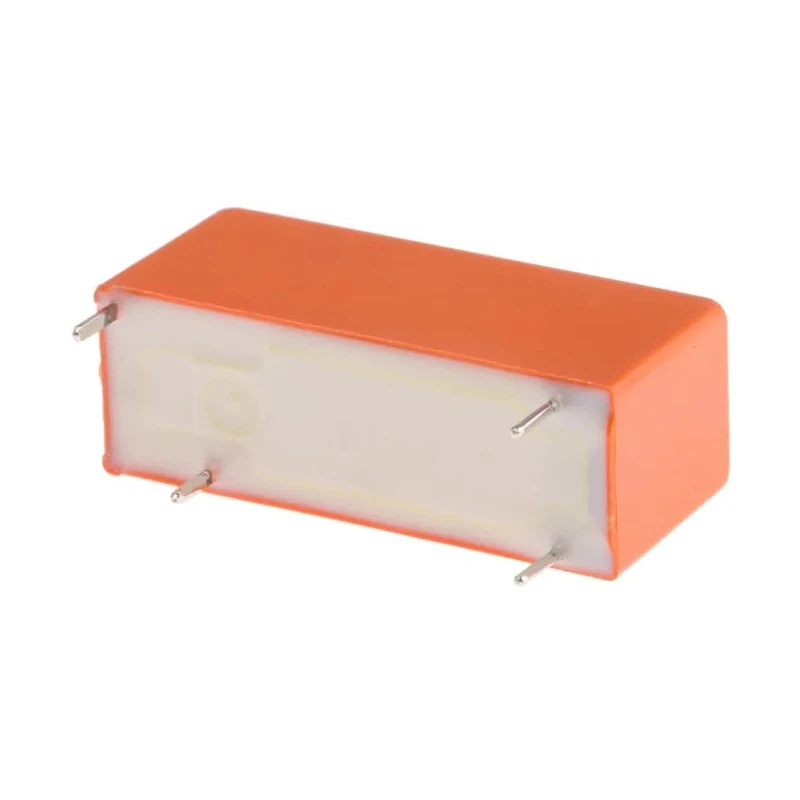

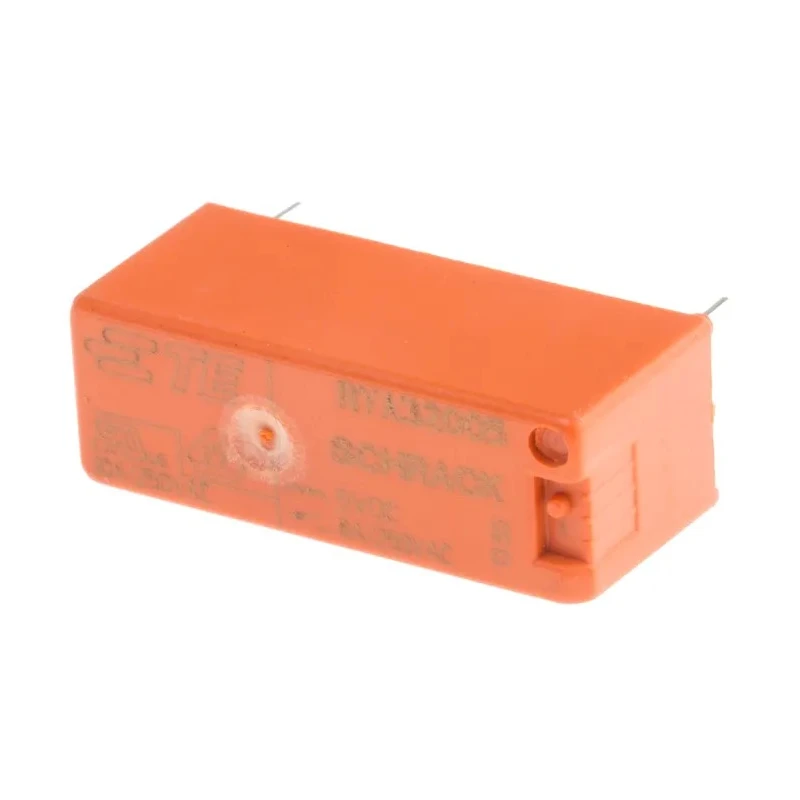

TE Connectivity PCB Power Relay 5V dc Coil 8A Switching Current SPST RYA32005
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -40 to + 70°C |
| Dimensions | H 12.3mm, W 28.5mm, D 10mm |
| Height | 12.3mm |
| Length | 28.5mm |
| Model | RYA32005 |
| Width | 10.1mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RY II |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 112Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| Creepage and clearance | 8mm |
Key Features
- Operates at coil voltage of 5 volts DC for low power consumption.
- Switching current capacity of 8 amperes ensures high load handling.
- Gold plated contacts provide enhanced conductivity and corrosion resistance.
- Compact dimensions of 28.5mm length, 12.3mm height, and 10.1mm width facilitate PCB integration.
- Wide operating temperature range from -40 to 70 degrees Celsius for varied environments.
- Creepage and clearance distance of 8mm enhances electrical safety.
- Coil resistance rated at 112 ohms and coil power consumption at 250 milliwatts.
- Complies with IEC 60335-1, RoHS, and VDE standards ensuring quality and safety.
Product Description
TE Connectivity RYA32005 PCB Power Relay features a 5V DC coil voltage and supports a maximum switching current of 8A through its SPST (Single Pole Single Throw) contact arrangement, ideal for dependable switching applications on printed circuit boards.
The relay’s compact form factor with dimensions of 28.5mm length, 12.3mm height, and 10.1mm width allows for space-efficient PCB layouts. Its gold plated contacts ensure high conductivity and resistance to corrosion, extending the operational life and reliability of the device.
This power relay operates reliably within a broad temperature range of -40°C to +70°C, making it suitable for industrial, automation, and control system environments exposed to varying thermal conditions. The device's 8mm creepage and clearance distance provide enhanced electrical insulation and safety compliance.
Equipped with a coil resistance of 112 ohms and low coil power consumption of 250mW, the relay delivers energy-efficient switching performance. Its solder terminal type and standard 5mm pin pitch enable straightforward integration and soldering on PCBs.
The RYA32005 model is certified under IEC 60335-1, RoHS compliant, and VDE approved, ensuring adherence to international safety and environmental standards. This relay is manufactured in the Czech Republic, confirming high manufacturing quality.
This product is suitable for use in industrial control panels, automation systems, HVAC controls, and other electronic applications requiring reliable PCB mounting power relays. Operates at 5V DC coil voltage with energy-efficient coil power.
Handles switching currents up to 8A with SPST contact configuration. Compact size facilitates PCB mounting and integration. Gold plated contacts ensure durability and low contact resistance. Wide temperature operational range supports diverse industrial environments.
Meets IEC 60335-1, RoHS, and VDE safety and environmental compliance. Standard 5mm pinning and solder terminal type for secure connections. Explore more Power Relays and electronic components on EnvMart for industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 5 volts DC, which is designed for low power consumption.
It supports a maximum switching current of 8 amperes, making it suitable for various applications.
This model has compact dimensions of 28.5mm in length, 12.3mm in height, and 10.1mm in width, facilitating easy PCB integration.
The relay operates reliably within a temperature range of -40°C to +70°C, suitable for diverse environments.
It features a Single Pole Single Throw (SPST) contact configuration, ideal for dependable switching applications.
The coil resistance is rated at 112 ohms, which contributes to its energy-efficient performance.
It is equipped with solder terminals, allowing for straightforward integration onto printed circuit boards.
The contacts are gold plated, providing enhanced conductivity and corrosion resistance.
This relay complies with IEC 60335-1, RoHS, and VDE standards, ensuring quality and safety in its applications.
The coil power consumption is rated at 250 milliwatts, contributing to its energy-efficient operation.
The creepage and clearance distance is 8mm, which enhances electrical safety and insulation.
This relay is manufactured in the Czech Republic, confirming adherence to high manufacturing standards.
