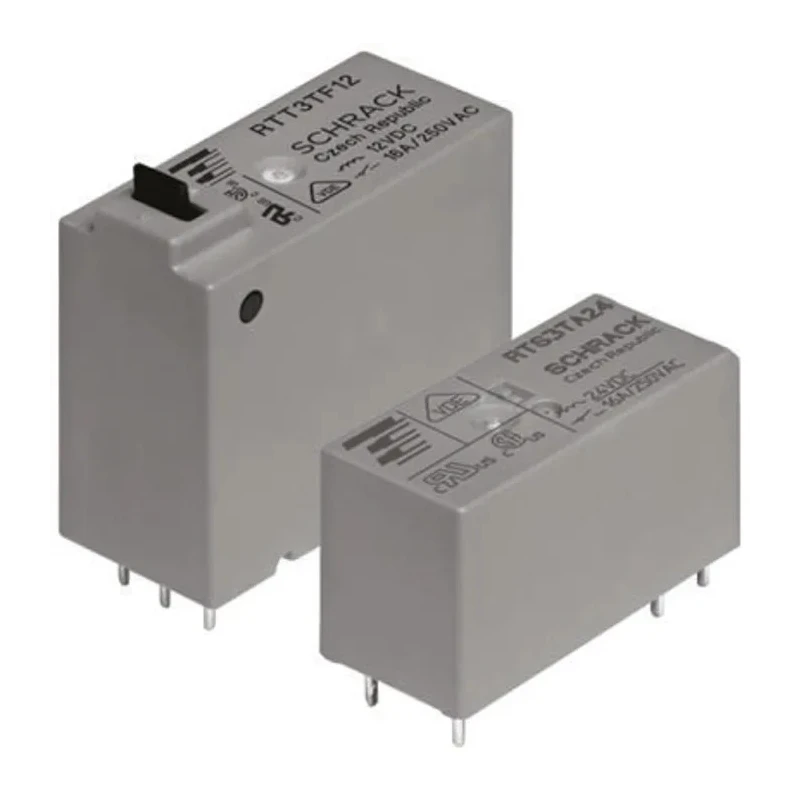

TE Connectivity PCB Power Relay, 12V DC Coil, 16A Switching Current, SPST RTS3TF12
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RTS3TF12 |
| Width | 12.7mm |
| Mount Type | PCB |
| Series | RT |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 240Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 600mW |
Key Features
- The relay supports a switching power of 4kVA at 400VAC.
- Coil resistance is 240 ohms with a coil power rating of 600mW.
- Operating temperature ranges from -40°C to 85°C ensuring broad environmental usability.
- Designed for PCB mounting with solder terminal types.
- Complies with RoHS standard for environmental safety.
- Applications include lighting systems, movement sensors, lamp loads, and motor control.
Product Description
TE Connectivity RTS3TF12 PCB Power Relay has a 12V DC coil designed specifically for PCB mounting applications, offering a reliable switching current rating of 16A with SPST contact configuration. It supports a maximum switching power of 4kVA at 400VAC, which makes it suitable for a wide range of electrical control and automation tasks.
The relay operates over a temperature range of -40°C to 85°C, enabling performance stability in varying industrial environments. Its coil resistance of 240Ω and coil power of 600mW ensure efficient electrical operation with minimal energy consumption.
The compact relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, fitting well into space-constrained PCB layouts. It features solder type terminals and robust contact materials comprising silver alloy and tungsten, which provide enhanced durability and high switching reliability.
This product complies with RoHS standards, highlighting its environmental compliance and suitability for modern electrical installations. Typical applications for this relay include lighting systems, movement sensors, filament and incandescent lamp loads, as well as motor controls. It can handle high inrush currents per IEC 60669-1 standards, further emphasizing its industrial-grade quality.
Overall, the TE Connectivity RTS3TF12 relay is an ideal choice for industrial, commercial, and automation environments requiring reliable PCB-mounted Power Relays with moderate voltage and current ratings.
The relay supports a switching power of 4kVA at 400VAC. Coil resistance is 240 ohms with a coil power rating of 600mW. Operating temperature ranges from -40°C to 85°C ensuring broad environmental usability. Constructed with silver alloy and tungsten contact materials for durability and reliability.
Designed for PCB mounting with solder terminal types. Dimensions are compact with length 29mm, width 12.7mm, and height 15.7mm. Complies with RoHS standard for environmental safety. Applications include lighting systems, movement sensors, lamp loads, and motor control.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current rating of 16A, making it suitable for various electrical control applications.
The coil voltage for the RTS3TF12 is 12V DC, which is necessary for its operation.
It supports a maximum switching power of 4kVA at 400VAC, allowing it to handle significant electrical loads.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, making it compact for PCB mounting.
It operates within a temperature range of -40°C to 85°C, ensuring performance stability in various environments.
The RTS3TF12 features a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is 240 ohms, which contributes to its efficient operation.
It is designed with solder type terminals for PCB mounting applications.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The contacts are constructed from silver alloy and tungsten, providing enhanced durability and reliability.
This relay is suitable for applications such as lighting systems, movement sensors, lamp loads, and motor control.
The coil power rating is 600mW, which helps in minimizing energy consumption during operation.
