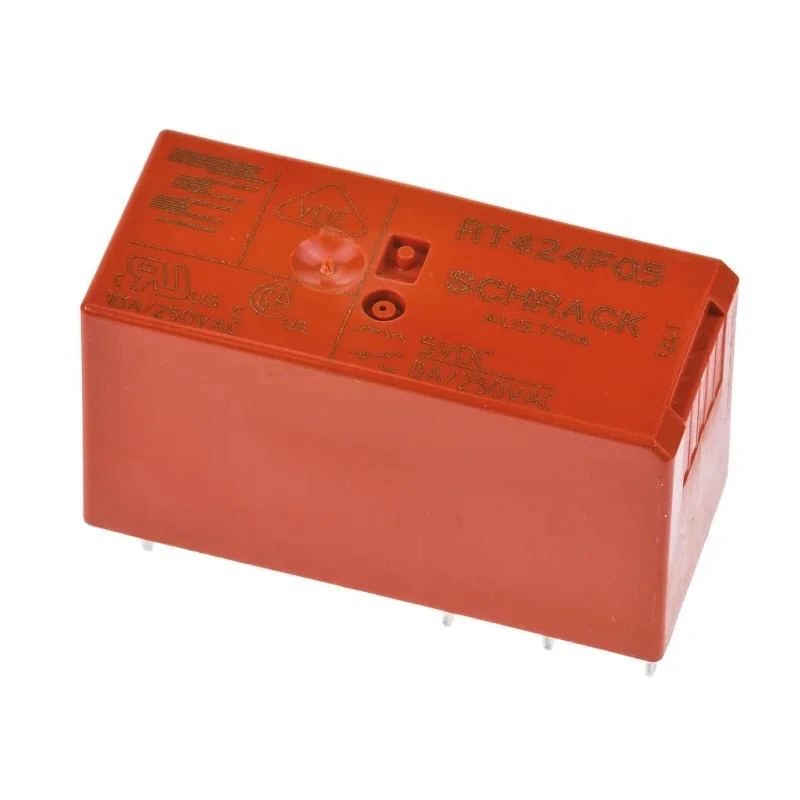

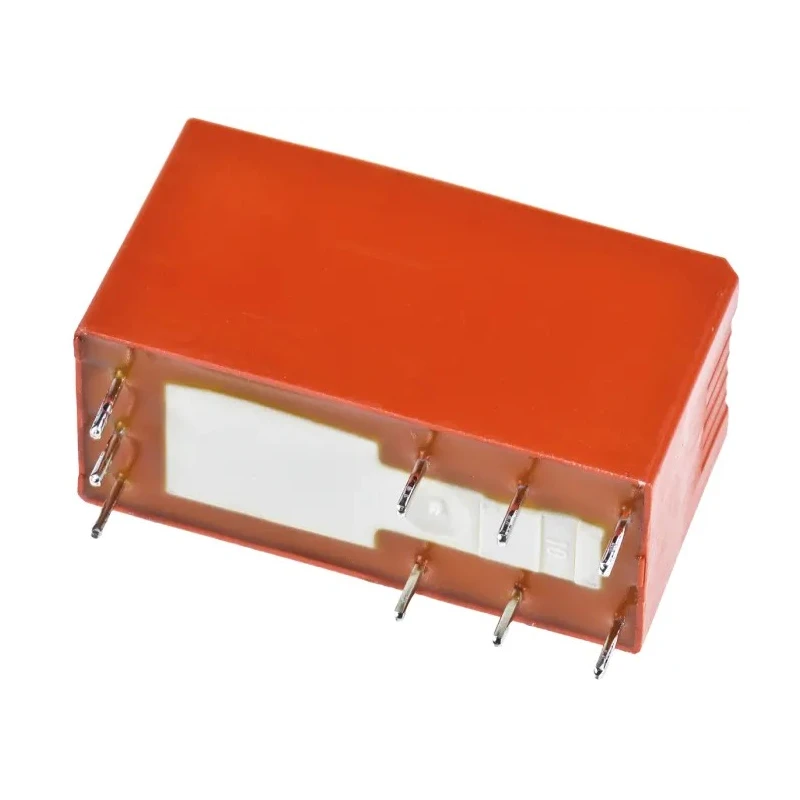

TE Connectivity PCB Power Relay 5V DC Coil 8A Switching Current Silver Alloy Contacts DPDT RT424F05
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424F05 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SCHRACK |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Coil Resistance | 42Ω |
| Coil Voltage | 5V dc |
| Switching AC Voltage | 400V ac |
Key Features
- Equipped with silver alloy contact material for reliable conductivity and durability.
- Designed for PCB mounting with solder terminal type for secure installation.
- Operating temperature range from -40°C to 85°C ensuring performance in diverse environments.
- Compact dimensions with height 15.7mm, width 12.7mm, and length 29mm suitable for dense circuit layouts.
- Features coil resistance of 42Ω with switching AC voltage rated up to 400V AC.
- Manufactured in Austria with RoHS compliance ensuring environmental safety.
- Part of the SCHRACK series offering bistable/latching relay options for memory function in battery-powered devices.
- Reinforced insulation and shock resistance enable robust operation in industrial and automation contexts.
Product Description
TE Connectivity RT424F05 is a high-performance PCB Power Relay designed for industrial electrical and automation applications. Featuring a 5V DC coil, this relay provides dependable switching with an 8A current capacity and DPDT contact configuration, making it ideal for precise control in electronic circuits.
The relay's silver alloy contacts optimize electrical conductivity and longevity, while the solder terminal type ensures robust PCB mounting. Its compact dimensions (15.7mm height, 12.7mm width, 29mm length) enable integration into various layouts, including constrained spaces.
Designed to operate reliably in harsh conditions, this relay withstands temperatures from -40°C to 85°C, supported by reinforced insulation and shock resistance tested to 100g destructive shock. The coil resistance stands at 42Ω, and the relay can switch AC voltages up to 400V, offering flexibility across applications.
Manufactured in Austria and compliant with RoHS standards, the RT424F05 series is part of the SCHRACK family of bistable/latching relays, offering memory functions particularly advantageous in battery-powered or mains failure situations. The relay’s robust design and emissions standards certification make it suitable for industrial automation, manufacturing equipment, telecommunications, and power distribution systems.
Reliable 8A switching current with DPDT configuration for complex switching needs. Compact and robust build suitable for PCB integration. Wide operating temperature range ensuring durability in varied environments. Silver alloy contacts for enhanced conductivity and wear resistance.
Reinforced insulation and shock resistant structure for industrial reliability. RoHS compliant ensuring environmentally responsible manufacturing. Ideal for applications requiring memory function or latching behavior.
This power relay is essential for professionals in electronics design, electrical engineering, and industrial automation seeking reliable, efficient switching solutions. Explore this and more in our extensive Power Relay category at EnvMart to meet your specialized operational needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a switching current capacity of 8A, making it suitable for various electronic control applications.
The coil voltage for this relay is 5V DC, which is necessary for its operation.
The relay has compact dimensions of 15.7mm in height, 12.7mm in width, and 29mm in length, allowing for easy integration into dense circuit layouts.
It is designed for PCB mounting with a solder terminal type, ensuring secure installation on printed circuit boards.
This relay features a DPDT (Double Pole Double Throw) contact configuration, allowing for complex switching needs.
The maximum switching AC voltage for this model is rated up to 400V AC, providing flexibility across various applications.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for diverse environmental conditions.
The contacts of this relay are made of silver alloy, which enhances electrical conductivity and longevity.
Yes, the RT424F05 is RoHS compliant, ensuring it meets environmental safety standards.
This model is part of the SCHRACK series, which includes bistable/latching relay options for memory functions.
The coil resistance for this relay is 42Ω, which is a critical specification for its electrical performance.
This relay is manufactured in Austria, ensuring high standards of production quality.
