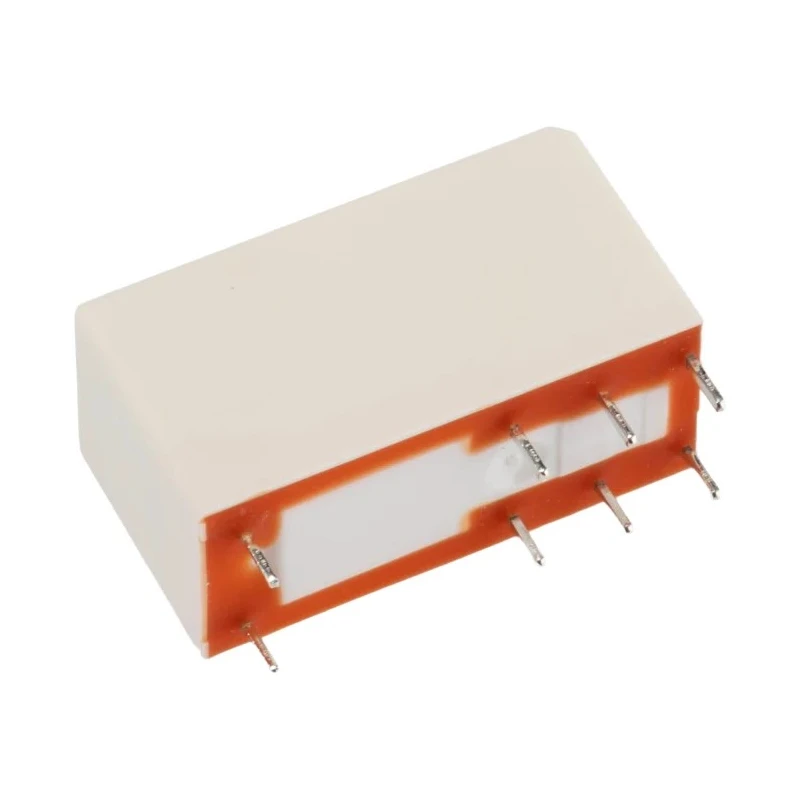

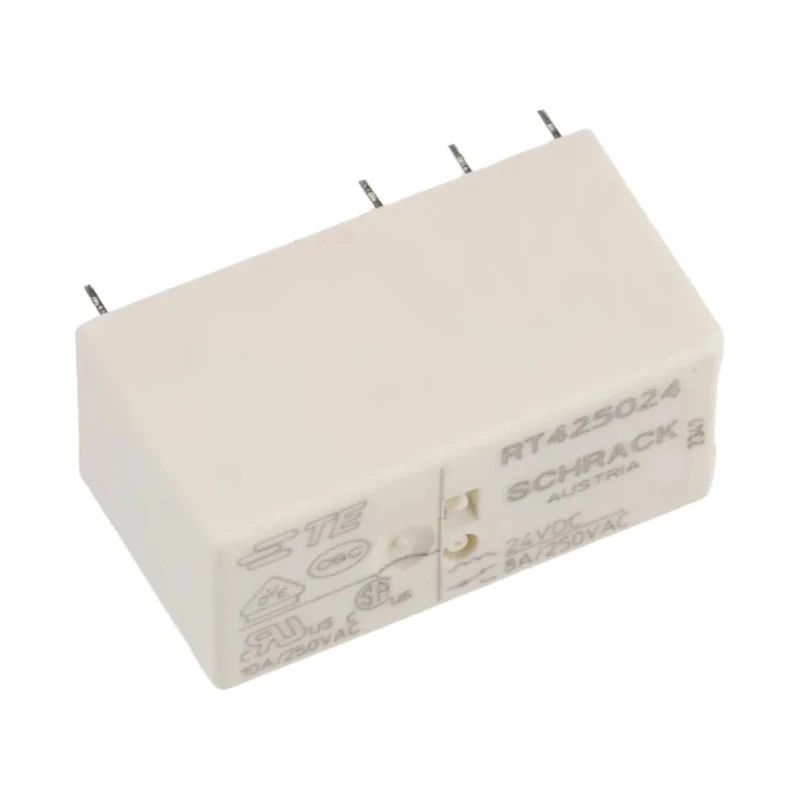

TE Connectivity PCB Power Relay, 24V DC Coil, 8A Switching Current, DPDT, Gold Plated Contacts RT425024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT425024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | VDE, RoHS, IEC 60335-1 |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed for PCB mounting with solder terminals.
- Gold plated contacts ensure reliable switching performance.
- Coil resistance rated at 1.4kΩ and power consumption 250mW.
- Operates reliably from -40°C to 85°C temperature range.
- Supports switching power up to 2kVA and switching AC voltage up to 400V AC.
- Meets VDE, RoHS, and IEC 60335-1 standards and approvals.
- Manufactured in Austria ensuring high-quality production.
Product Description
TE Connectivity RT425024 is a reliable PCB power relay featuring a 24V DC coil voltage and double-pole double-throw (DPDT) contact configuration. It is designed specifically for through-hole PCB mounting applications requiring soldered terminals, making installation efficient and durable.
The relay coil has a resistance of 1.4kΩ and consumes only 250mW power, ensuring energy efficiency. The gold-plated contacts provide superior conductivity and durability, maintaining consistent switching performance over prolonged use.
This model can handle switching currents up to 8A and switching power up to 2kVA, with an AC switching voltage rating of up to 400V AC, suitable for various electrical control applications. It operates reliably in harsh environments with an operating temperature range from -40°C to 85°C.
Dimensionally compact at 29 mm length, 12.7 mm width, and 15.7 mm height, making it ideal for space-constrained designs. The relay complies with multiple international standards including VDE, RoHS, and IEC 60335-1, assuring safety and environmental compliance.
Common applications for this relay include industrial automation, security lighting systems, domestic electrical appliances, and heating control systems. The RT2 Series offers flux proof pinning for enhanced durability and ease of cleaning during assembly.
Manufactured in Austria, the relay combines quality engineering with practical design to support reliable electrical and automation solutions. The product gallery and technical documents provide further insights and support design and installation processes.
Designed for PCB mounting with solder terminals. Gold plated contacts ensure reliable switching performance. Coil resistance of 1.4kΩ with low coil power consumption. Wide operating temperature range from -40°C to 85°C. Compact size suitable for varied electrical applications.
High switching current and power ratings for versatile use cases. Compliant with VDE, RoHS, and IEC 60335-1 standards. Manufactured in Austria with stringent quality assurance. Explore EnvMart categories for Power Relays and other high-quality electronic components to find the suitable parts for your industrial, laboratory, or automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC.
It can handle a maximum switching current of 8A.
This relay measures 29 mm in length, 12.7 mm in width, and 15.7 mm in height.
The contact configuration is double-pole double-throw (DPDT).
It operates reliably within a temperature range of -40°C to 85°C.
This model is designed for PCB mounting with solder terminals.
The coil power consumption is rated at 250mW.
It complies with VDE, RoHS, and IEC 60335-1 standards.
The maximum switching power it can handle is 2kVA.
The contacts are made of gold-plated material, ensuring reliable switching performance.
Common applications include industrial automation, security lighting systems, domestic electrical appliances, and heating control systems.
It is manufactured in Austria, ensuring high-quality production.
