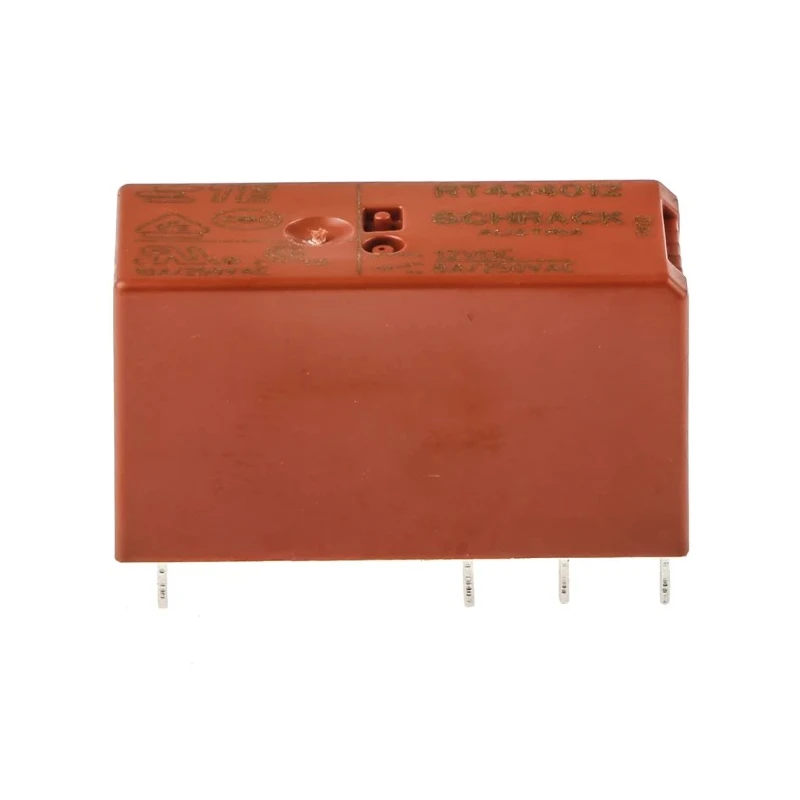

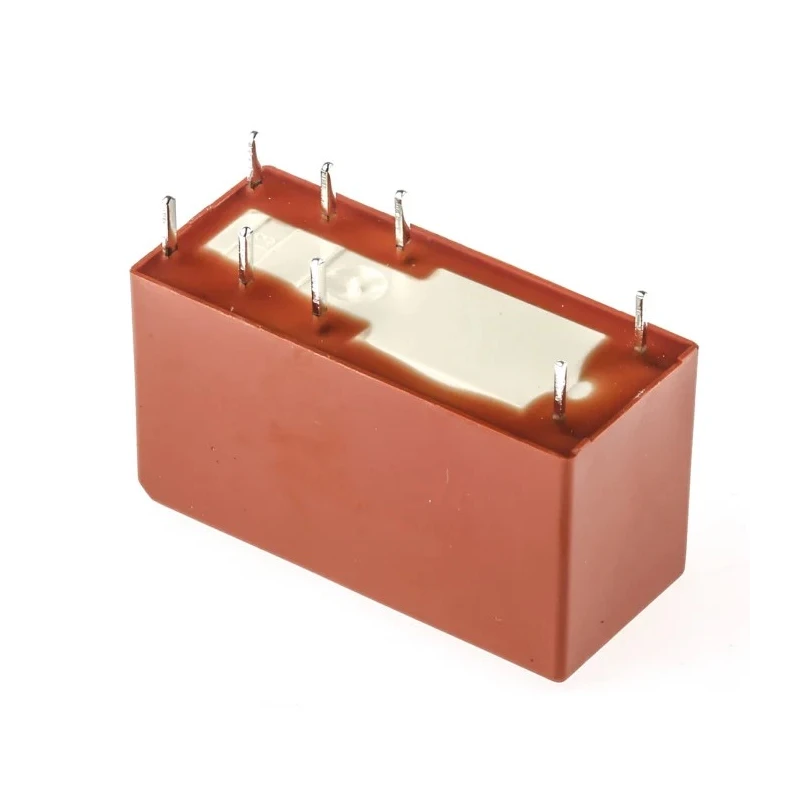

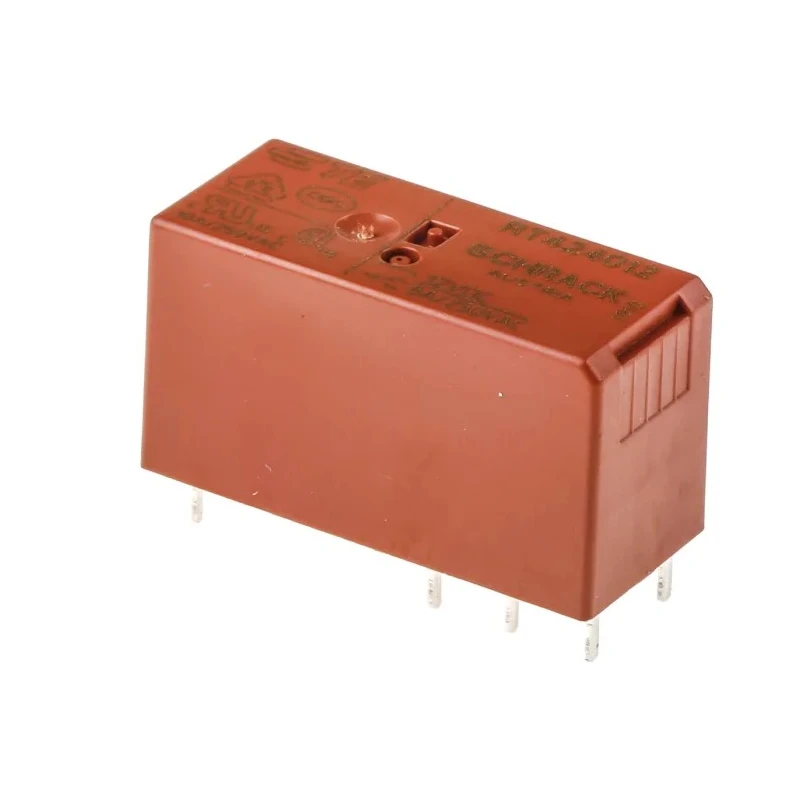

TE Connectivity PCB Power Relay 12V DC Coil 8A Switching Current DPDT RT424012
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT424012 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT2 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Solder |
| Standards/Approvals | RoHS, VDE, IEC 60335-1 |
| Coil Resistance | 360Ω |
| Coil Voltage | 12V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Operates with a coil voltage of 12V DC.
- Double Pole Double Throw (DPDT) contact configuration for versatile switching.
- Switching current rated at 8A and switching AC voltage up to 400V AC.
- PCB mount type with solder terminal for secure installation.
- Coil resistance of 360 ohms and coil power consumption of 250mW.
- Compact size with dimensions 29mm length, 15.7mm height, and 12.7mm width.
- Contact material is silver nickel alloy ensuring durability and reliable conduction.
- Operating temperature range from -40°C up to 85°C for wide environmental compatibility.
Product Description
TE Connectivity RT424012 is a high-quality PCB power relay designed for industrial and electronic applications requiring reliable switching with moderate current and voltage ratings. This relay is actuated by a 12V DC coil and supports a switching current of 8A in a DPDT configuration, allowing control of two circuits simultaneously.
The RT424012 series relay features a solder terminal mount suitable for PCB integration, ensuring robust mechanical and electrical connections. Its coil resistance is 360 ohms with a coil power consumption of just 250mW, offering efficient operation. The compact design measures 29mm in length, 15.7mm in height, and 12.7mm in width, making it ideal for space-constrained circuit boards.
Constructed with silver nickel alloy contacts, the relay ensures long operational life and effective conductivity. It operates reliably over a broad temperature range from -40°C to 85°C, suitable for various industrial and commercial environments including automation systems, control modules, and power regulation applications.
The relay meets important industry standards such as RoHS compliance, VDE certification, and IEC 60335-1, underscoring its safety and environmental credentials. Electrical isolation between coil and contact is maintained with creepage and clearance distances that meet regulatory requirements.
Typical applications include boiler control, timers, garage door controls, POS automation, and interface modules in industrial automation and control systems. Being a non-latching relay in the RT2 series, it offers dependable switching performance with a 5mm pin pitch for PCB mounting.
Operates with a coil voltage of 12V DC. Double Pole Double Throw (DPDT) contact configuration. Switching current up to 8A and switching AC voltage rated at 400V AC. PCB mount type with solder terminal. Coil resistance of 360 ohms and coil power of 250mW.
Compact dimensions 29mm x 12.7mm x 15.7mm (LxWxH). Contact material is silver nickel alloy for durability. Operating temperature range -40°C to 85°C. Standards compliance: RoHS, VDE, IEC 60335-1. Explore more Power Relays and related components from TE Connectivity and other brands on EnvMart to enhance your electronic projects and industrial automation installations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates with a coil voltage of 12V DC.
It can handle a maximum switching current of 8A.
This relay features a Double Pole Double Throw (DPDT) contact configuration.
The relay is rated for switching AC voltage up to 400V AC.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
It uses solder terminals for secure installation on a PCB.
The coil resistance is 360 ohms.
The coil power consumption is 250mW.
The contacts are made from silver nickel alloy.
The relay operates within a temperature range of -40°C to 85°C.
It meets RoHS compliance, VDE certification, and IEC 60335-1 standards.
Typical applications include boiler control, timers, garage door controls, and POS automation.
