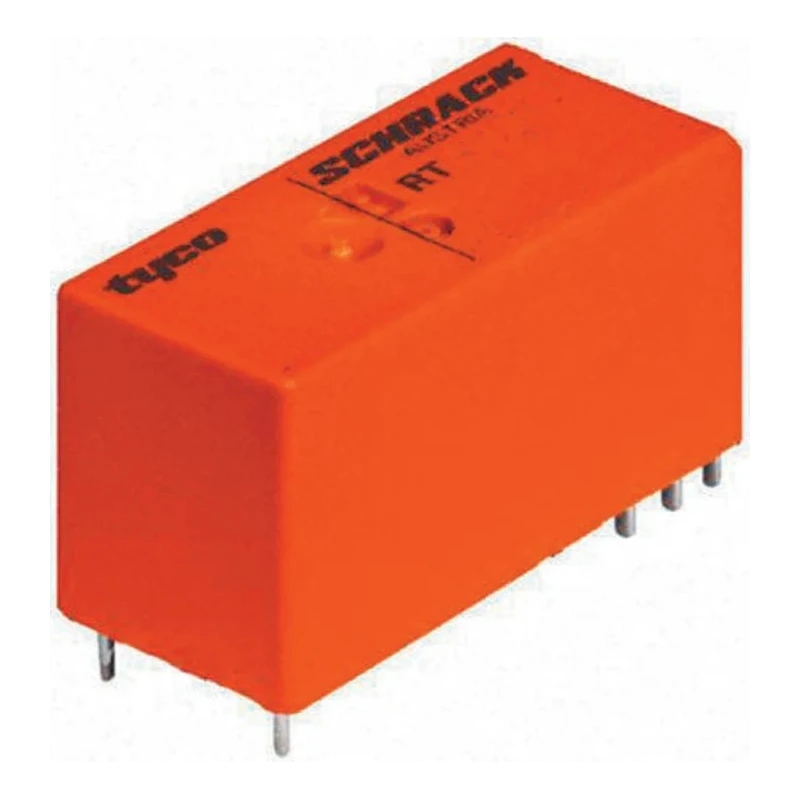

TE Connectivity PCB Power Relay 5V dc Coil 8A Switching Current DPDT RT424A05

TE Connectivity RT424A05 PCB Power Relay is a high-quality bistable/latching relay designed for applications requiring reliable switching with memory function, such as battery powered equipment and mains failure backup systems. It features a 5V dc coil voltage and supports an 8A switching current with a DPDT contact configuration for double-pole double-throw capabilities. The relay is mounted through-hole on PCBs, ensuring secure and consistent electrical connections.

The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, providing a compact and efficient form factor suitable for a wide range of industrial, electronic, automation, and control applications. It operates at a switching voltage of up to 400V ac, providing versatility across various electrical systems.

Constructed with reinforced insulation, the RT424A05 relay delivers enhanced safety and performance in demanding environments. Its design includes resistance to destructive shocks up to 100g, increasing reliability in harsh conditions. This makes it ideal for industrial automation, manufacturing equipment, and control panels where consistent and secure relay operation is critical.

The RT424A05 belongs to the SCHRACK series and is manufactured in Austria, reflecting TE Connectivity's commitment to quality and durability. It is supplied in tubes ready for insertion into PCBs, facilitating improved production efficiency.

Features a 5V dc coil ensuring efficient low voltage operation. DPDT contact configuration allows double-pole double-throw switching. Through-hole terminal type ideal for PCB mounting applications. Compact size with length 29mm, width 12.7mm, and height 15.7mm.

Supports switching voltage of up to 400V ac for versatile electrical control. Designed with reinforced insulation for enhanced safety and durability. Shock resistant to destructive shocks up to 100g. Suitable for applications requiring bistable/latching relay memory function.

Manufactured in Austria ensuring high-quality standards.

This TE Connectivity PCB Power Relay RT424A05 is well-suited for electronics manufacturing, industrial automation, and various electrical control applications requiring reliable switching performance. Explore more high-quality Power Relays and control products on EnvMart.
