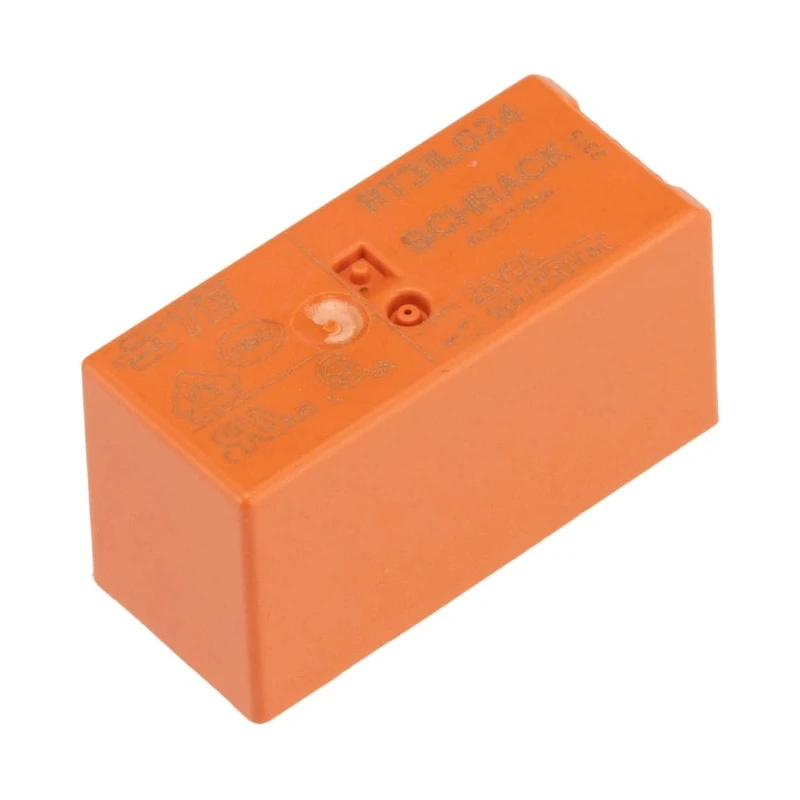

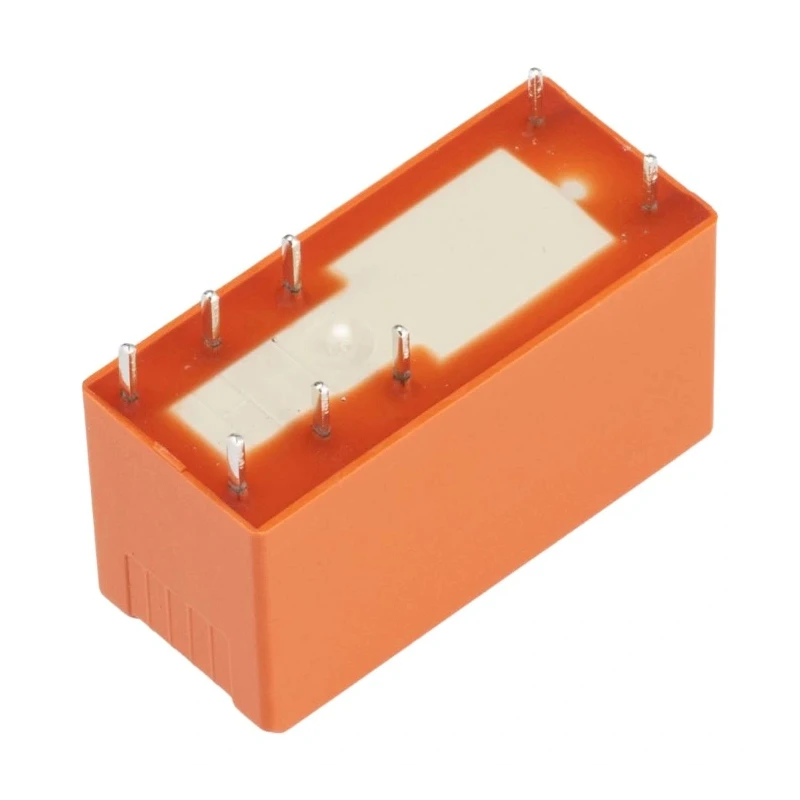

TE Connectivity PCB Power Relay 24V dc Coil 16A Switching Current SPDT RT31L024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT31L024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 400mW |
Key Features
- Suitable for PCB mounting with solder terminal type.
- Supports switching AC voltage up to 400V ac and switching power of 4kVA.
- Operating temperature ranges from -40°C to 85°C for reliable performance.
- Constructed with silver alloy contact material for durability and electrical conductivity.
- Coil resistance is 1.4kΩ and coil power consumption is 400mW.
- Meets international standards including IEC 60335-1, RoHS, and VDE certifications.
- Ideal for lighting systems, movement sensors, filament and incandescent lamp loads, and motor controls.
- Provides reinforced insulation with creepage and clearance distances for safety.
Product Description
TE Connectivity RT31L024 PCB Power Relay with a 24V dc coil voltage and 16A switching current is engineered for reliable performance in demanding industrial and electrical applications. Featuring a Single Pole Double Throw (SPDT) contact configuration, this power relay is designed for PCB mounting with solder terminals, making it ideal for integration into various control circuits.
The relay supports switching AC voltage up to 400V and a switching power of 4kVA, suitable for high power loads. It operates efficiently within a temperature range from -40°C to 85°C, ensuring robust function under diverse environmental conditions. The silver alloy contact material enhances conductivity and durability, contributing to a long service life.
Compact in size with dimensions of 29mm length, 12.7mm width, and 15.7mm height, the RT31L024 relay consumes only 400mW coil power with a coil resistance of 1.4kΩ. It maintains reinforced insulation with 10mm creepage and clearance distances and features 5mm pinning for secure mounting.
This relay is internationally certified with IEC 60335-1, RoHS compliance, and VDE approvals, ensuring safety and regulatory compliance. Applications span lighting control systems, movement sensors, incandescent lamp circuits, and motor load switching, making it versatile for industrial automation and electrical projects.
Suitable for PCB mounting with solder terminal type. Supports switching AC voltage up to 400V ac and switching power of 4kVA. Operating temperature ranges from -40°C to 85°C for reliable performance. Constructed with silver alloy contact material for durability and electrical conductivity.
Compact dimensions: length 29mm, width 12.7mm, height 15.7mm. Coil resistance is 1.4kΩ and coil power consumption is 400mW. Meets international standards including IEC 60335-1, RoHS, and VDE certifications. Ideal for lighting systems, movement sensors, filament and incandescent lamp loads, and motor controls.
Provides reinforced insulation with creepage and clearance distances for safety. Manufactured in Austria ensuring high quality and durability. Explore more Power Relay options and industrial electrical components at EnvMart for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 16A.
This model operates with a coil voltage of 24V dc.
It can switch AC voltage up to 400V.
The relay has dimensions of 29mm in length, 12.7mm in width, and 15.7mm in height.
The operating temperature range is from -40°C to 85°C.
It features a Single Pole Double Throw (SPDT) contact configuration.
The coil resistance is 1.4kΩ.
The coil power consumption is 400mW.
The contacts are constructed with silver alloy material, enhancing conductivity and durability.
It meets international standards including IEC 60335-1, RoHS, and VDE certifications.
This relay is suitable for applications such as lighting systems, movement sensors, and motor controls.
It is designed for PCB mounting with solder terminals.
