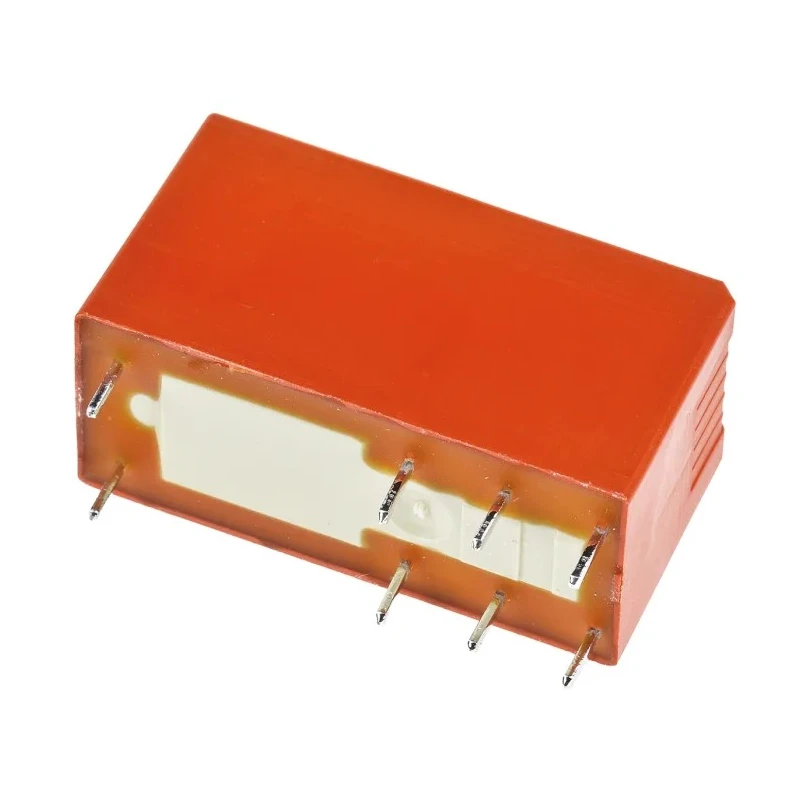

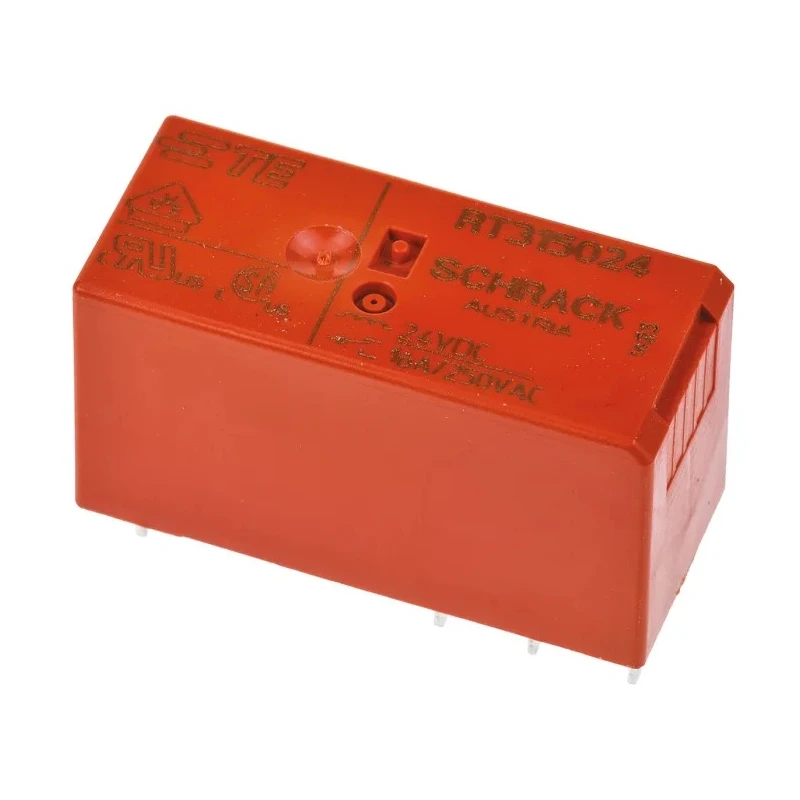

TE Connectivity PCB Power Relay 24V DC Coil 16A Switching Current SPDT RT315024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT315024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Coil operates at 24V DC with a coil power of 250mW.
- Single Pole Double Throw (SPDT) contact configuration for versatile applications.
- Switching current rated up to 16A and switching AC voltage of 400V AC.
- Gold plated contacts ensure reliable conductivity and durability.
- Compact dimensions measuring 29mm length, 12.7mm width, and 15.7mm height.
- Operating temperature range from -40°C to 85°C suitable for harsh environments.
- Mount type designed specifically for PCB installation with solder terminal type.
- Complies with IEC 60335-1, RoHS standards, and VDE approvals.
Product Description
TE Connectivity RT315024 PCB Power Relay features a 24V DC coil with a power rating of 250mW designed for efficient PCB mounting applications. It provides a robust switching current capability of 16A and supports an AC switching voltage up to 400V AC, catering to demanding industrial and automation use cases.
The relay utilizes a Single Pole Double Throw (SPDT) contact configuration with gold plated contact material to deliver reliable switching performance and longevity. Its compact form factor, measuring 29mm in length, 12.7mm width, and 15.7mm height, allows it to be easily integrated on PCBs with through-hole mounting and solder terminals.
Designed to operate in a temperature range from -40°C to 85°C, this relay is suitable for diverse environments, including automotive interface circuits, automation systems, domestic applications, security lighting, and heating controls. The coil exhibits a resistance of 1.4kΩ, providing consistent coil operation and response.
This product is compliant with IEC 60335-1, RoHS, and VDE standards, ensuring safety and environmental conformity. Manufactured in Austria, the TE Connectivity RT315024 relay assures quality and performance suitable for industrial, manufacturing, laboratory, and commercial equipment requiring reliable power relay components.
Coil operates at 24V DC with a coil power of 250mW. Single Pole Double Throw (SPDT) contact configuration for versatile applications. Switching current rated up to 16A and switching AC voltage of 400V AC. Gold plated contacts ensure reliable conductivity and durability.
Compact dimensions measuring 29mm length, 12.7mm width, and 15.7mm height. Operating temperature range from -40°C to 85°C suitable for harsh environments. Mount type designed specifically for PCB installation with solder terminal type.
Complies with IEC 60335-1, RoHS standards, and VDE approvals. Coil resistance is 1.4kΩ ensuring consistent electrical characteristics. Manufactured in Austria ensuring high product quality and reliability. Explore more Power Relay components and related products within the Electronics & Electricals category on EnvMart for your industrial, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay operates at a coil voltage of 24V DC.
It has a switching current rated up to 16A.
The relay can switch AC voltage up to 400V AC.
It features a Single Pole Double Throw (SPDT) contact configuration.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height.
The operating temperature range is from -40°C to 85°C.
It is designed specifically for PCB installation with solder terminals.
The contacts are made from gold plated material to ensure reliable conductivity.
It complies with IEC 60335-1, RoHS, and VDE standards.
The coil power rating is 250mW.
The coil resistance is 1.4kΩ.
This relay is manufactured in Austria.
