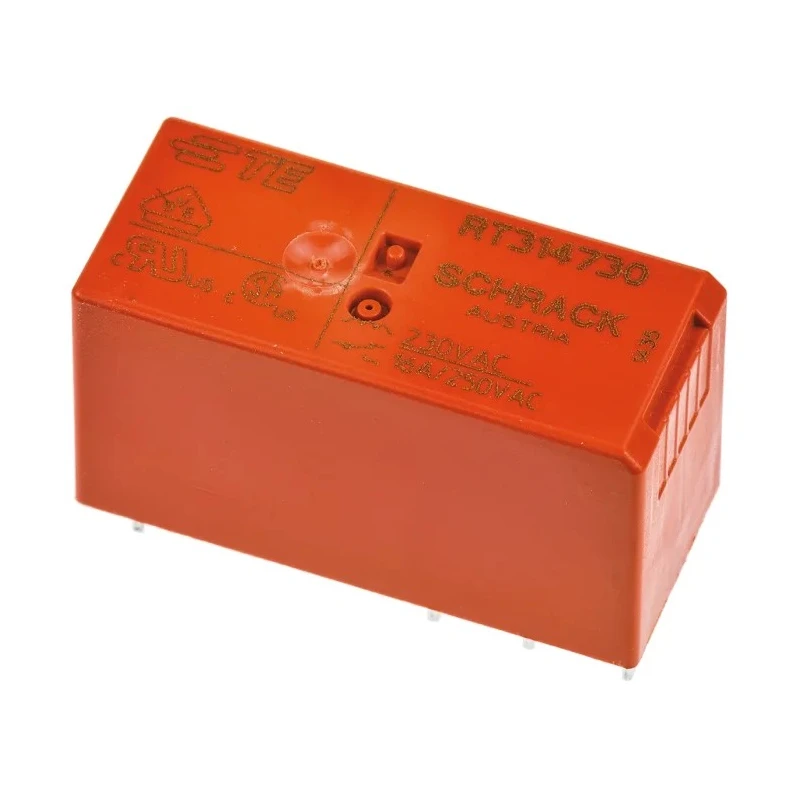

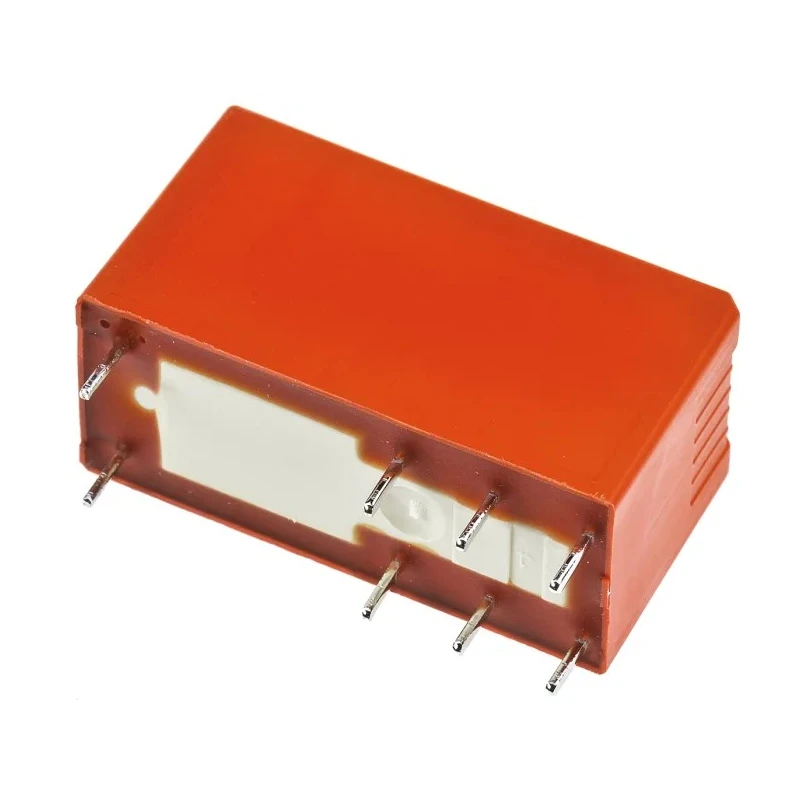

TE Connectivity PCB Power Relay 230V AC Coil 16A Switching Current SPDT RT314730
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT314730 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 32.5kΩ |
| Coil Voltage | 230V ac |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
| TE Connectivity PCB Mount Non-Latching Relay, 230V ac Coil, SPDTBrand | TE Connectivity |
Key Features
- Designed for PCB mounting with solder terminals for easy installation.
- Coil resistance of 32.5kΩ offers reliable coil control at 250mW power consumption.
- Operating temperature ranges from -40°C to 70°C for diverse environmental conditions.
- Compact dimensions with 29mm length, 12.7mm width, and 15.7mm height.
- Contact material is durable silver nickel alloy ensuring longevity and stable conductivity.
- Switching AC voltage rating up to 400V AC supporting high power applications.
- Complies with IEC 60335-1, RoHS, and VDE standards for safety and environmental compliance.
- Non-latching RT1 series relay with 3.5mm pinning providing flux proof mounting.
Product Description
TE Connectivity RT314730 PCB Power Relay is a high-performance single pole double throw (SPDT) relay designed for various industrial, automation, and domestic applications requiring reliable switching of electrical loads with a coil voltage of 230V AC and switching current of 16A.
This relay offers robust performance for interface, security lighting, heating systems, and general automation tasks, featuring a flux proof mounting style on PCBs that enhances durability and assembly efficiency. Its compact size of 29mm length, 12.7mm width, and 15.7mm height fits well on circuit boards with minimal footprint.
The coil resistance of 32.5kΩ and coil power of 250mW ensure efficient control circuit operation, while the contact silver nickel alloy material provides excellent conductivity and corrosion resistance. Operational temperature ranges from -40°C to 70°C, making it suitable for demanding environments.
This model belongs to the RT1 series characterized by 3.5mm pinning for secure PCB mounting and is flux proof to resist contamination. It supports switching AC voltage up to 400V AC and coil voltage at 230V AC. The relay adheres strictly to IEC 60335-1, RoHS, and VDE standards reflecting compliance with international safety and environmental norms.
The TE Connectivity RT314730 relay is manufactured in Austria, ensuring high quality and precision engineering. Key features include:. PCB mount type with solder terminals for simple integration. 16A switching current capacity supports a range of electrical loads.
SPDT contact configuration allows versatile circuit control. Operating temperature from -40°C to 70°C ensures reliability in various climates. Compliant with IEC 60335-1, RoHS, and VDE standards. This relay is ideal for electrical automation, industrial control systems, HVAC, security devices, and domestic applications requiring a dependable PCB power relay.
Explore EnvMart's extensive range of electrical components and Power Relays to find products tailored to your system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This relay has a switching current capacity of 16A, allowing it to handle various electrical loads effectively.
The coil voltage for this model is 230V AC, which is essential for its operation in various applications.
The relay measures 29mm in length, 12.7mm in width, and 15.7mm in height, making it compact for PCB mounting.
It supports a maximum switching AC voltage of 400V AC, suitable for high power applications.
This model features a single pole double throw (SPDT) contact configuration, allowing versatile circuit control.
The operating temperature range for this relay is from -40°C to 70°C, making it suitable for diverse environmental conditions.
The contact material is silver nickel alloy, providing excellent conductivity and corrosion resistance.
The coil resistance is 32.5kΩ, which ensures efficient control circuit operation at a power consumption of 250mW.
It complies with IEC 60335-1, RoHS, and VDE standards, reflecting adherence to international safety and environmental norms.
This relay is designed for PCB mounting with solder terminals, facilitating simple integration into circuit boards.
This model belongs to the RT1 series, characterized by 3.5mm pinning for secure PCB mounting.
It is manufactured in Austria, ensuring high quality and precision engineering.
