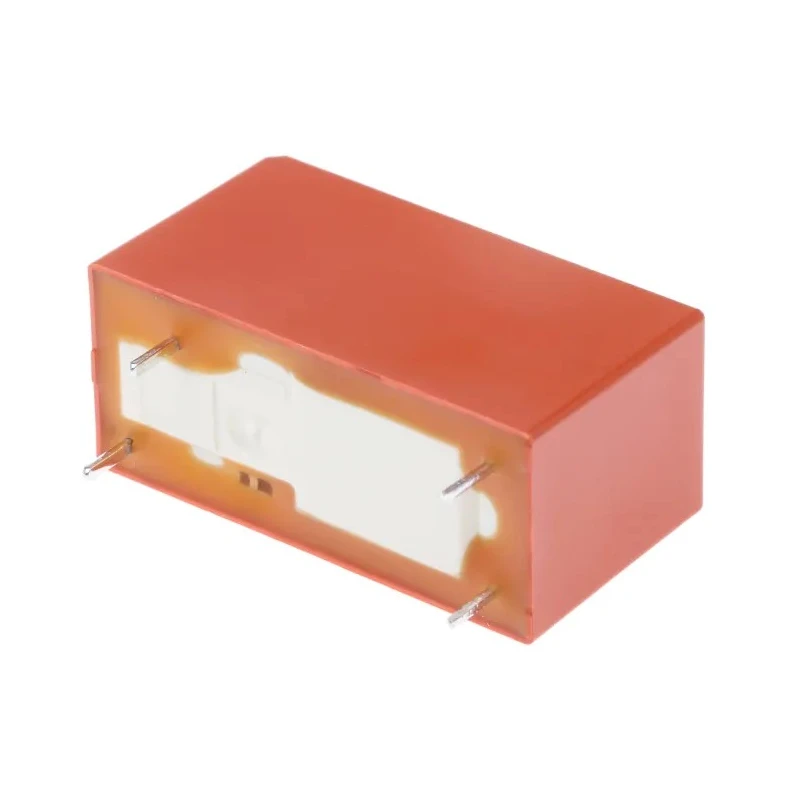

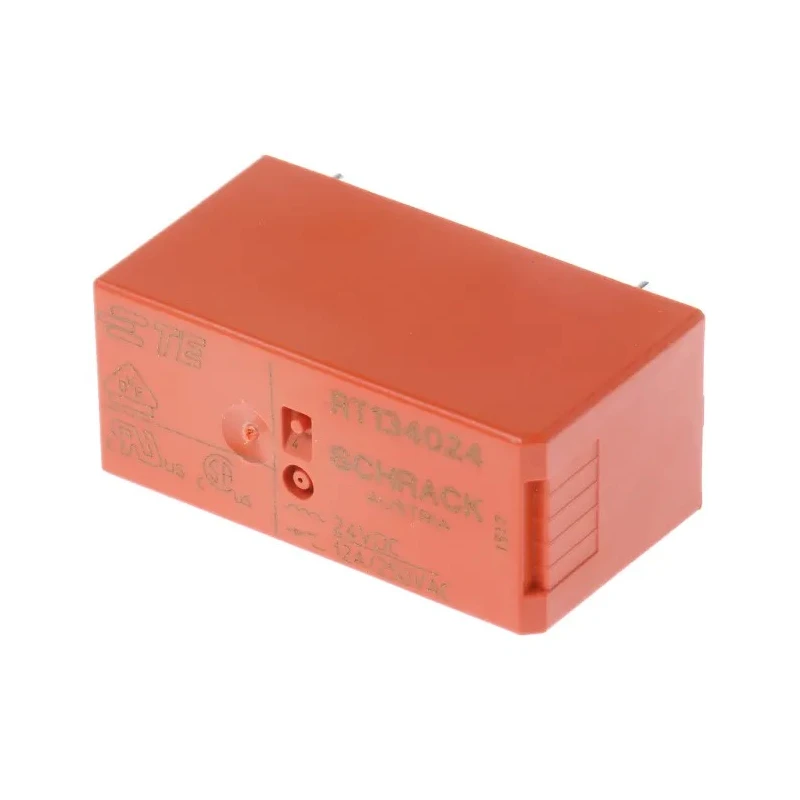

TE Connectivity PCB Power Relay 24V DC Coil 12A Switching Current SPST RT134024
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | TE Connectivity |
| Height | 15.7mm |
| Length | 29mm |
| Model | RT134024 |
| Width | 12.7mm |
| Mount Type | PCB |
| Contact Material | Silver Nickel Alloy |
| Series | RT1 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 12A |
| Terminal type | Solder |
| Standards/Approvals | IEC 60335-1, RoHS, VDE |
| Coil Resistance | 1.4kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 400V ac |
| Coil Power | 250mW |
Key Features
- Designed for reliable switching with a 3kVA switching power capacity.
- Features solder terminal type compatible with through-hole PCB mounting.
- Operates within a wide temperature range from -40°C to 85°C for industrial applications.
- Constructed with silver nickel alloy contacts ensuring durability and performance.
- Compact dimensions of 29mm length, 15.7mm height, and 12.7mm width optimize PCB space.
- Complies with IEC 60335-1, RoHS, and VDE standards ensuring quality and safety.
- Coil resistance is 1.4kΩ with a coil power consumption of 250mW for energy-efficient operation.
- Suitable for automation, interface, domestic applications, security lighting, and heating systems.
Product Description
TE Connectivity RT134024 PCB Power Relay is a precision-engineered power relay designed for robust switching applications with a 24V DC coil and 12A switching current. This SPST contact configuration relay is intended for printed circuit board mounting with solder terminals, facilitating easy integration into automation and control systems.
The relay is part of the RT1 series, known for 3.5mm flux-proof pinning, ensuring durability and reliable mechanical and electrical performance. Operating efficiently within a temperature range of -40°C to 85°C, this relay is suitable for demanding industrial and domestic use cases.
Constructed with a silver nickel alloy contact material, the relay provides excellent conductivity and resistance to wear. Its compact size (29mm length, 15.7mm height, and 12.7mm width) makes it ideal for space-constrained PCB layouts.
Standards compliance includes IEC 60335-1, RoHS, and VDE certifications, which affirm its quality, safety, and environmental conformity. The coil exhibits a resistance of 1.4kΩ and a power rating of 250mW, ensuring low power consumption and efficient operation.
This TE Connectivity relay finds applications in interface modules, automation systems, domestic electronics, security lighting setups, and heating control systems owing to its reliable switching power capability of up to 3kVA at 400V AC.
Designed for reliable switching with a 3kVA switching power capacity. Features solder terminal type compatible with through-hole PCB mounting. Operates within a wide temperature range from -40°C to 85°C for industrial applications.
Constructed with silver nickel alloy contacts ensuring durability and performance. Compact dimensions optimize PCB space and layout. Complies with IEC 60335-1, RoHS, and VDE standards ensuring quality and safety. Energy-efficient coil with 250mW power consumption.
Manufactured in Austria, meeting European quality benchmarks. Explore our comprehensive selection of Power Relays and TE Connectivity products to find the suitable components for your electronic and electrical projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 12A.
This model operates with a coil voltage of 24V DC.
The relay has compact dimensions of 29mm in length, 15.7mm in height, and 12.7mm in width.
The maximum operating temperature for this relay is 85°C.
It complies with IEC 60335-1, RoHS, and VDE standards, ensuring quality and safety.
The relay features a Single Pole Single Throw (SPST) contact configuration.
The coil resistance is 1.4kΩ.
This relay has a coil power consumption of 250mW.
The contacts are constructed from silver nickel alloy, providing good conductivity and durability.
It is suitable for automation, interface modules, domestic electronics, security lighting, and heating systems.
The relay has a switching power capacity of up to 3kVA at 400V AC.
It features solder terminals that are compatible with through-hole PCB mounting.
