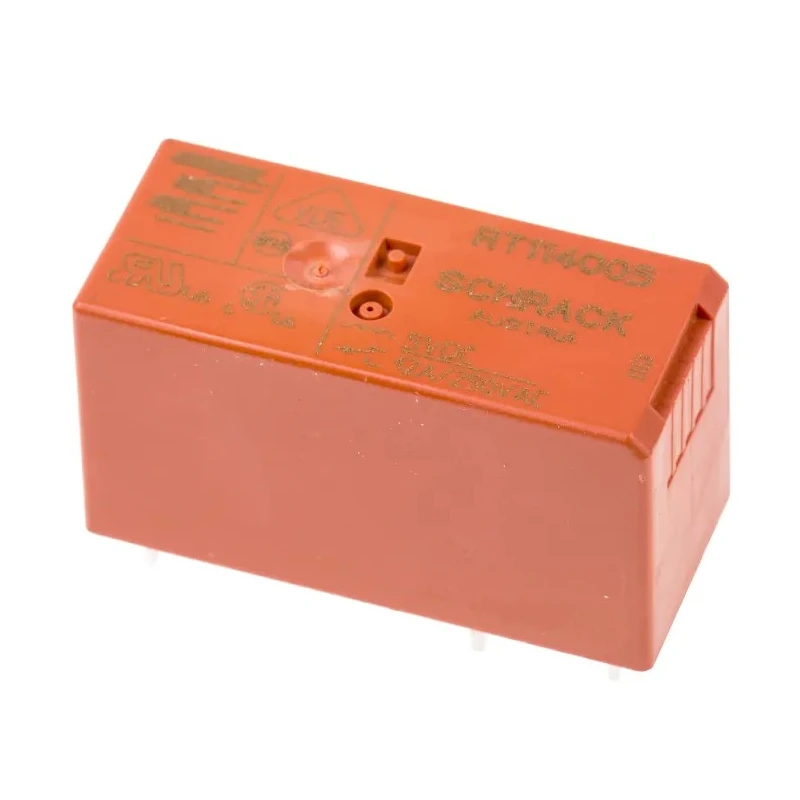

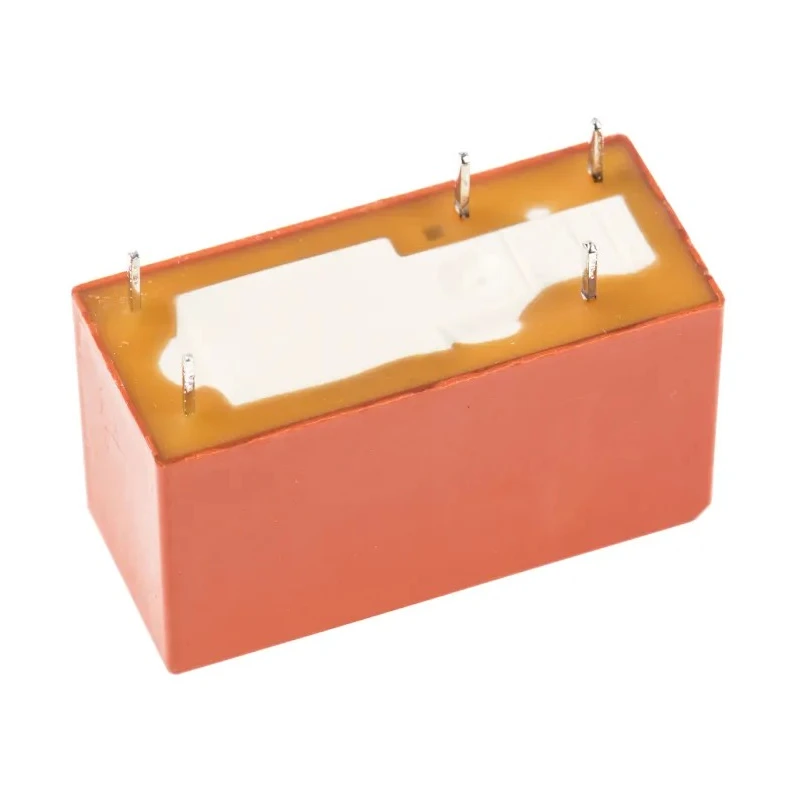

TE Connectivity PCB Power Relay 5V DC Coil 12A Switching Current SPDT RT114005

TE Connectivity RT114005 is a PCB power relay featuring a 5V DC coil voltage and single pole double throw (SPDT) contact configuration, rated for a switching current of 12A. It is engineered for through-hole PCB mounting using solder terminals, making it suitable for interface and automation applications in electrical, industrial control, and domestic equipment.

This relay belongs to the RT1 series characterized by flux-proof 3.5mm pinning, providing reliable electrical contact and resistance to flux during soldering processes. Measuring 29mm in length, 12.7mm in width, and 15.7mm in height, it offers a compact footprint ideal for space-constrained PCBs.

The coil resistance is 62 ohms with a coil power consumption of only 250mW, ensuring energy-efficient operation. It operates within a wide temperature range from -40°C to 85°C, making it suitable for diverse environmental conditions. Contact materials consist of silver nickel alloy, providing excellent conductivity and longevity.

With the capability to switch AC voltage up to 400 volts and a switching power of 3 kVA, the RT114005 relay is well-suited for switching high loads in applications like security lighting, heating systems, and industrial automation. The product adheres to IEC 60335-1, RoHS, and VDE standards, guaranteeing safety and environmental compliance.

Manufactured in Austria, this Power Relay from TE Connectivity offers both performance and reliability required for industrial and commercial applications. Its design allows efficient integration into various control and signal conditioning systems, enhancing automation and interface capabilities in manufacturing and electrical installations.

High switching current capacity of 12 amperes for robust performance. Compact dimensions measuring 29mm length, 12.7mm width, and 15.7mm height. Coil resistance of 62 ohms consuming 250mW power for efficient operation. Operates reliably within temperature range from -40°C to 85°C.

Contacts made of silver nickel alloy ensuring durability and conductivity. Complies with IEC 60335-1, RoHS, and VDE standards for safety and environmental compliance. Designed with solder terminal type for secure PCB mounting.

Supports switching AC voltage up to 400 volts and switching power of 3 kVA. Manufactured in Austria assuring high-quality production standards. Explore the wide range of Power Relays at EnvMart to find compatible and high-quality components from trusted industrial brands like TE Connectivity.
