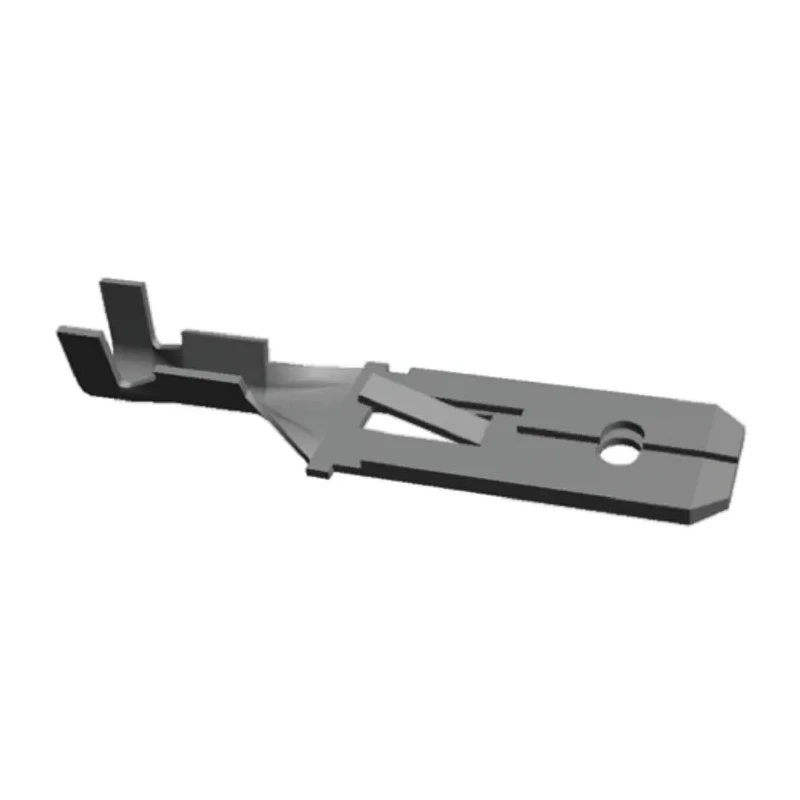

TE Connectivity Uninsulated Black Male Spade Connector Crimp 6.3 x 0.8 mm Tab Size 22 AWG to 18 AWG 160691-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Model | 160691-2 |
| Gender | Male |
| Insulation | Uninsulated |
| Overall Length | 28.5mm |
| Contact Material | Brass |
| Series | FASTIN-FASTON .250 |
| Termination Type | Crimp |
| Interfaces | lances for secure retention in housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Tab Width | 6.35mm |
| Tab Thickness | 0.81mm |
| Tab Size | 6.3 x 0.8 mm |
Key Features
- Uninsulated male spade connector designed for reliable crimp termination.
- Compatible with wire sizes ranging from 22 AWG to 18 AWG.
- Black color with brass contact material plated with tin for corrosion resistance.
- Tab dimensions are 6.35 mm width and 0.81 mm thickness, overall length 28.5 mm.
- Features locking lances to ensure secure retention in housing during use.
- Suitable for appliance and automotive electrical applications.
- Ensures stable mechanical and electrical performance under vibration and environmental stress.
Product Description
TE Connectivity 160691-2 is an uninsulated black male spade connector designed for crimp termination applications. With a tab size of 6.3 x 0.8 mm and compatibility with 22 AWG to 18 AWG wire sizes, it offers a precise and reliable electrical connection for industrial, automotive, and appliance wiring.
This spade connector is constructed with brass contact material plated with tin, providing excellent corrosion resistance and electrical conductivity. The locking lances integrated in the design ensure secure retention within housings, offering added safety and durability.
The overall length of the terminal is 28.5 mm, with a 6.35 mm tab width and 0.81 mm thickness, enabling compatibility with standard FASTIN-FASTON 250 series quick connect systems. This connector is uninsulated, allowing for a compact connection suitable for dense wiring assemblies.
Applications include automotive harness wiring and household appliances such as electric ranges, washers, and dryers where reliable, fast connect and disconnect capabilities are required. The precise crimp specifications help maintain uniform reliability and maximum tensile strength throughout the product's life cycle.
Uninsulated male spade connector designed for reliable crimp termination. Compatible with wire sizes ranging from 22 AWG to 18 AWG. Black color with brass contact material plated with tin for corrosion resistance. Tab dimensions are 6.35 mm width and 0.81 mm thickness, overall length 28.5 mm.
Features locking lances to ensure secure retention in housing during use. Suitable for appliance and automotive electrical applications. Ensures stable mechanical and electrical performance under vibration and environmental stress.
Explore TE Connectivity Spade Connectors and other electrical connection solutions in the Electronics & Electricals category at EnvMart for quality products optimized for industrial and commercial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 22 AWG to 18 AWG.
The tab dimensions are 6.35 mm in width and 0.81 mm in thickness.
The overall length of this unit is 28.5 mm.
The contact material is brass, which is plated with tin for corrosion resistance.
It uses a crimp termination type for reliable connections.
Yes, it features locking lances that ensure secure retention in housing during use.
This connector is part of the FASTIN-FASTON .250 series.
This model is uninsulated, allowing for a compact connection suitable for dense wiring assemblies.
It is suitable for automotive harness wiring and household appliances like electric ranges, washers, and dryers.
The orientation of this connector is straight.
The country of origin for this connector is India.
The connector features tin plating on the brass contact material for enhanced corrosion resistance.
