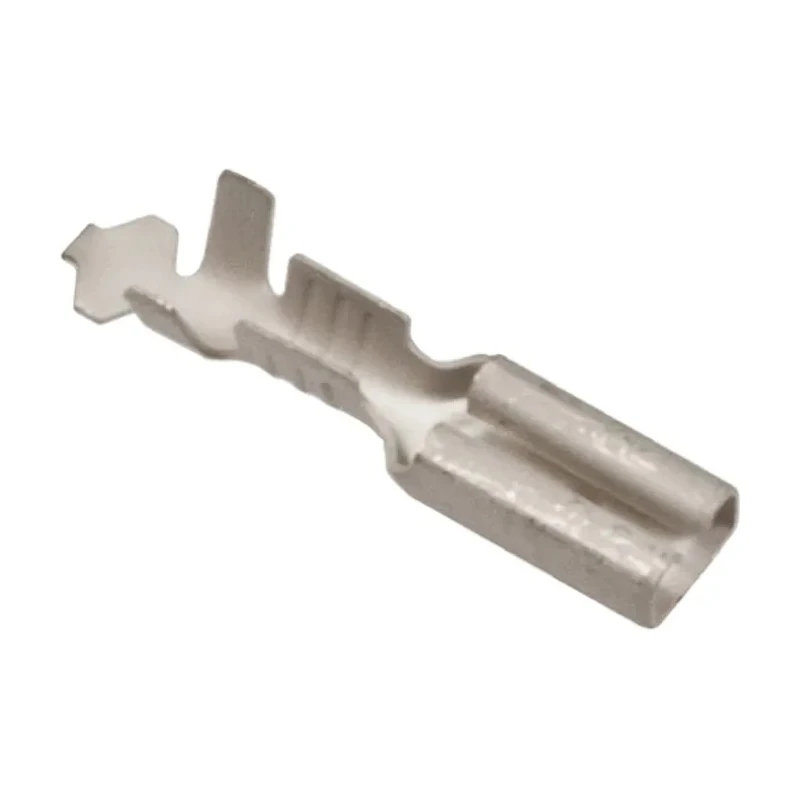

TE Connectivity Black Uninsulated Female Spade Connector Crimp 20 AWG to 17 AWG 2.19 x 2.19 mm Tab Size 160534-2
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Orientation | Straight |
| Model | 160534-2 |
| Gender | Female |
| Insulation | Uninsulated |
| Overall Length | 14mm |
| Contact Material | Brass |
| Series | FASTON .110 |
| Termination Type | Crimp |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 17AWG |
| Tab Width | 2.8mm |
| Tab Thickness | 0.81mm |
| Tab Size | 2.19 x 2.19 mm |
Key Features
- Uninsulated design suitable for direct electrical contact.
- Black colour with brass contact material plated with tin for corrosion resistance.
- Tab size 2.19 x 2.19 mm with 2.8 mm width and 0.81 mm thickness.
- Straight orientation with overall length of 14 mm for tight fit connections.
- Specifically designed for quick application with uniform reliability.
- Excellent mechanical and electrical performance resists vibration and corrosion.
- Commonly used in appliance, automotive, industrial controllers, and telecom equipment.
- Part of the FASTON .110 series ensuring precise crimp tensile strength and conductivity.
Product Description
TE Connectivity 160534-2 is a black, uninsulated female spade connector designed for crimped wire termination for wire sizes from 20 AWG to 17 AWG, featuring a precise 2.19 x 2.19 mm tab size. Its brass contact material with tin plating ensures durable conductivity and resistance against corrosion.
This connector belongs to the FASTON .110 series known for quick application and uniform electrical and mechanical performance. Its uninsulated construction supports direct electrical contact with minimal resistance. The straight orientation and an overall length of 14 mm allow secure, reliable connections in tight spaces.
Ideal for use across various industrial and commercial applications such as appliance manufacturing, automotive wiring harnesses, industrial controllers, computer peripherals, test equipment, and telecommunications devices, where consistent electrical performance and mechanical stability are critical.
The crimp termination options offer excellent tensile strength and resistance to vibration, ensuring long-lasting connections. The tapered walls and step-down insulation support barrel design prevent over-insertion and compensate for insulation thickness during connection, enhancing reliability.
TE Connectivity’s commitment to quality and industry standards is reflected in the design of this connector, optimized for professional wiring and assembly needs. Uninsulated design for direct electrical contact and crimp application reliability.
Brass contacts plated with tin for corrosion and vibration resistance. Precise dimensions: 2.19 x 2.19 mm tab size, 2.8 mm width, and 0.81 mm thickness. Overall connector length of 14 mm suitable for compact applications.
FASTON .110 series standard ensures compatibility and consistent performance. Used broadly in appliance, automotive, industrial, and telecom sectors. Crimp tooling matches to achieve optimal mechanical strength and conductivity.
Browse our extensive range of Spade Connectors and electronic components at EnvMart for all your industrial and manufacturing supply needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This spade connector is designed for wire sizes from 20 AWG to 17 AWG, which corresponds to a minimum wire size of 0.5 mm² and a maximum wire size of 1 mm².
The tab size of this connector is 2.19 x 2.19 mm, with a tab width of 2.8 mm and a tab thickness of 0.81 mm.
The overall length of this female spade connector is 14 mm.
The contact material of this connector is brass, which is plated with tin for corrosion resistance.
This connector is uninsulated, allowing for direct electrical contact.
The orientation of this spade connector is straight, facilitating easy connections in tight spaces.
This connector belongs to the FASTON .110 series, which is known for its quick application and reliable performance.
This connector uses a crimp termination type, ensuring secure connections with excellent tensile strength.
It is commonly used in appliance manufacturing, automotive wiring harnesses, industrial controllers, computer peripherals, and telecommunications devices.
The country of origin for this product is China.
This model offers excellent mechanical and electrical performance, resisting vibration and corrosion, ensuring reliable connections.
The tapered walls and step-down insulation support barrel design prevent over-insertion and compensate for insulation thickness, enhancing connection reliability.
