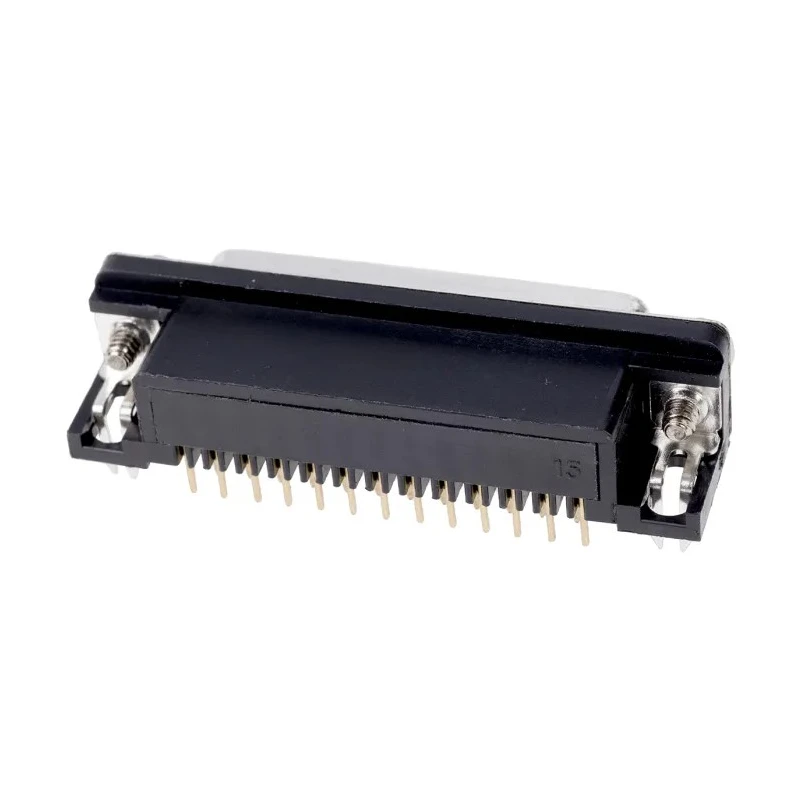

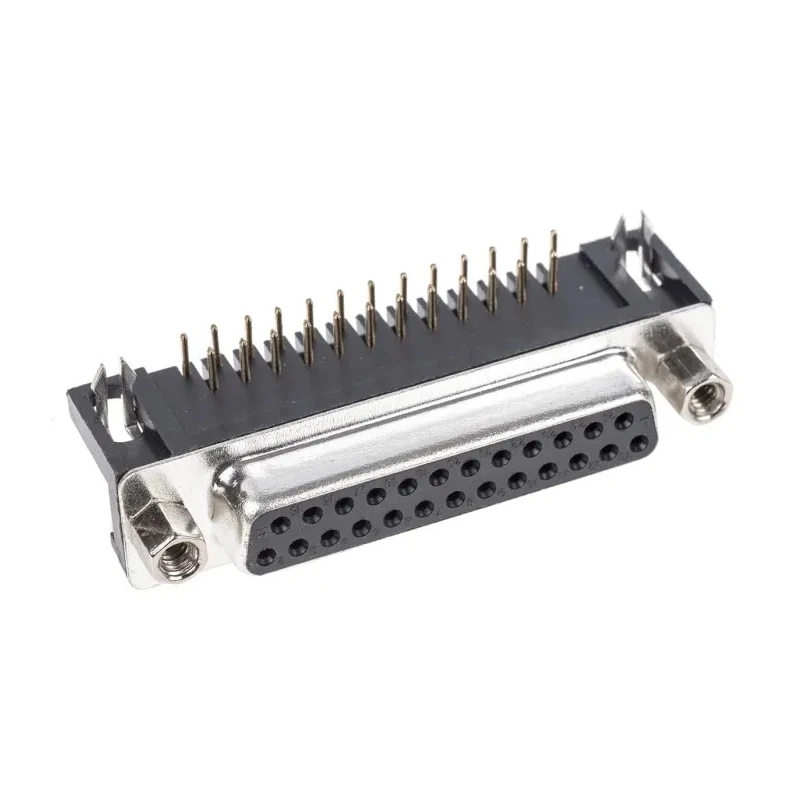

ASSMANN WSW D-Sub Connector 25 Contacts Right Angle 2.77 mm Pitch Through Hole Female A-DF 25 A/KG-T2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Right Angle |
| Current | 3A |
| Model | A-DF 25 A/KG-T2 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | A-DF |
| Mounting Hardware | 4 to 40 UNC Screw Lock |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 2.77mm |
| Contact Plating | Nickel, Gold |
| Number of Contacts | 25 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | D-Sub |
| D-Sub Shell Size | DF-25 |
Key Features
- The connector supports a current rating of 3 amperes.
- It uses a 4 to 40 UNC screw lock mounting hardware for secure installation.
- The housing material is durable polybutylene terephthalate.
- Operating voltage is rated at 250 volts for reliable performance.
- Designed to operate between -40°C and 105°C temperature range.
- Termination type is solder, suitable for PCB connections.
- Contact material is brass with nickel and gold plating for enhanced conductivity and corrosion resistance.
- Manufactured in China with a robust A-DF series design.
Product Description
ASSMANN WSW A-DF 25 A/KG-T2 is a high-quality Right Angle D-Sub Connector with 25 female contacts arranged at a 2.77 mm pitch, ideal for through-hole PCB mounting applications. This connector operates at a maximum current of 3A and voltage rating of 250V, ensuring compatibility with a variety of electronic and industrial equipment.
Constructed with a polybutylene terephthalate housing, this connector offers excellent mechanical strength and thermal stability, operating reliably between -40°C and 105°C. Its contacts are made from brass, plated with nickel and gold to provide superior electrical conductivity and corrosion resistance for long service life.
The mounting hardware includes a 4 to 40 UNC screw lock, allowing secure and stable installation on printed circuit boards. The connector’s solder termination ensures a firm connection to PCBs, making it suitable for industrial automation, instrumentation, communication devices, and other electronic assemblies requiring robust D-Sub connectivity.
Designed in accordance with the A-DF series, this connector provides right angle orientation for space-saving PCB layout designs. Its female connector gender fits various male D-Sub connectors with matching specifications.
25 contacts arranged with a 2.77 mm pitch for precise signal transmission. Rated for 3A current and 250V voltage handling in demanding environments. Durable polybutylene terephthalate housing ensures mechanical and thermal reliability.
Gold and nickel plated brass contacts for excellent performance and corrosion resistance. Through-hole solder mounting type for secure PCB attachment. 4 to 40 UNC screw lock mounting hardware secures the connector firmly.
This ASSMANN WSW D-Sub Connector is manufactured in China and remains a trusted component in electronic component sourcing for power, data, and control signal connector applications. Explore the full range of ASSMANN WSW connectors at EnvMart for reliable electronic component solutions.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports a current rating of 3 amperes.
It is rated for a maximum operating voltage of 250 volts.
This connector operates reliably between -40°C and 105°C.
The housing is made of polybutylene terephthalate, and the contacts are brass plated with nickel and gold.
It features 25 female contacts arranged at a 2.77 mm pitch.
It utilizes a through-hole mounting type with 4 to 40 UNC screw lock hardware for secure installation.
The termination type is solder, suitable for PCB connections.
It is suitable for industrial automation, instrumentation, communication devices, and other electronic assemblies requiring robust D-Sub connectivity.
This model features a right angle orientation, which is ideal for space-saving PCB layout designs.
It is manufactured in China.
The contacts are plated with nickel and gold to enhance conductivity and corrosion resistance.
This connector is part of the A-DF series.
