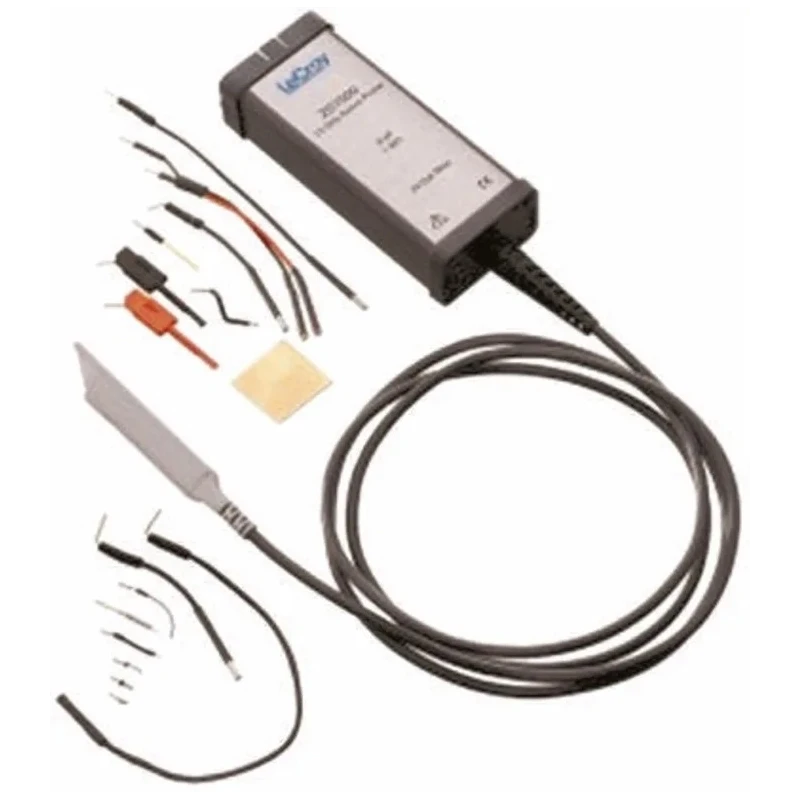

Teledyne LeCroy ZS Series High Impedance Active Oscilloscope Probe Voltage Type 1 GHz Bandwidth 10:1 Attenuation ZS1000
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Teledyne LeCroy |
| Model | ZS1000 |
| Connector Type | ProBus |
| Bandwidth | 1GHz |
| Series | ZS |
| Probe type | Voltage |
| Attenuation | 10:1 |
| Maximum Common Mode Input Voltage | 20V |
| Attenuation 10 | 1 |
Key Features
- High 1 MΩ input resistance and low 0.9 pF input capacitance ensure low circuit loading.
- Supports bandwidth up to 1 GHz for accurate signal fidelity.
- Features a ProBus connector for seamless control integration with oscilloscopes.
- Maximum common mode input voltage of 20 V for robust signal handling.
- Includes a wide variety of probe tips and ground accessories for diverse probing scenarios.
- Suitable for automotive, power applications, motor drive development, and product design.
- Ideal for use with 200 to 600 MHz oscilloscopes.
- Compact form factor facilitates testing in challenging environments.
Product Description
Teledyne LeCroy ZS1000 Oscilloscope Probe from the ZS Series is a high impedance active probe designed for voltage type measurements with a bandwidth of 1 GHz and an attenuation ratio of 10:1. It features a ProBus connector that integrates control directly from compatible Teledyne LeCroy oscilloscopes.
The probe offers an input resistance of 1 MΩ combined with a low input capacitance of 0.9 pF, minimizing circuit loading and preserving signal integrity across frequencies. This high signal fidelity is essential for precise measurements in both research and industrial testing environments.
Designed for robustness, the probe supports a maximum common mode input voltage of 20 V and a ±8 V input dynamic range with a ±12 V offset. Its compact design includes an extensive range of probe tips and grounding accessories, enabling use in tightly spaced test points and complex circuitry layouts.
Applications for the ZS1000 include automotive testing, power electronics, motor drive development, and product design where accurate high frequency voltage measurement is critical. This probe is particularly suited to oscilloscopes with bandwidths between 200 MHz and 600 MHz.
High impedance and low capacitance for minimal performance impact. Full system bandwidth compatibility with Teledyne LeCroy oscilloscopes up to 4 GHz. Integrated ProBus interface supporting oscilloscope front panel control.
Wide range of included accessories for versatility in probing. Compact and robust form factor for use in demanding industrial applications.
The package includes connectors such as a square pin adapter, IC tips, bent tips, channel identification clips in four colors, copper tape pads, and various ground leads and probe tips to accommodate a broad range of testing needs.
This product is manufactured in Germany and delivered in new condition. EnvMart customers can explore additional test and measurement accessories and oscilloscopes to complement this sophisticated Oscilloscope Probe.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ZS1000 oscilloscope probe has a bandwidth of 1 GHz, allowing for accurate signal fidelity in high-frequency measurements.
It features an input resistance of 1 MΩ and a low input capacitance of 0.9 pF, which minimizes circuit loading and preserves signal integrity.
This probe is suitable for automotive testing, power electronics, motor drive development, and product design where accurate high-frequency voltage measurement is critical.
The ZS1000 supports a maximum common mode input voltage of 20 V, allowing for robust signal handling.
This model uses a ProBus connector, which enables seamless control integration with compatible Teledyne LeCroy oscilloscopes.
The package includes a variety of probe tips, ground leads, channel identification clips, and copper tape pads, providing versatility for diverse probing scenarios.
The ZS1000 has an attenuation ratio of 10:1, which is suitable for voltage type measurements.
The ZS1000 offers a ±8 V input dynamic range with a ±12 V offset, accommodating various measurement conditions.
This oscilloscope probe is manufactured in Germany.
The compact form factor of the ZS1000 facilitates testing in challenging environments and tight spaces, making it ideal for complex circuitry layouts.
The ZS1000 is particularly suited for use with oscilloscopes that have bandwidths between 200 MHz and 600 MHz, and it is compatible with Teledyne LeCroy oscilloscopes up to 4 GHz.
The ZS1000 is part of the ZS Series of high impedance active probes from Teledyne LeCroy.
