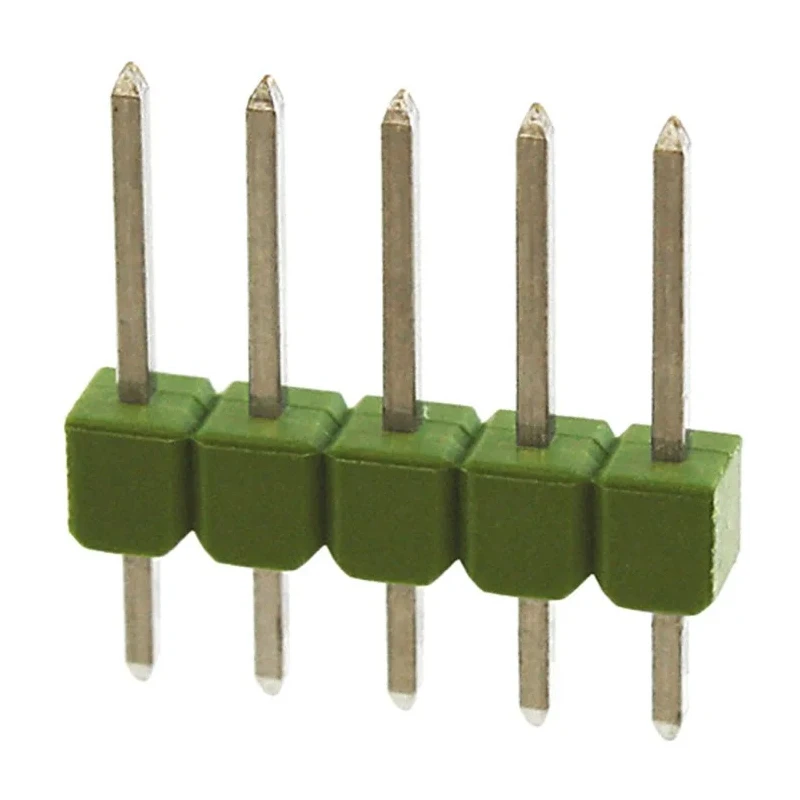

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 826926-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826926-5 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Series AMPMODU MOD II for reliable PCB connections.
- 5 contact points provide stable electrical signal transmission.
- 2.54 mm pitch and 1 row configuration ensure compact board layout.
- Unshrouded straight orientation for easy through-hole mounting.
- Constructed with brass contact material plated with tin for optimal conductivity.
- Housing made from durable polybutylene terephthalate resin.
- Supports operating voltage up to 750 V and current up to 3 A.
- Suitable for broad industrial applications including automotive and telecommunications.
Product Description
TE Connectivity 826926-5 AMPMODU MOD II Series Straight Through Hole Pin Header features a 5-contact, 2.54 mm pitch single row configuration ideal for board-to-board and wire-to-board interconnections. Manufactured with precision brass contacts and tin plating, this unshrouded header provides reliable solder termination and mechanical stability.
The housing material is polybutylene terephthalate, delivering excellent durability across an operating temperature range of -65°C up to 105°C. This pin header supports a maximum voltage of 750 V and a current rating of 3 A, making it suitable for heavy-duty electronic components in automotive controls, industrial test equipment, computers, telecommunications, medical instruments, storage equipment, and various appliance applications.
The modular AMPMODU MOD II series supports breakaway pin headers that can be tailored to size requirements, reducing labour time and facilitating efficient assembly. The straight, through-hole mount style simplifies installation and ensures secure PCB connectivity.
Key features include robust brass contacts with tin plating, a single-row 2.54 mm pitch for compact layouts, and versatile application compatibility across industrial and commercial electronic assemblies.
Series AMPMODU MOD II provides reliability and ease of use. 5 contact straight pin header designed for through-hole mounting. Durable polybutylene terephthalate housing for high temperature tolerance. Supports 750 V voltage and 3 A current ratings.
Operating temperature from -65°C to 105°C ensures environmental resilience. Solder termination type offers strong mechanical and electrical connections. Suitable for automotive, industrial, telecom, and medical device use.
Flexible breakaway design to customize row length. Unshrouded design enables easy visual inspection and soldering.
This TE Connectivity AMPMODU MOD II Pin Header 826926-5 is a trusted solution for design engineers seeking a high-quality, versatile PCB header. Browse more TE Connectivity products and PCB Headers at EnvMart for extensive electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this pin header is 750 V.
This model supports a current capacity of up to 3 A.
The pitch size of this pin header is 2.54 mm.
It is constructed with brass contacts plated with tin and a housing made from polybutylene terephthalate resin.
The operating temperature range for this pin header is from -65°C to 105°C.
This pin header has 5 contacts.
This model uses solder termination for secure connections.
The orientation of this pin header is straight and unshrouded.
This pin header supports through-hole mounting.
It is suitable for applications in automotive, telecommunications, industrial test equipment, and medical devices.
The tail pin length of this model is 3.2 mm.
This pin header supports board-to-board and wire-to-board connector systems.
