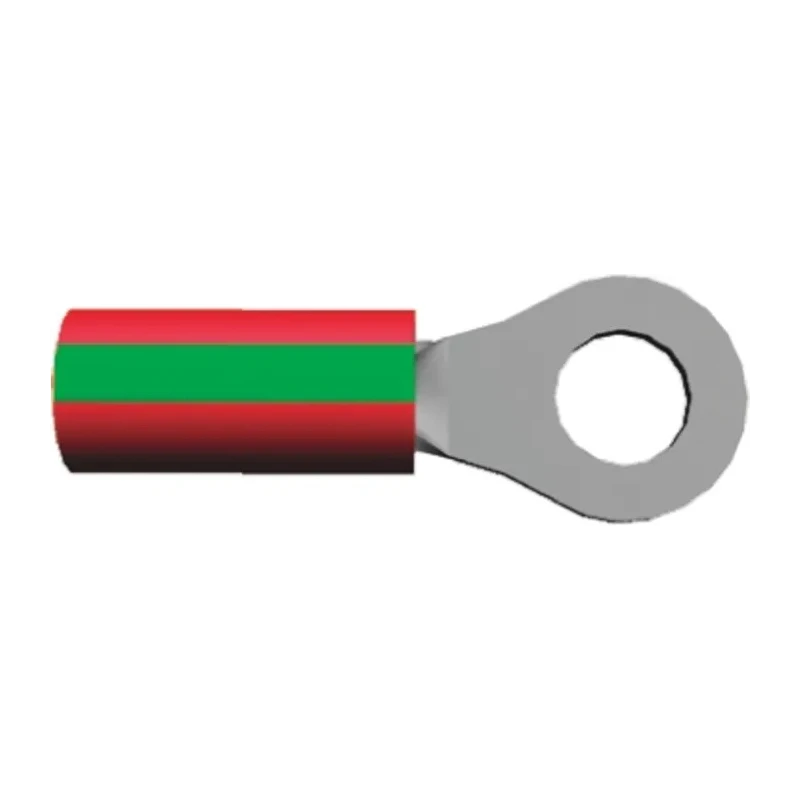

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 22 AWG to 16 AWG Wire Size Red 1-320551-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| THICKNESS | 0.79mm |
| Insulation | Insulated |
| Overall Length | 23.01mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 7.92mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed with a high conductivity copper body for efficient electrical performance.
- Features a copper sleeve inside the barrel for enhanced wire insulation support.
- Serrations in the wire barrel provide maximum contact and tensile strength after crimping.
- Colour-coded red nylon outer sleeve for easy wire size and tooling identification.
- Designed with a funnelled wire entry to enable fast and secure wire insertion.
- Complies with RoHS standards ensuring environmental safety.
- Operates reliably up to a maximum temperature of 105°C.
- Suitable for a wide range of industrial applications including instrumentation, power supplies, panel boxes, motors, and aerospace.
Product Description
TE Connectivity 1-320551-2 PIDG insulated ring terminal offers a reliable and uniform crimp solution designed for use with M4 stud size and wire sizes ranging from 22 AWG to 16 AWG. This ring terminal incorporates a precision-formed, high conductivity copper body combined with a copper sleeve inside the barrel that improves wire insulation support and prevents fraying. The barrel's serrated surface maximizes contact and tensile strength after crimping.
The terminal is encased in a red nylon outer sleeve which provides color coding for quick wire size identification and tooling compatibility. The funnelled wire entry design prevents turned-back wire strands and allows for efficient wire insertion, facilitating high-speed production environments.
These PIDG terminals meet RoHS compliance, ensuring environmentally friendly materials and manufacturing. With its 0.79 mm thickness and an overall length of 23.01 mm, the terminal features an outer ring diameter of 7.92 mm and an inner ring diameter of 4.34 mm, suitable for robust electrical connections.
The product's maximum operating temperature of 105°C supports demanding applications across various industries, including instrumentation and control systems, lighting, power supplies, panel assemblies, transportation equipment, lifting apparatus, motors, aerospace technology, and electrical appliances.
High conductivity copper body for excellent electrical efficiency. Copper sleeve reinforces wire insulation for greater durability and reliability. Serrated barrel ensures strong mechanical and electrical connection after crimping.
Colour-coded nylon insulation sleeve simplifies wire size identification. Funnelled design facilitates quick wire insertion and reduces production time. Meets RoHS environmental compliance standards. Designed for wire sizes 22 AWG to 16 AWG with M4 stud size compatibility.
Maximum operating temperature up to 105°C for industrial applications.
This TE Connectivity PIDG insulated ring terminal is an ideal choice for diverse industrial, laboratory, manufacturing, HVAC, electrical, and transportation wiring needs. For more options in Ring Terminals and power connectors, explore the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This ring terminal is designed for wire sizes ranging from 22 AWG to 16 AWG.
It operates reliably up to a maximum temperature of 105°C.
The contact material is high conductivity copper, which enhances electrical performance.
The outer ring diameter is 7.92 mm.
It features a nylon insulation sleeve, which provides color coding for easy identification.
It has a funnelled wire entry design that allows for fast and secure wire insertion, preventing turned-back wire strands.
The inner ring diameter is 4.34 mm.
This terminal complies with RoHS standards, ensuring environmentally friendly materials and manufacturing.
The thickness of this terminal is 0.79 mm.
It is suitable for a wide range of industrial applications including instrumentation, power supplies, panel boxes, motors, and aerospace.
This terminal is compatible with M4 stud sizes.
The serrated surface of the barrel maximizes contact and tensile strength after crimping, ensuring a strong mechanical connection.
