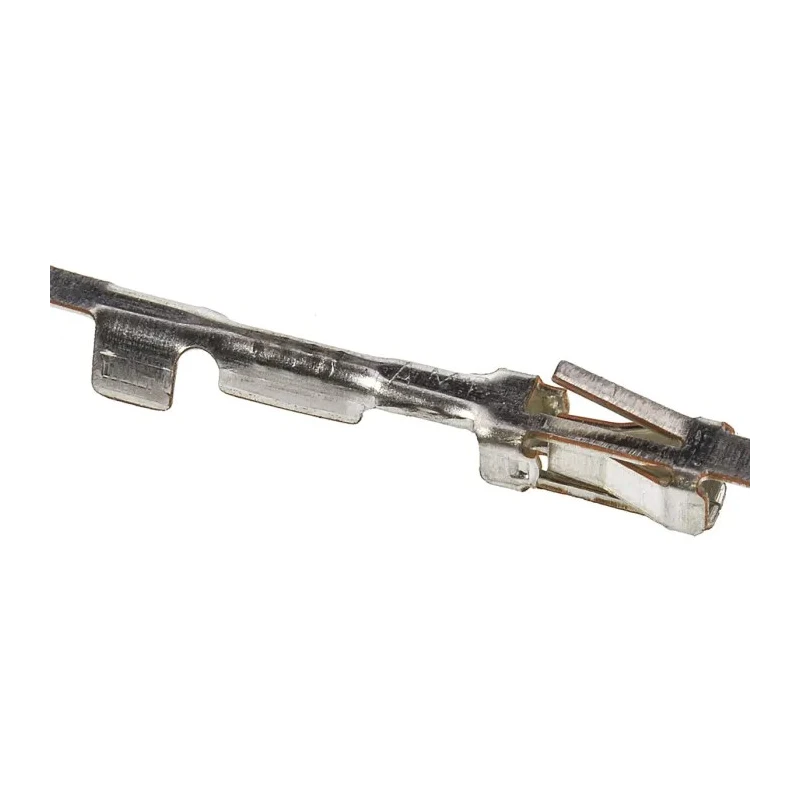

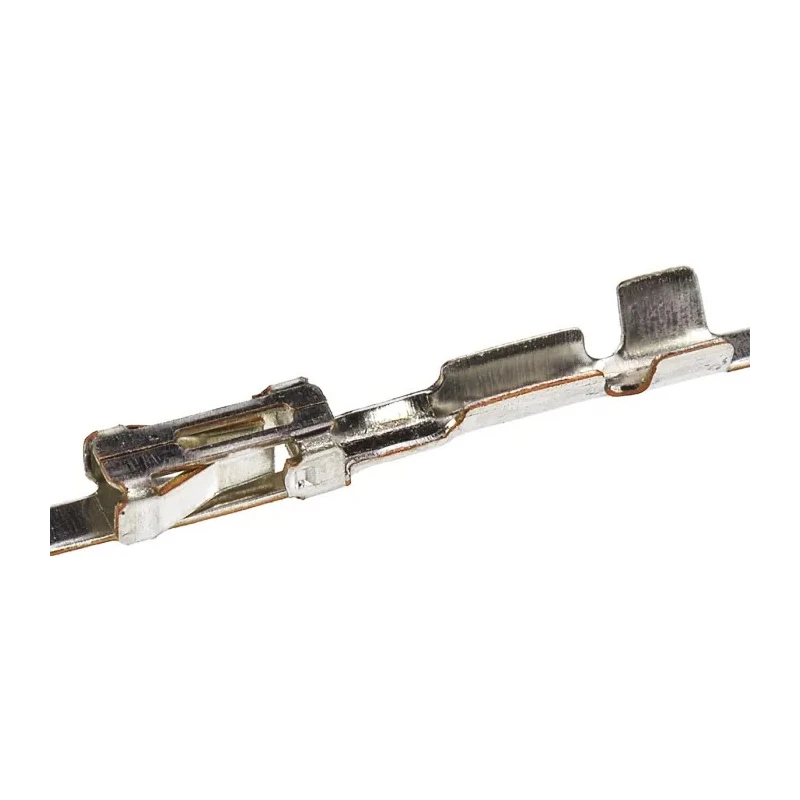

TE Connectivity AMPMODU MOD IV Series Female Crimp Terminal, Tin Plated, Phosphor Bronze Contacts, 32 AWG Min, 28 167021-3

TE Connectivity 167021-3 female crimp terminal is engineered for reliable wire-to-board connections within the AMPMODU MOD IV connector housing system. Constructed with phosphor bronze contacts and tin plating, it ensures excellent electrical performance and durability.

Designed to support wire gauges ranging from 32 AWG to 28 AWG (0.03 mm² to 0.09 mm²), this crimp terminal features a termination type optimized for secure mechanical and electrical bonding. Its low maximum contact resistance of 12 mΩ improves energy efficiency in electronic assemblies.

The component operates effectively within a broad temperature range from -65°C up to 105°C, suitable for demanding industrial, manufacturing, telecommunications, and electronic applications.

It complies with rigorous UL94 flammability standards including HB, V-0, and V-1 ratings, certifying its adherence to safety protocols in electrical installations.

This crimp terminal is part of the widely adopted 2.54 mm pitch AMPMODU modular interconnect system, enabling versatile wire-to-board or board-to-board connections. Its female gender design allows mating with shrouded male headers, facilitating modular connectivity in complex electronic circuitry.

Female crimp terminal compatible with AMPMODU MOD IV connectors. Phosphor bronze contact material with tin plating for corrosion resistance. Supports 32 AWG min and 28 AWG max wire sizes. Low contact resistance ensuring efficient electrical conduction.

Wide operating temperature range from -65°C to 105°C. Meets UL94-HB, UL 94V-0, and UL 94V-1 flammability standards. Industry-standard 2.54 mm pitch modular design.

This product serves diverse industrial sectors including electronics manufacturing, telecommunications, industrial automation systems, and commercial electronic equipment. It enhances production efficiency by enabling reliable, repeatable wire connections in automated assembly processes.

Explore more high-quality Crimp Terminals and connectors to meet your wiring and interconnection requirements efficiently and securely at EnvMart.
