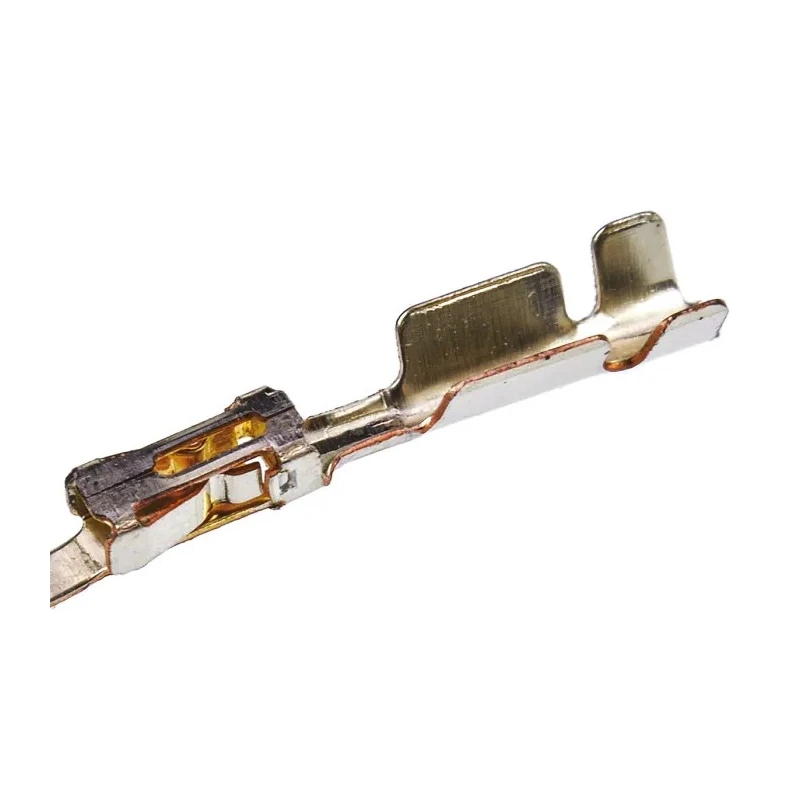

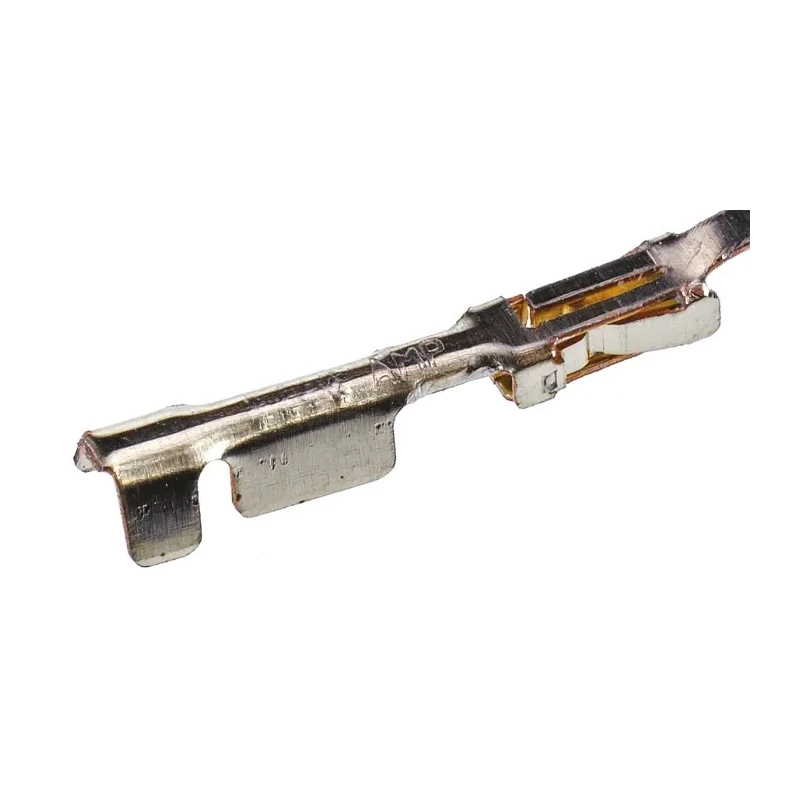

TE Connectivity AMPMODU MOD V Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max 166309-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 18.03mm |
| Model | 166309-2 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD V |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU MOD IV Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- Suitable for use with AMPMODU MOD IV connector housing.
- Gold-plated phosphor bronze contact material ensures durability and conductivity.
- Rated for a current capacity of 3 amps for efficient power transmission.
- Operates within a temperature range of -65°C to 105°C, suitable for diverse environments.
- Crimp termination type for secure wire attachment.
- Maximum contact resistance of 12 milliohms maintains signal integrity.
- Designed for industrial, electronic, and manufacturing applications.
Product Description
TE Connectivity 166309-2 is a female Crimp Terminal specifically engineered for the AMPMODU MOD V series. It accommodates wire sizes ranging from a minimum of 24 AWG up to a maximum of 20 AWG, offering versatility in wiring options for electronic assemblies.
The terminal features gold-plated contacts made from phosphor bronze, ensuring excellent corrosion resistance and electrical conductivity. It supports a continuous current rating of 3 amps, making it suitable for various low power electronic applications.
Its operational temperature range from -65°C to 105°C allows reliable performance in harsh industrial, laboratory, and manufacturing environments. The terminal’s length of 18.03 mm facilitates easy integration with AMPMODU MOD IV connector housings.
The crimp termination type provides a secure and stable mechanical and electrical connection, minimizing the risk of loose wiring and signal loss. The maximum contact resistance is measured at 12 milliohms, ensuring signal integrity in critical circuits.
Suitable for use with AMPMODU MOD IV connector housing. Gold-plated phosphor bronze contact material ensures durability and conductivity. Rated for a current capacity of 3 amps for efficient power transmission. Operates within a temperature range of -65°C to 105°C, suitable for diverse environments.
Length of 18.03 mm enables compatibility with modular connector systems. Crimp termination type for secure wire attachment. Maximum contact resistance of 12 milliohms maintains signal integrity. Designed for industrial, electronic, and manufacturing applications.
This terminal is ideal for electronics manufacturing, industrial automation, and assembly line applications requiring reliable wire-to-board connections. Its robustness and precision make it suitable for laboratories and commercial electronic devices.
Explore more from TE Connectivity on EnvMart for a wide range of connectors and electronic components, engineered to meet industry standards and customer demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal is rated for a current capacity of 3 amps, making it suitable for low power electronic applications.
It operates within a temperature range of -65°C to 105°C, suitable for diverse environments.
This model accommodates wire sizes ranging from a minimum of 24 AWG to a maximum of 20 AWG.
The terminal has a length of 18.03 mm, facilitating compatibility with modular connector systems.
It features gold-plated contacts made from phosphor bronze, ensuring excellent corrosion resistance and electrical conductivity.
The terminal uses a crimp termination type, providing a secure and stable mechanical and electrical connection.
The maximum contact resistance is measured at 12 milliohms, which helps maintain signal integrity.
Yes, it is designed for industrial, electronic, and manufacturing applications requiring reliable wire-to-board connections.
It is suitable for use with AMPMODU MOD IV connector housing.
The country of origin for this terminal is India.
This terminal is ideal for electronics manufacturing, industrial automation, and assembly line applications.
The gold plating on the contacts ensures durability and enhances electrical conductivity, making it suitable for critical circuits.
