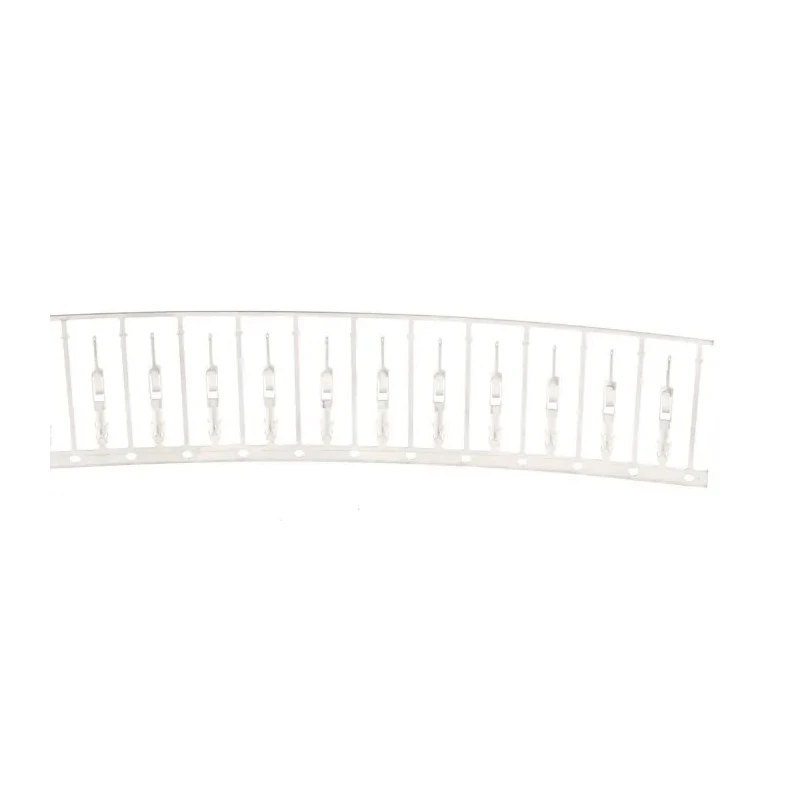

TE Connectivity FFC Series Male Crimp Terminal 26 AWG Min Crimp 22 AWG Max 2A Current Crimp Termination 7.5mm 1-86557-9

TE Connectivity 1-86557-9 FFC Series Male Crimp Terminal is engineered for use with flexible flat cable (FFC) connector housings, designed to provide secure electrical connections in electronic, instrumentation, and communication equipment. It supports a current rating of 2 amperes and wire sizes ranging from 26 AWG minimum to 22 AWG maximum, making it suitable for a broad range of wire gauge applications.

The terminal is manufactured from high-quality phosphor bronze material with tin plating overall to resist corrosion and maintain reliable conductivity. The contact is plated over a nickel base and features a crimp termination type for strong mechanical and electrical connection to the wire. Its compact 7.5mm length allows for efficient space utilization, particularly in dense electronic assemblies.

Operational temperature ranges from -55°C to 105°C, ensuring functionality under various environmental conditions including industrial and commercial electronics. The maximum contact resistance is rated at 45 milliohms, which helps to minimize power loss and heat generation during operation.

This product adheres to the 2.54mm Tyco AMPMODU™ MOD II series, providing compatibility and interchangeability with other components of the range for wire-to-board and wire-to-wire applications. It is suitable for use in industrial automation systems, electrical connectors manufacturing, and electronic components assembly.

Compatible with FFC connector housings for reliable male pin crimp connection. Supports 26 to 22 AWG wire sizes to accommodate various conductor thicknesses. Manufactured from phosphor bronze with tin plating for corrosion resistance.

2A current rating suitable for low current electronic applications. Crimp termination ensures secure and durable wire attachment. 7.5mm length optimized for compact connector designs. Operates reliably between -55°C and 105°C environmental temperatures.

Designed according to AMPMODU™ MOD II 2.54mm standard for wire-to-board applications. Maintains a low contact resistance of 45mΩ for efficient conduction.

TE Connectivity's FFC Series Male Crimp Terminal offers robust, high-quality terminals essential for manufacturing and repair of electronic assemblies in sectors such as industrial automation, communications, and instrumentation. For more products in electronic component connectivity and reliable industrial hardware, explore the EnvMart electronics category.
