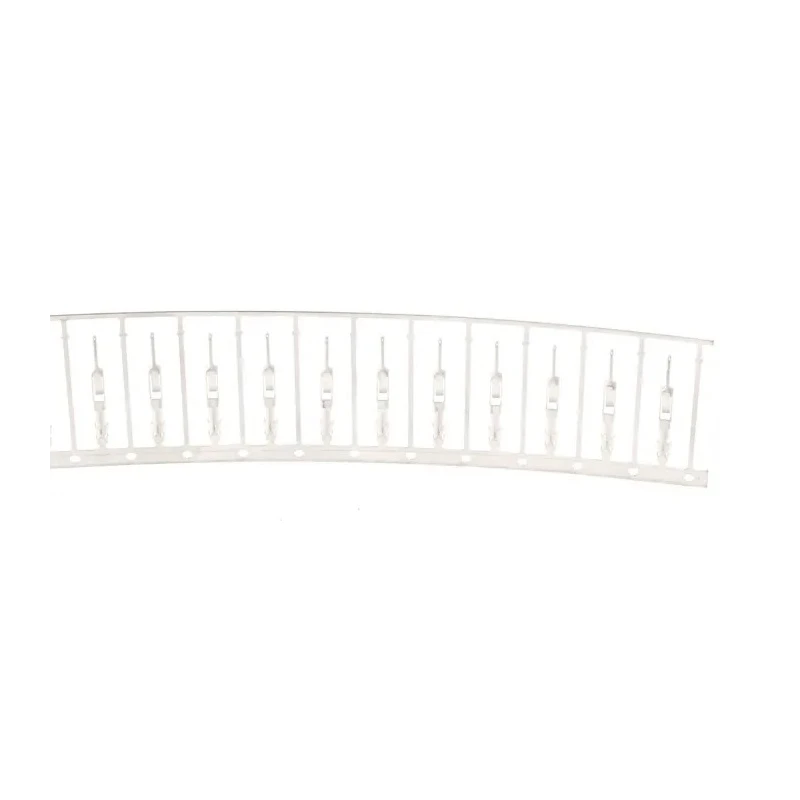

TE Connectivity FFC Series Male Crimp Terminal 2A Current 7.5mm Length Tin Plated Phosphor Bronze Contact Material 1-86557-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 2A |
| Length | 7.5mm |
| Gender | Male |
| Contact Material | Phosphor Bronze |
| Series | FFC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | FFC Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.12mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 45mΩ |
| 509-2183 | 0.4μm Gold plated on contact area, Gold Flash on remainder, loose |
| 668-9416 | 0.4μm Gold plated on contact area, Gold Flash on remainder, strip |
| 668-9410 | Tin plated all over, strip |
| 668-9429 | Tin plated all over, loose |
Key Features
- Manufactured using phosphor bronze for durable contact performance.
- Tin plated contact ensures corrosion resistance and reliable conductivity.
- Crimp termination type suitable for precision applications.
- Compact 7.5mm length facilitates tight space installations.
- Operates efficiently within -55°C to 105°C temperature range.
- Compatible with FFC connector housing applications.
- Maximum contact resistance limited to 45 milliohms for signal integrity.
- Meets industrial requirements without specific formal certifications.
Product Description
TE Connectivity 1-86557-9 Male Crimp Terminal forms part of the FFC series designed for wire-to-board and wire-to-wire applications requiring a current capacity of 2 amperes. The male gender contact is crafted from phosphor bronze and features tin plating to provide enhanced corrosion resistance and electrical conductivity. With compatibility for 26 AWG minimum and 22 AWG maximum wire sizes (0.12mm² to 0.4mm²), this crimp terminal is suitable for precise and reliable contact performance.
The compact length of 7.5mm allows for installation in constrained spaces encountered in electronic components and power connector assemblies. The terminal operates reliably across a wide temperature range of -55°C to 105°C, making it suitable for industrial, electronic, and power connector applications.
This product is part of the AMPMODU Mod II range using a 2.54mm pitch, allowing intermateability with corresponding female contacts in PCB or cable mount receptacles. While it is supplied as a tin-plated strip contact, alternatives exist with gold plating for enhanced applications.
These Crimp Terminals are critical in assembly lines requiring efficient, quality wire termination methods. Manufactured from phosphor bronze with tin plating. Supports wire sizes from 26 AWG to 22 AWG. Rated for 2A current in electronic connector assemblies.
Suits operating temperatures from -55°C up to 105°C. Length of 7.5mm ensures compact installation. Compatible with FFC connector housings. Maximum 45mΩ contact resistance ensures reliability. Part of broader AMPMODU Mod II 2.54mm pitch series.
Industrial use cases include electronics manufacturing, PCB assembly, industrial automation connectors, and power connector applications. This product provides efficient and reliable crimp connections integral to modern electronic interconnections.
Explore our extensive range of TE Connectivity products and connect with industry-leading electronic components at EnvMart for expert solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a current capacity of 2 amperes.
The length of this terminal is 7.5mm, making it suitable for compact installations.
It is compatible with wire sizes ranging from 26 AWG (0.12mm²) to 22 AWG (0.4mm²).
The maximum operating temperature for this terminal is 105°C.
The minimum operating temperature for this terminal is -55°C.
The maximum contact resistance is limited to 45 milliohms, ensuring signal integrity.
This crimp terminal uses a crimp termination type, suitable for precise applications.
Yes, this model is specifically designed for use with FFC connector housing applications.
The contact material is made from phosphor bronze, which provides reliable conductivity and corrosion resistance.
Yes, alternatives with gold plating are available for enhanced applications.
This terminal is part of the FFC series and is designed for wire-to-board and wire-to-wire applications.
The country of origin for this crimp terminal is India.
