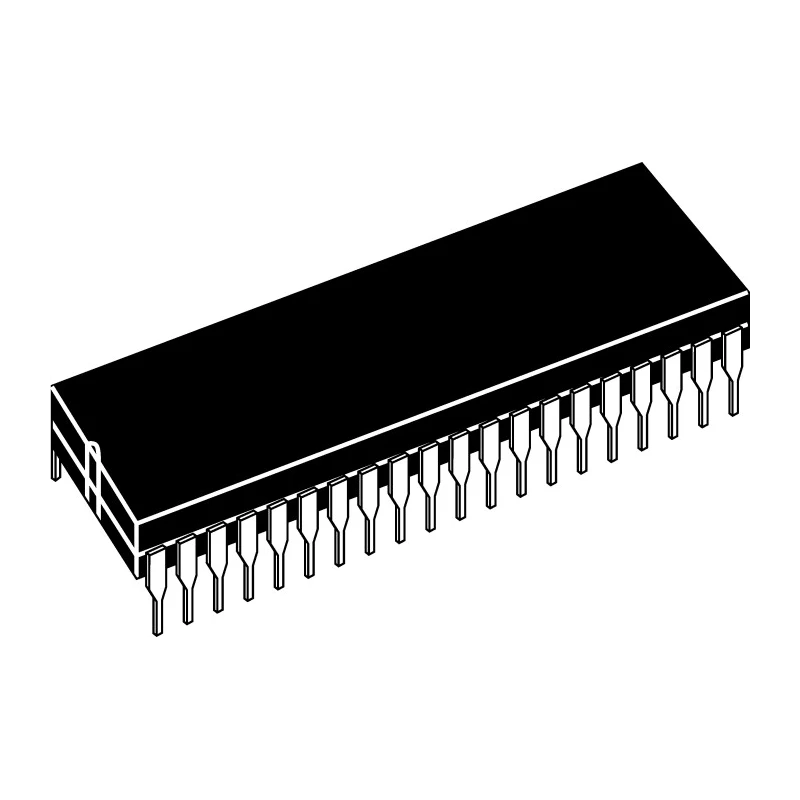

Microchip 8-bit PIC Microcontroller 32 MHz 256B Flash 40-Pin PDIP PIC16F1934-I/P
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.95mm |
| Length | 53.21mm |
| Model | PIC16F1934-I/P |
| Width | 14.73mm |
| Mount Type | Through Hole |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Ram size | 256bit |
| Interface Type | EUSART, I2C, SPI |
| Standards/Approvals | RoHS |
| Pin Count | 40 |
| Automotive Standard | AEC-Q101 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 256B |
| Maximum Clock Frequency | 32MHz |
| Number of Programmable I/Os | 36 |
| Analogue Comparators | 2 |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 14 x 10 Bit |
| Program Memory Type | FLASH |
| DACs | 5 bit |
Key Features
- This microcontroller runs at a maximum clock speed of 32 MHz for efficient processing.
- It features 256 bytes of program memory in FLASH type providing reliable code storage.
- The 40-pin PDIP through-hole package supports easy prototyping and mounting.
- Supports multiple serial interfaces including EUSART, I2C, and SPI for versatile communication.
- Equipped with 36 programmable I/Os for extensive device control and interaction.
- Operates within a supply voltage range of 1.8V to 5.5V ensuring broad application compatibility.
- Includes 5-bit DACs, 14 x 10-bit ADC channels, and 2 analogue comparators for precise analog signal processing.
- Integrated peripherals include timers, PWM modules, and capacitive touch sensing capability.
Product Description
Microchip PIC16F1934-I/P is an 8-bit microcontroller based on an enhanced mid-range PIC architecture developed for embedded system design. It operates at a maximum frequency of 32 MHz and features 256 bytes of FLASH program memory to store application code efficiently. This device comes in a 40-pin PDIP package, suitable for through-hole mounting in prototyping and small-scale production environments.
The microcontroller supports multiple communication interfaces, including enhanced USART (EUSART), I2C, and SPI, facilitating versatile connectivity with sensors, peripherals, and other microcontrollers. The 36 programmable input/output pins allow flexible hardware interfacing for custom functionality.
Integrated analog peripherals such as 5-bit DACs, 14 channels of 10-bit ADCs, and two analogue comparators provide precise analog signal handling capabilities essential for industrial control and sensor interfacing.
Power efficiency is enhanced through nanoWatt XLP technology, lowering power consumption during operation and standby, which is crucial for battery-powered and remote applications. The microcontroller operates reliably across a wide temperature range from -40°C to +85°C, meeting automotive AEC-Q101 standard requirements.
The device includes five timers, PWM modules, and capacitive touch sensing (mTouchTM) features, enabling advanced signal generation and user interface options in embedded products.
This microcontroller is ideal for industrial automation, instrumentation, automotive electronics, and consumer device applications. Robust packaging and pin compatibility allow ease of integration into existing designs. Low power modes and oscillators support diverse power saving strategies.
Development tools and software support by Microchip simplify design, debugging, and deployment.
Microchip's PIC16F1934-I/P combines performance, integration, and low power for efficient embedded systems development. Explore the Microcontroller category for similar products and solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 32 MHz.
It features 256 bytes of program memory in FLASH type for code storage.
The microcontroller operates within a supply voltage range of 1.8V to 5.5V.
This unit includes 36 programmable input/output pins for extensive device control.
The dimensions of this microcontroller are 53.21 mm in length, 14.73 mm in width, and 4.95 mm in height.
The operating temperature range is from -40°C to +85°C.
It comes in a 40-pin PDIP package suitable for through-hole mounting.
Yes, it meets the automotive AEC-Q101 standard requirements.
The maximum power dissipation for the PIC16F1934-I/P is 800 mW.
