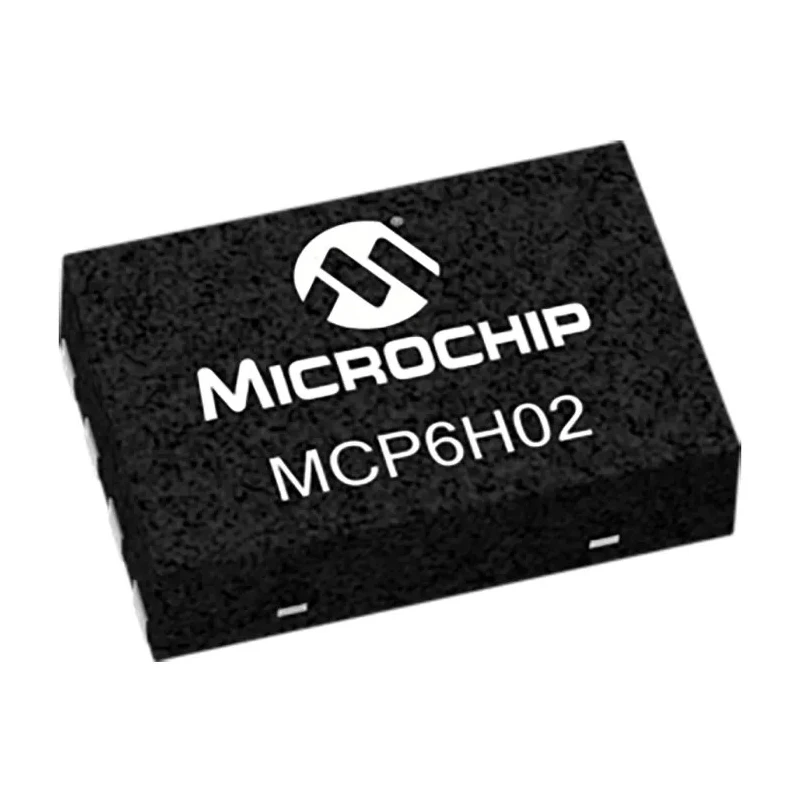

Microchip Operational Amplifier 1.2 MHz Bandwidth 8-Pin TDFN 16V MCP6H02T-E/MNY
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 0.75mm |
| Length | 2mm |
| Model | MCP6H02T-E/MNY |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP6H02 |
| Output Current | 65mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TDFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3.5V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | 10 pA |
| Vos - Input Offset Voltage | 3.5 mV |
| Slew Rate | 0.8V/μs |
| Input Offset Current | 1 pA |
Key Features
- Offers a maximum supply voltage of 16V for versatile operation.
- Low input offset voltage of 3.5 mV ensures signal accuracy.
- Slew rate of 0.8 V/μs supports moderate frequency applications.
- Input bias current of 10 pA and offset current of 1 pA minimize input errors.
- Operates reliably over a wide temperature range from -40°C to 125°C.
- Compact dimensions of 2mm length, 3mm width, and 0.75mm height enable space-saving PCB designs.
- Dual channel configuration accommodates two independent amplifiers in one package.
- Output current capacity up to 65 mA supports driving moderate loads.
Product Description
Microchip MCP6H02T-E/MNY operational amplifier is a precision 2-channel amplifier optimized for industrial and electronic applications requiring stable gain and low distortion. This device operates with a gain bandwidth product of 1.2 MHz and is housed in a compact 8-pin Thin Dual Flat No-lead (TDFN) package ideal for surface mounting on printed circuit boards.
Designed for applications with supply voltages ranging from 3.5 V up to 16 V, it provides flexibility in various industrial, laboratory, and commercial circuits. The low input offset voltage of 3.5 mV and extremely low input bias current of 10 pA together enhance signal fidelity. The slew rate of 0.8 V/μs enables effective amplification of moderate frequency signals with minimal distortion.
This operational amplifier is suitable for harsh environmental conditions, with an operating temperature range from -40°C to 125°C. Its output current up to 65 mA allows it to drive moderate load impedances efficiently. The device is RoHS compliant and manufactured in Thailand, ensuring adherence to environmental and quality standards.
Maximum supply voltage of 16 V enables high-voltage applications. Dual amplifier channels provide versatility in circuit design. Compact dimensions (2mm x 3mm x 0.75mm) optimize PCB space. Low offset and bias currents guarantee precision amplification.
Broad operating temperature range suits industrial use. Surface mount TDFN package facilitates automated assembly. Output current capacity supports driving loads up to 65 mA.
This operational amplifier is widely applicable in industrial instrumentation, test and measurement setups, signal conditioning circuits, and other precision electronic designs requiring stable operational amplifiers. It is ideal for systems in electronics manufacturing, medical devices, automotive electronics, and consumer electronics, where compact size and reliable performance are essential.
Explore the complete range of Microchip Operational Amplifiers on EnvMart for your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this operational amplifier is 16V, allowing for high-voltage applications.
The gain bandwidth product (GBP) of the MCP6H02T-E/MNY is 1.2 MHz, making it suitable for various applications requiring stable gain.
It operates reliably over a temperature range from -40°C to 125°C, suitable for harsh environmental conditions.
This operational amplifier can provide an output current capacity of up to 65 mA, supporting moderate load driving.
The dimensions of this model are 2mm in length, 3mm in width, and 0.75mm in height, making it compact for PCB designs.
The input offset voltage is 3.5 mV, which helps ensure signal accuracy in applications.
It is housed in an 8-pin Thin Dual Flat No-lead (TDFN) package, which is ideal for surface mounting on printed circuit boards.
The slew rate of the MCP6H02T-E/MNY is 0.8 V/μs, allowing effective amplification of moderate frequency signals.
The input bias current is 10 pA, which minimizes input errors and enhances signal fidelity.
This operational amplifier is suitable for industrial instrumentation, test and measurement setups, and signal conditioning circuits.
Yes, this operational amplifier is RoHS compliant, ensuring adherence to environmental standards.
The input offset current is 1 pA, which contributes to the precision of the amplification process.
