ASSMANN WSW D-Sub Connector 25 Contacts Right Angle 2.77 mm Pitch Through Hole with 4 to 40 UNC Screw Lock A-DS 25 A/KG-T2

Free Delivery in India | Lowest Global Shipping Charges

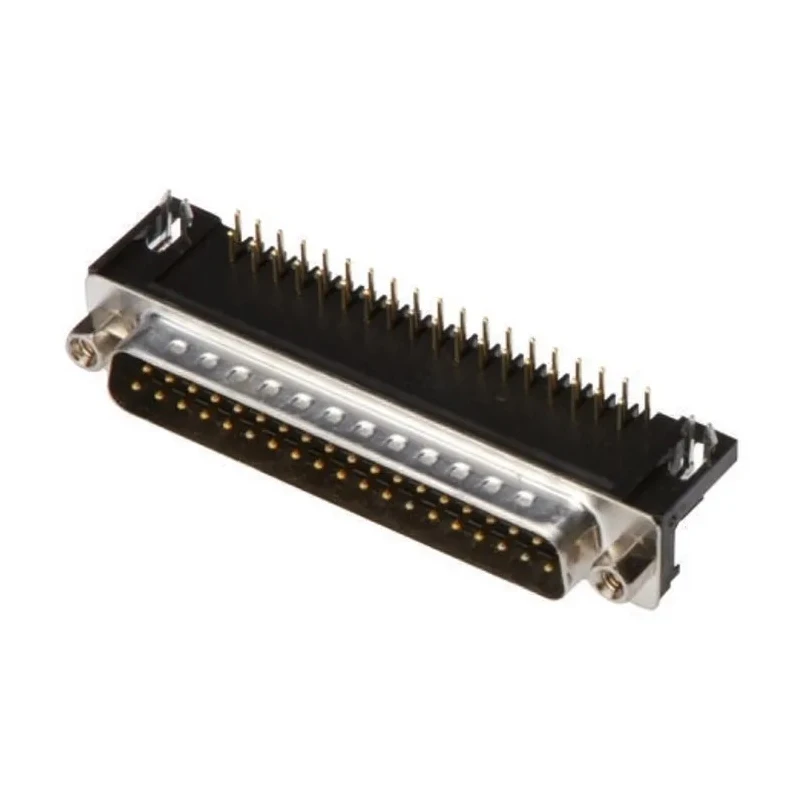

ASSMANN WSW D-Sub Connector 25 Contacts Right Angle 2.77 mm Pitch Through Hole with 4 to 40 UNC Screw Lock A-DS 25 A/KG-T2

Name: ASSMANN WSW D-Sub Connector 25 Contacts Right Angle 2.77 mm Pitch Through Hole with 4 to 40 UNC Screw Lock A-DS 25 A/KG-T2
Brand: ASSMANN WSW
SKU: 344633
Price: 20.22 USD
Availability: InStock



Category D-Sub Connector Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Right Angle
Current	3A
Model	A-DS 25 A/KG-T2
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	A-DS
Mounting Hardware	4 to 40 UNC Screw Lock
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Pitch	2.77mm
Contact Plating	Gold, Nickel
Number of Contacts	25
Contact Gender	Male
Connector Type D	D-Sub

Key Features

Connector supports a current rating of 3A.
Equipped with 4 to 40 UNC screw lock hardware for secure mounting.
Housing made of durable Polybutylene Terephthalate material.
Operates at a voltage up to 250V with a temperature range from -40°C to 105°C.
Contact plating includes gold and nickel for enhanced conductivity and corrosion resistance.
Designed for solder termination.
Brass contact material ensures robust electrical performance.
Suitable for industrial and electronic applications requiring reliable D-Sub connectors.

Product Description

ASSMANN WSW A-DS 25 A/KG-T2 is a high-quality D-Sub Connector featuring 25 male contacts arranged in a right angle orientation with a 2.77 mm pitch. It is engineered for through hole mounting applications and includes reliable 4 to 40 UNC screw lock hardware to ensure secure mechanical fastening on printed circuit boards.

The connector housing is constructed from Polybutylene Terephthalate, providing excellent durability and resistance to environmental factors. It supports a maximum current of 3A and a voltage rating of 250V, suitable for a broad range of electronic and industrial devices.

Operating temperature ranges from -40°C to 105°C, allowing the connector to perform reliably in demanding thermal environments. The contacts are made of brass with gold and nickel plating for superior electrical conductivity and long-term corrosion protection.

Termination is achieved through soldering, making this connector ideal for PCB assembly in manufacturing, automation, and control equipment. Its robust design complies with USA-standard D-Sub connector specifications for versatile usage.

Current rating of 3A to support moderate power loads. Right angle contacts for space-efficient PCB layouts. Through hole mount type for secure and stable assembly. Housing material offers chemical and thermal resistance.

Gold and nickel plating enhances contact reliability. Solder termination ensures strong electrical connections. Includes 4 to 40 UNC screw lock fasteners for added mechanical stability. Suitable for varied industrial, electronic assembly and embedded systems applications.

This D-Sub Connector is an excellent choice for engineers and technicians seeking a dependable connection for signal and power interface in electronics manufacturing, industrial automation, and instrumentation sectors. Explore more ASSMANN WSW connectors and components in EnvMart’s Electronics & Electricals category.
