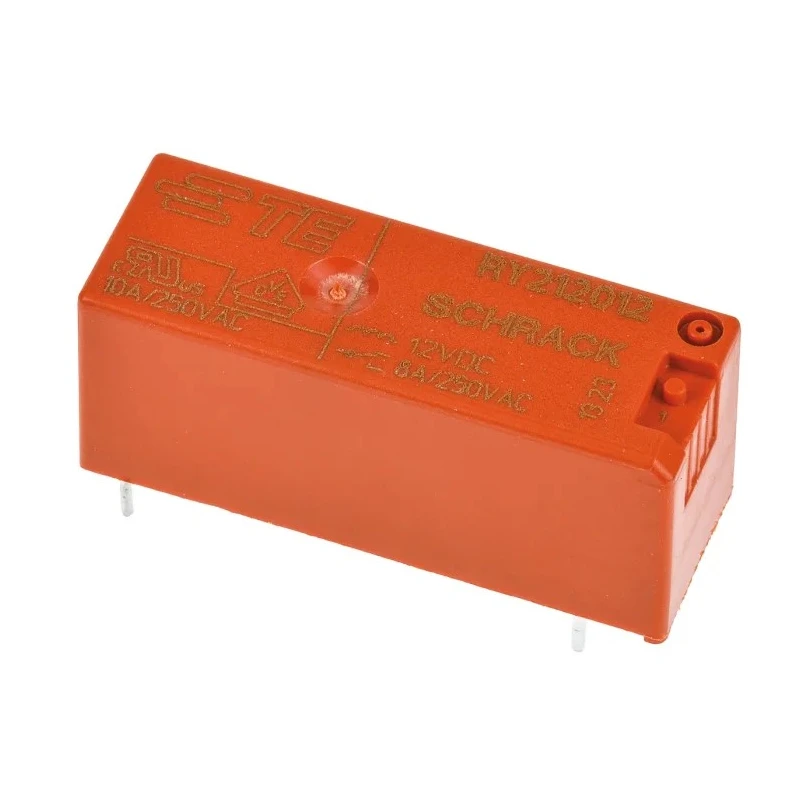

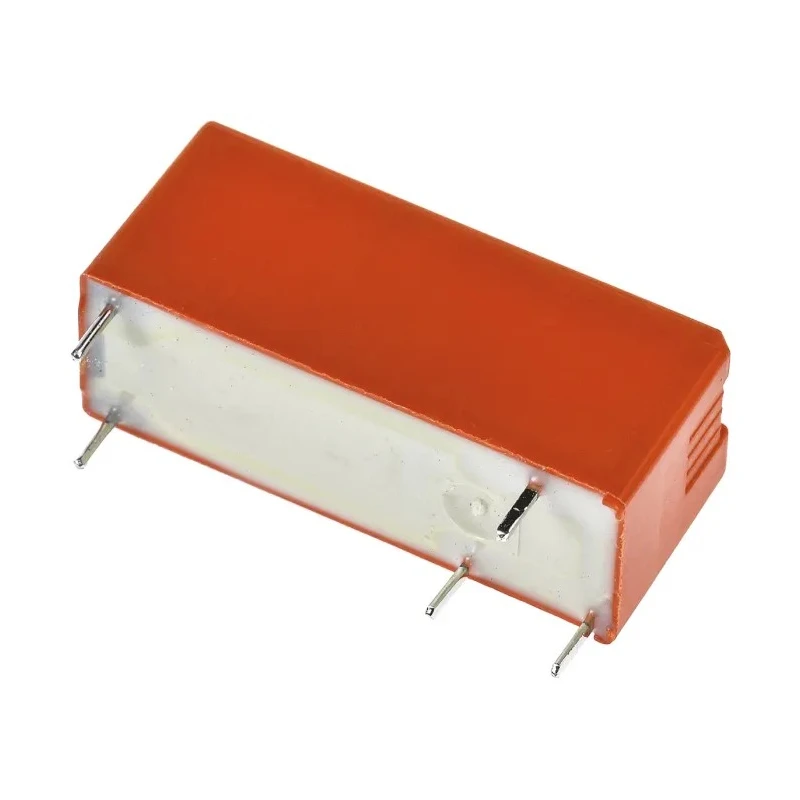

TE Connectivity PCB Power Relay 12V dc Coil 8A Switching Current SPDT RY212012

TE Connectivity RY212012 is a PCB power relay designed for industrial and automation applications requiring a robust, compact switching solution. It operates with a 12V dc coil and supports an 8A switching current with a single-pole double-throw (SPDT) contact configuration, offering versatile switching capabilities.

The relay mounts directly onto printed circuit boards via solder terminals, ensuring stable and secure electrical connections. Its coil resistance is 627 ohms with a power consumption of just 250mW, making it energy efficient. The device is engineered to perform reliably across a broad temperature range from -40°C to 70°C, suitable for challenging environments.

Physical dimensions are compact with a height of 12.3mm, length of 28.5mm, and width of 10.1mm, facilitating integration into space-constrained assemblies. The contacts are gold plated to provide low contact resistance and high durability, capable of switching up to 2kVA power at 400V AC.

This relay complies with rigorous industry standards including VDE, RoHS, and IEC 60335-1, ensuring safety and environmental compliance. It features 3.2mm pinning and an 8mm creepage and clearance distance for enhanced insulation and electrical isolation.

Applications range from industrial control systems, automation, HVAC, manufacturing equipment, to electrical signal conditioning. The RY212012 offers dependable performance for demanding electrical switching needs with compact form factor and recognized certifications.

Manufactured in Czech Republic, this relay delivers quality and precision for integration in professional electronics assemblies. Its robust design and trusted brand reputation make TE Connectivity RY212012 a reliable choice for diverse industrial and commercial power relay applications.

Designed for PCB mounting with solder terminals. Operates reliably between -40°C and 70°C. Features gold plated contacts to ensure low resistance and durability. Compact dimensions: height 12.3mm, length 28.5mm, width 10.1mm.

Coil resistance is 627 ohms with coil power consumption of 250mW. Suitable for switching powers up to 2kVA and AC voltages up to 400V. Certified to comply with VDE, RoHS, and IEC 60335-1 standards. Constructed with 3.2mm pinning ensuring secure installation.

Offers creepage and clearance distance of 8mm for electrical safety. Manufactured in Czech Republic with high quality control. Explore more Power Relays and industrial electronic components at EnvMart for trusted quality and support.
