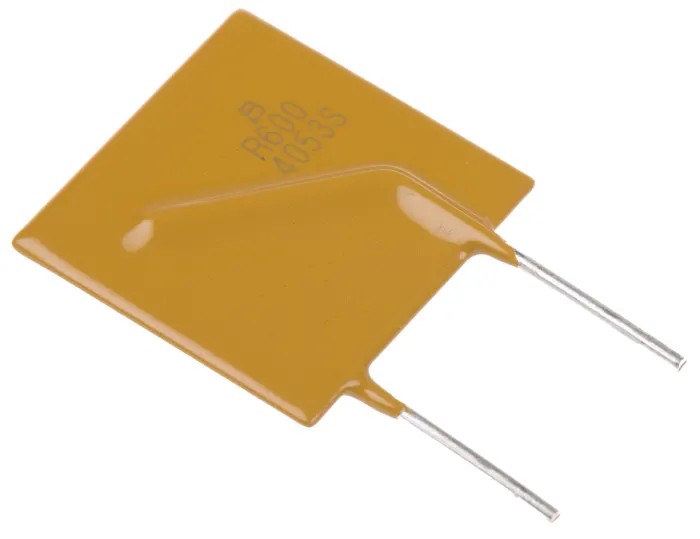

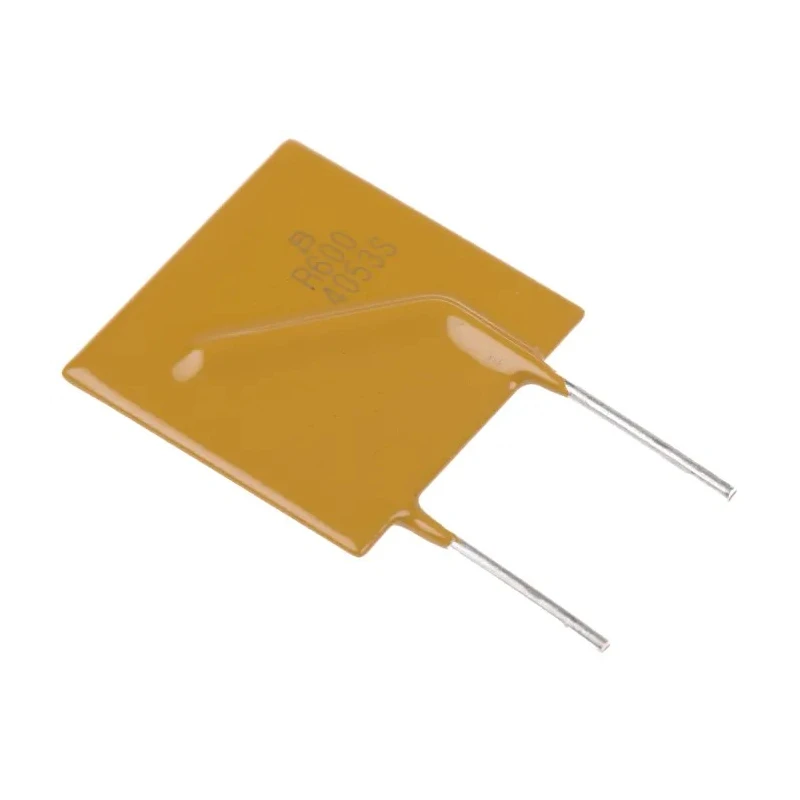

Bourns Resettable Fuse 30V 6 A Hold Current 40 A Rating Radial Lead MF-R600

Bourns MF-R600 resettable fuse with 6 A hold current and 30V voltage rating is engineered for reliable circuit protection in electronic and electrical systems. The MF-R series devices feature radial leads for straightforward PCB assembly and a cured epoxy polymer housing that complies with UL 94V-0 flammability requirements.

This fuse automatically resets thousands of times, offering maintenance-free protection against overcurrent and short circuits. It exhibits a trip current of 12 A with a hold current of 6 A and supports a maximum continuous current rating of 40 A. The fuse has a rapid switching response for low resistance to a high resistance state upon fault detection, resetting once power is removed and the fault cleared.

With compact dimensions measuring 19.3 mm in length, 31.9 mm in height, and 3 mm in width, and a power dissipation rating of 3.5 W, the MF-R600 is suitable for space-constrained installations. The operating temperature range from -40°C to 85°C ensures dependable performance in varied environments.

The radial lead orientation with a lead diameter of 0.81 mm facilitates ease of installation. This fuse series is approved under RoHS and UL standards, ensuring high quality and compliance.

Typical applications include protection in security systems, power supplies and transformers, power switching devices, automotive and medical equipment, instrumentation and control systems, computer peripherals, as well as audio-visual and telecommunications equipment.

Automatically resets after tripping due to overload or short circuit. Radial lead orientation for easy PCB mounting. Rated trip current of 12 A and hold current of 6 A. Supports a maximum current rating of 40 A. Compact size suitable for constrained spaces.

Broad operating temperature range from -40°C to 85°C. Power dissipation of 3.5 W. Flame retardant epoxy polymer housing meeting UL 94V-0 standard. Maintenance-free and rapid response to fault conditions. Approvals: RoHS, UL compliant.
