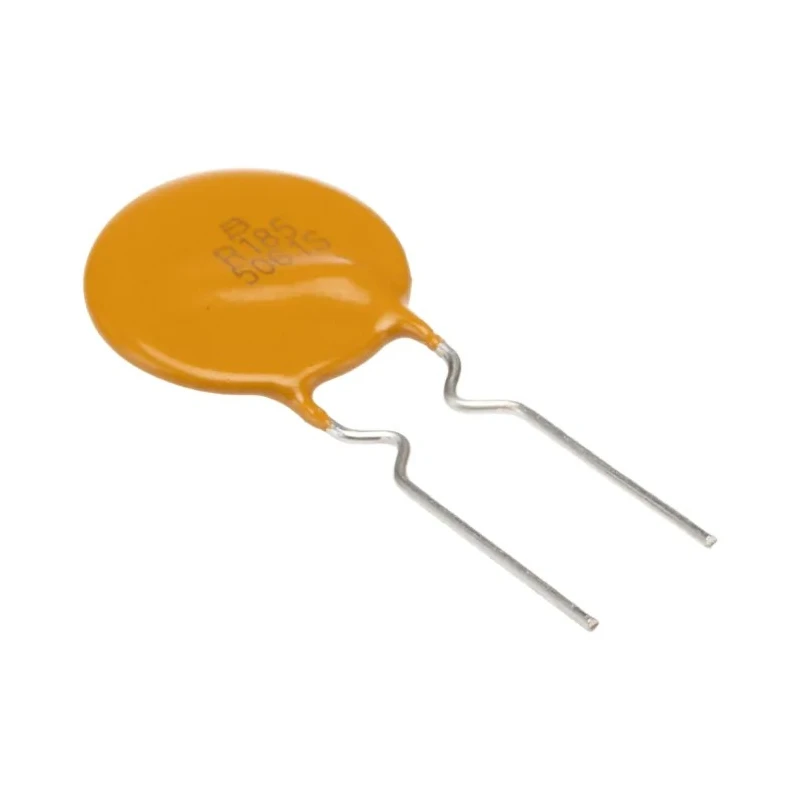

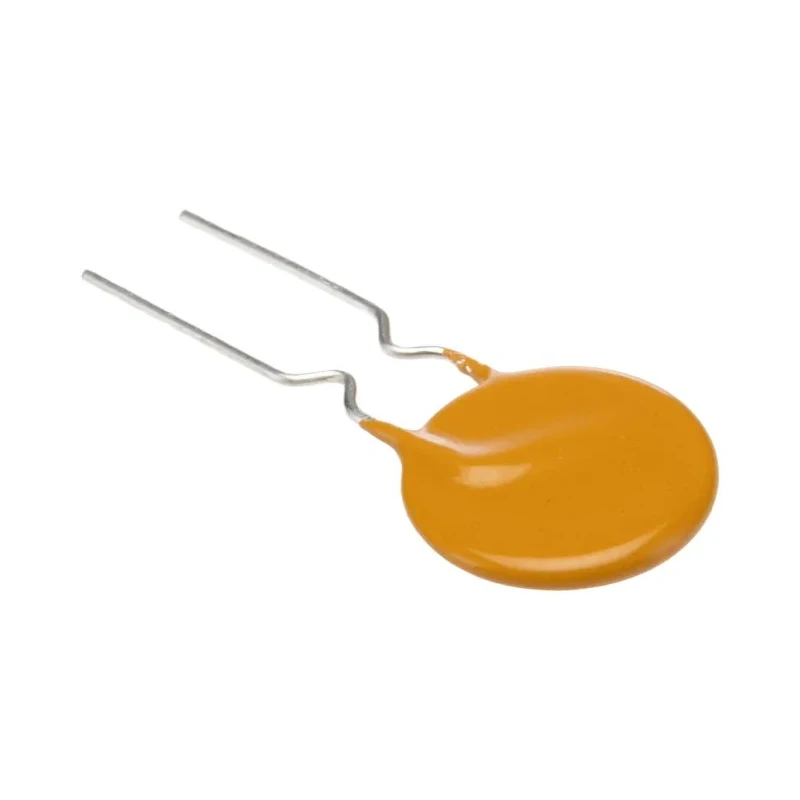

Bourns 1.85 A Resettable Fuse 30V Radial Leaded Epoxy Polymer MF-R185

Bourns MF-R185 resettable fuse is a radial leaded circuit protection device with a hold current of 1.85 A and voltage rating of 30 V. It prevents damage to electrical and electronic circuits by automatically switching from a low resistance state to a high resistance state when an overload or short circuit occurs.

Constructed with a cured, flame retardant epoxy polymer insulating material, this fuse meets UL 94V-0 standards, assuring safety and durability in harsh conditions. Its compact dimensions of 12 mm length, 18.4 mm height, and 3 mm width make it suitable for PCB mounting without requiring a fuse holder, saving space in designs.

The device features radial lead orientation with 0.51 mm diameter leads designed for easy and reliable PCB soldering. It supports a high current rating of 40 A with a rapid trip time of 8.7 seconds under a trip current of 3.7 A. The minimum resistance is 0.04 Ω and maximum resistance is 110 mΩ, contributing to efficient circuit protection with minimal loss.

This Resettable Fuse operates effectively in a wide temperature range from -40°C to 85°C, making it adaptable to various industrial, commercial, and medical applications. Its power dissipation rating of 1 W ensures stable performance during load conditions.

Certified to RoHS and UL standards, the MF-R185 fuse is suitable for protecting power supplies, transformers, automotive electronics, medical equipment, security systems, instrumentation, control circuits, computers, and audiovisual telecommunications equipment.

Automatically resets itself thousands of times, enabling maintenance-free operation. Designed with flame retardant epoxy polymer for enhanced safety. Compact form factor eliminates the need for fuse holders. Wide temperature range for versatile application environments.

RoHS and UL certifications ensure compliance with safety standards. Radial leaded device simplifies PCB assembly. Rated hold current of 1.85 A and trip current of 3.7 A. Power dissipation of 1 watt supports stable operation.

Ideal for electronic device protection in industrial and commercial settings. Explore more circuit protection devices in the Electronics & Electricals category to find suitable components for your projects and applications.
