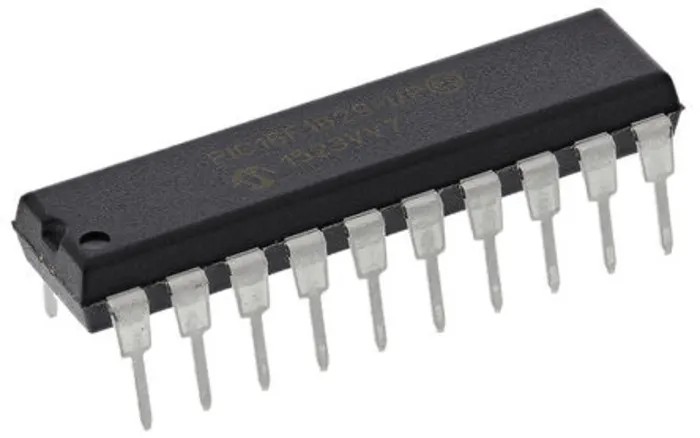

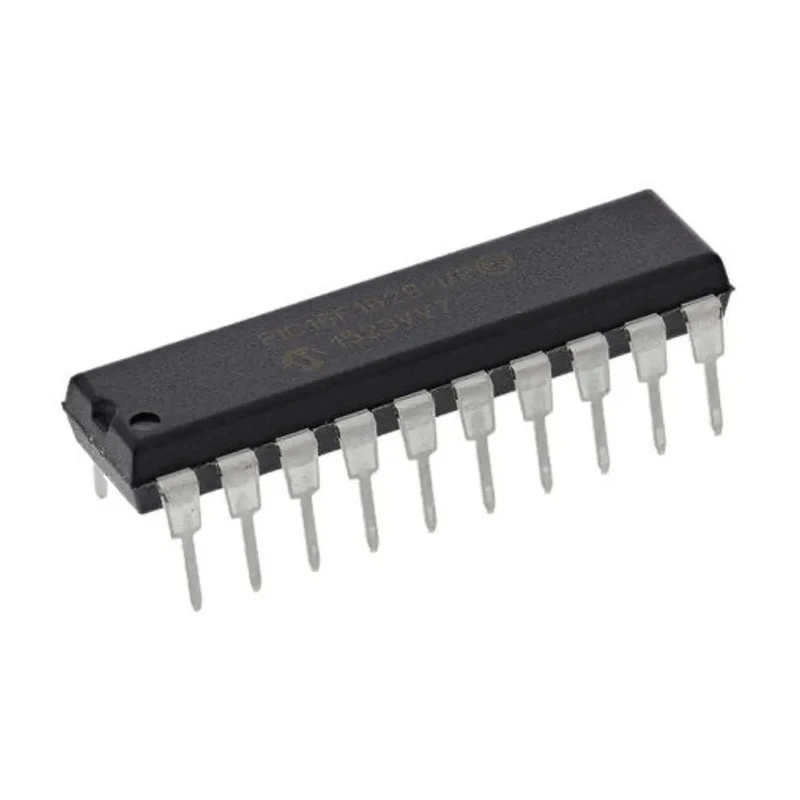

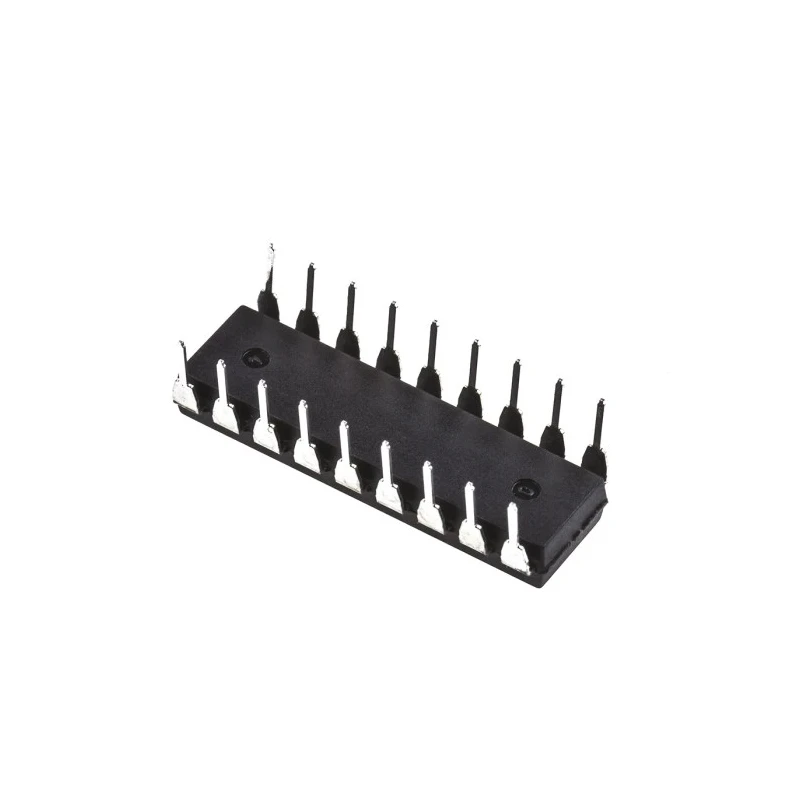

Microchip PIC16F690-I/P 8-bit PIC16F Microcontroller 20 MHz 7kB FLASH 20-Pin PDIP

Microchip PIC16F690-I/P is an 8-bit PIC microcontroller designed for flexible embedded applications. It features a robust PIC16F core with a RISC instruction set architecture, delivering efficient processing performance at a maximum clock frequency of 20 MHz.

The device incorporates 7 kB of flash program memory and 256 bits of RAM to store code and data. It supports a wide supply voltage range from 2V to 5.5V and maximum power dissipation of 800 mW for efficient power management. Its 20-pin PDIP package allows for easy integration in through-hole PCB designs.

The PIC16F690 provides 33 programmable I/O pins, making it suitable for complex digital interfacing. It includes 12 channels of 10-bit ADC for precise analog signal conversions, along with two analog comparators for analog signal processing. Three timers are integrated to support timing and PWM applications.

The microcontroller supports communication via synchronous serial port (SSP) and enhanced universal synchronous asynchronous receiver transmitter (EUSART), facilitating multiple protocol implementations.

Operating temperature is compliant with industrial standards, ranging from -40°C to 85°C, suitable for a variety of environmental conditions. The device is fabricated in Taiwan, Province Of China, ensuring quality manufacturing standards.

This microcontroller is ideal for industrial, consumer electronics, and embedded systems requiring cost-effective, low power and flexible microcontroller solutions. Features an 8-bit PIC microcontroller core with RISC architecture.

Includes 7 kB of flash program memory and 256-bit RAM size. Operates with supply voltage ranging from 2V to 5.5V. Supports up to 33 programmable I/O pins for versatile interfacing. Incorporates 12 channels of 10-bit analog to digital converters (ADC).

Contains two analog comparators and three timers for extended functionality. Enables synchronous serial port (SSP) and enhanced USART communication. Features low power consumption with up to 800 mW maximum power dissipation.

Suitable for applications requiring a maximum clock frequency of 20 MHz. Designed to operate within temperature range from -40°C to 85°C. Discover more Microcontrollers and embedded solutions in the Electronics & Electricals category at EnvMart.
