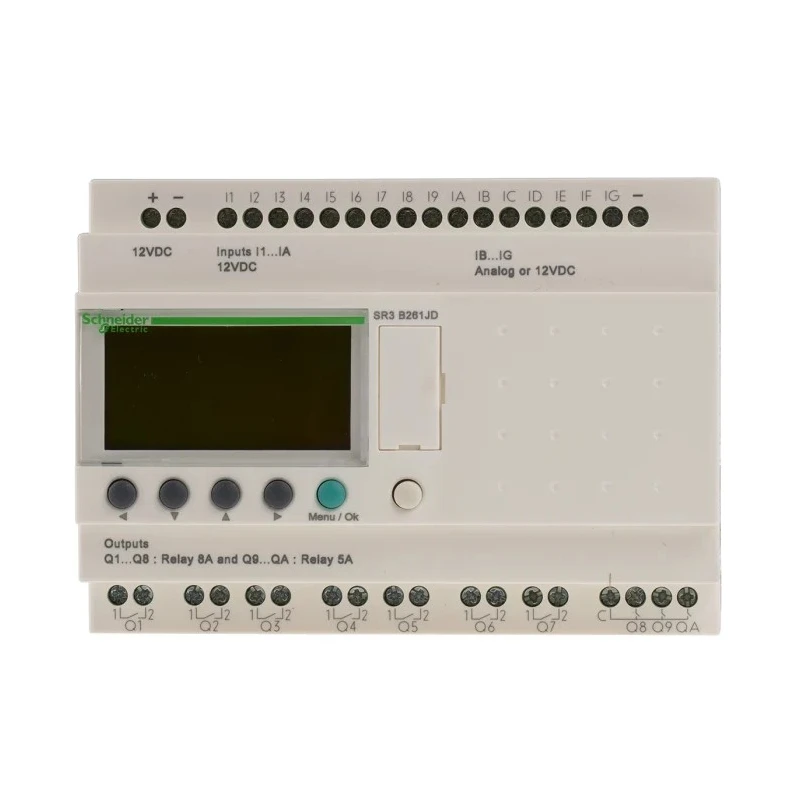

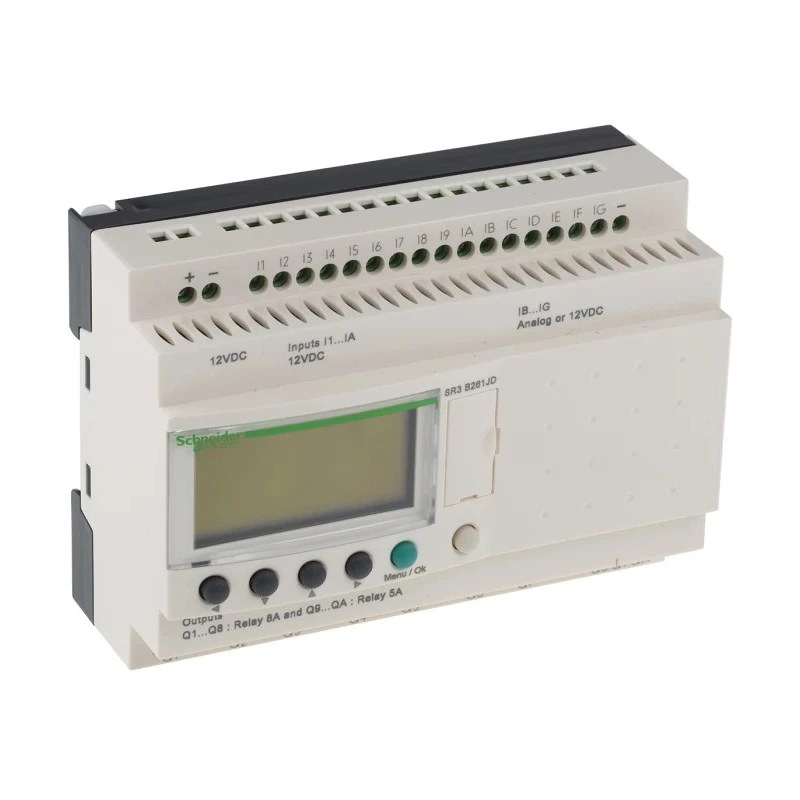

Schneider Electric Zelio Logic Series Logic Module 16 Inputs Analogue Digital, 10 Relay Outputs 12V dc SR3B261JD

Schneider Electric SR3B261JD Zelio Logic Series Logic Module is designed for precise control of automation processes requiring up to 16 inputs and 10 relay outputs. This analogue and digital input module is ideal for controlling small machinery, lighting systems, and assembly equipment with reliable relay outputs.

The module includes a backlit LCD display for easy viewing in dimly lit areas and supports programming via intuitive Ladder Logic and Function Block Diagram methodologies. Connection to a PC enables enhanced programming flexibility using free downloadable Zelio Logic software.

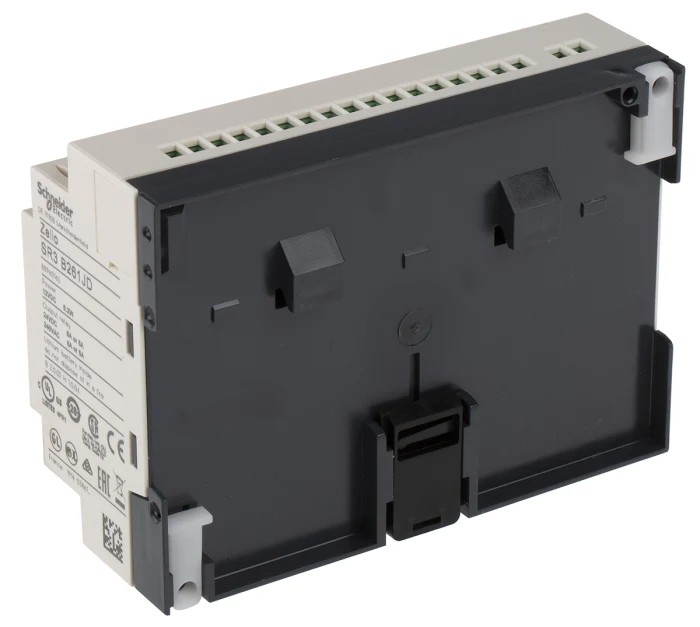

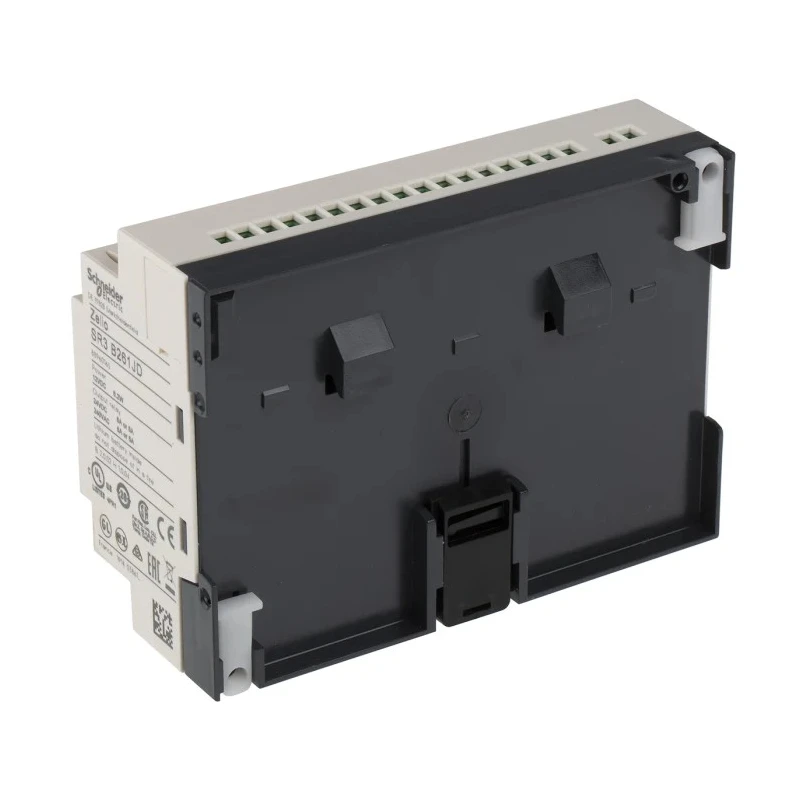

Suitable for DIN rail or panel mounting, the compact unit measures 107.6 mm in length, 124.6 mm in width, and 59.5 mm depth, operating efficiently at 12 volts DC with an output current capacity of 5 amperes. It features a temperature tolerance from -20°C to 55°C, ensuring reliable performance under diverse industrial conditions.

Battery backup capability preserves program integrity during power outages to prevent process interruptions. The Logic Module complies with important international standards such as CSA, C-Tick, GL, GOST, and UL, confirming its quality and suitability for global applications.

Common industrial and commercial use cases include automation of production equipment, remote lighting control, and assembly line management. This reliable smart relay technology provides scalable solutions for optimizing electrical circuits with remote or on-site control.

The module supports Ladder Logic and Function Block Diagram programming languages for versatile automation control. Equipped with an LCD backlight display for enhanced readability in low-light environments. Operates at a supply voltage of 12V DC with an output current of 5A per relay output.

Compact dimensions allow DIN rail installation or panel mounting enhancing flexible setup options. Temperature operation range is from -20°C to +55°C suitable for various industrial environments. Includes battery backup to retain memory and program information during power interruptions.
