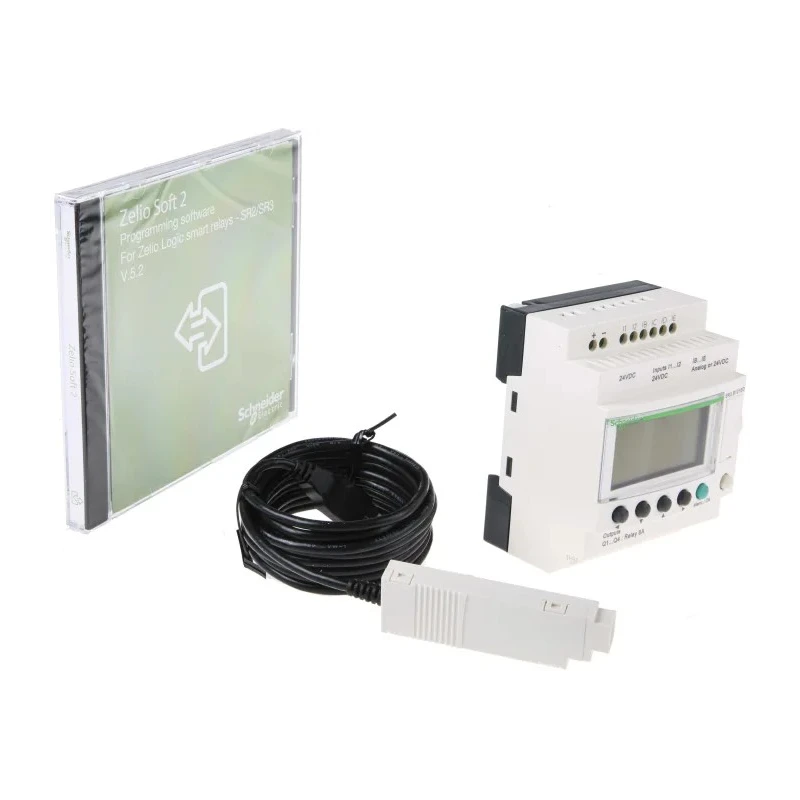

Schneider Electric Zelio Logic 2 Series PLC CPU, 6-Input, Analogue and Digital Input, 4 Relay Outputs, DIN Rail SR3PACKBD
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Length | 90mm |
| Model | SR3PACKBD |
| Depth | 59mm |
| Width | 71.2mm |
| Mount Type | DIN Rail |
| Number of inputs | 6 |
| Output type | Relay |
| Series | Zelio Logic 2 |
| Input Type | Analogue, Digital |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | -20°C |
| Number of outputs | 4 |
| Standards/Approvals | UL, GOST, GL, C-Tick, CSA |
| Communication Port Type | Computer |
| Programming Language Used | Ladder Diagram, FBD |
Key Features
- Supports both analogue and digital input types for flexible control.
- Equipped with 4 relay outputs for reliable switching operations.
- Compact dimensions of 90mm length, 71.2mm width, and 59mm depth.
- Programmable using ladder diagram and function block diagram (FBD).
- Integrated battery backup ensures data retention during power loss.
- Includes a display for easy operation and programming feedback.
- Operates within a temperature range of -20°C to 40°C suitable for harsh environments.
- Mounts easily on standard DIN rails for convenient installation.
Product Description

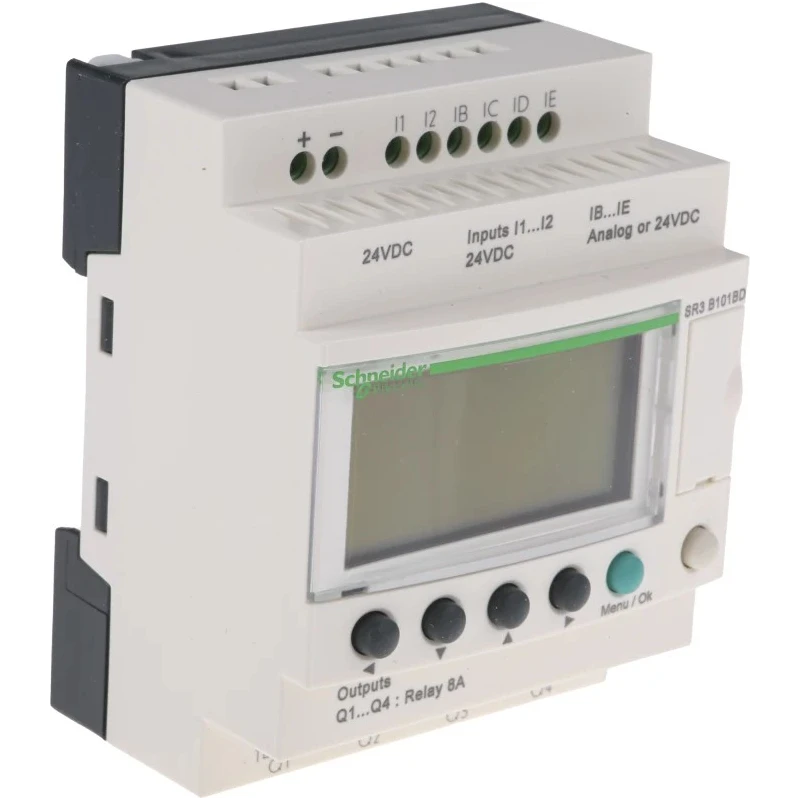

Schneider Electric SR3PACKBD is a Zelio Logic 2 Series programmable logic controller (PLC) CPU designed for precise automation control in industrial and commercial environments. Featuring 6 inputs that accept both analogue and digital signals alongside 4 relay outputs, this PLC allows effective management of various control scenarios requiring mixed input types.
Its compact size of 90mm length, 71.2mm width, and 59mm depth enables integration into space-constrained control panels. The device includes a built-in display for clear visual feedback and user-friendly operation directly on the module. Programming is accomplished via ladder diagram and function block diagram (FBD) languages, facilitating flexible and intuitive configuration.
This PLC CPU is DIN rail mountable, simplifying installation within electrical cabinets and racks typical in automation, manufacturing, and process control applications. With operational temperature range from -20°C to 40°C, it withstands diverse environmental conditions, while battery backup capability guards against data loss during power interruptions.
Ideal for automation systems in manufacturing plants, HVAC control, water treatment facilities, and commercial building management, this Zelio Logic 2 Series PLC facilitates reliable and expandable control solutions.
Supports both analogue and digital input types for flexible control. Equipped with 4 relay outputs for reliable switching operations. Compact dimensions of 90mm length, 71.2mm width, and 59mm depth. Programmable using ladder diagram and function block diagram (FBD).
Integrated battery backup ensures data retention during power loss. Includes a display for easy operation and programming feedback. Operates within a temperature range of -20°C to 40°C suitable for harsh environments. Mounts easily on standard DIN rails for convenient installation.
Conforms to UL, GOST, GL, C-Tick, and CSA standards. Manufactured in France ensuring high quality and reliability. Browse more PLC CPUs and automation solutions from Schneider Electric and other leading brands on EnvMart for your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 6 inputs that accept both analogue and digital signals, providing flexible control options for various applications.
It is equipped with 4 relay outputs, allowing for reliable switching operations in control scenarios.
The compact dimensions of this unit are 90mm in length, 71.2mm in width, and 59mm in depth, making it suitable for space-constrained installations.
It operates effectively within a temperature range of -20°C to 40°C, suitable for diverse environmental conditions.
Programming can be accomplished using ladder diagram and function block diagram (FBD) languages, facilitating intuitive configuration.
It mounts easily on standard DIN rails, simplifying installation in electrical cabinets and racks commonly used in automation.
Yes, it includes an integrated battery backup that ensures data retention during power loss, preventing data loss in critical applications.
This model conforms to several standards including UL, GOST, GL, C-Tick, and CSA, ensuring compliance with industry requirements.
The PLC is equipped with a computer communication port type, facilitating connection to other devices for programming and monitoring.
It is manufactured in France, ensuring a high level of quality and reliability in its construction and performance.
This PLC is ideal for automation systems in manufacturing plants, HVAC control, water treatment facilities, and commercial building management.
It supports both analogue and digital input types, allowing for versatile control in various automation scenarios.
