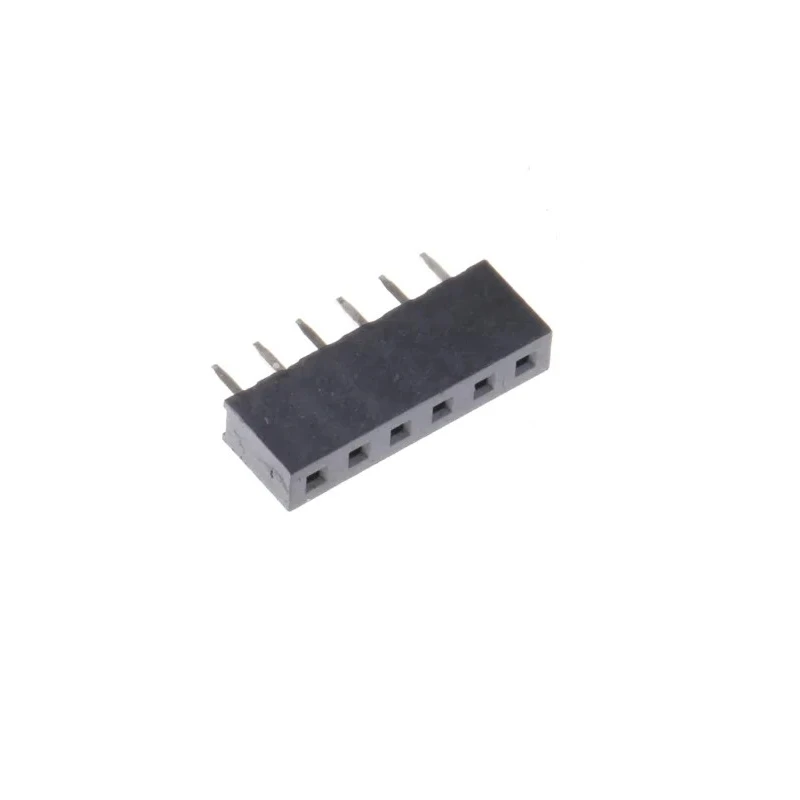

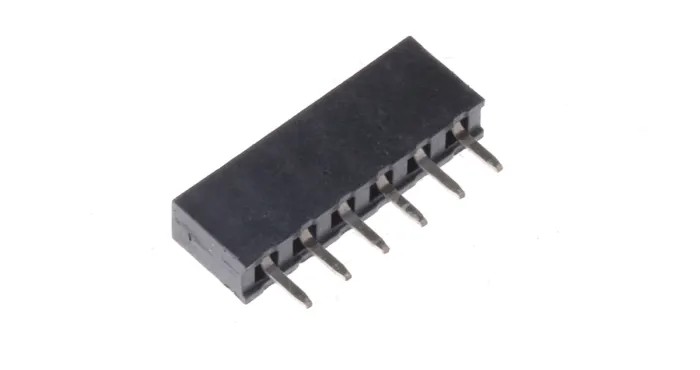

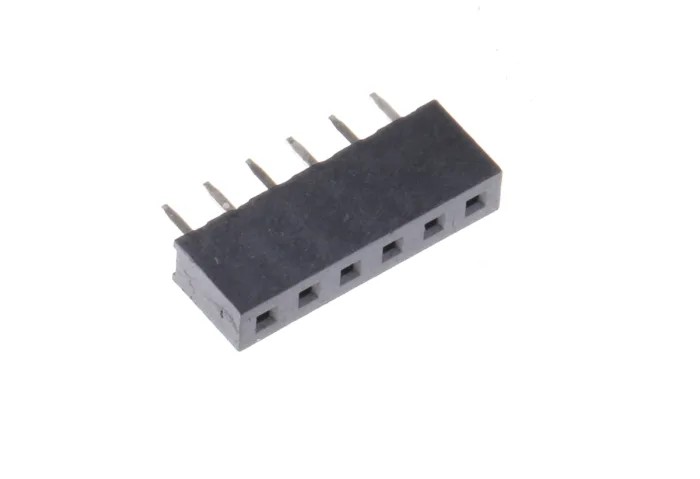

HARWIN M22 Series Straight Through Hole PCB Socket, 6-Contact, 1 Row, 2 mm Pitch, 12A, 500V M22-7130642

HARWIN M22-7130642 is a high-quality straight through hole PCB socket connector from the M22 series, designed for board-to-board electrical connections with 6 female contacts arranged in a single row, spaced at 2 mm pitch. It supports a current rating of up to 12A and a voltage of 500V, making it suitable for a wide range of electronic and industrial applications.

The socket housing is made from high temperature Liquid Crystal Polymer material, which complies with UL94V-0 flammability standards, allowing it to withstand typical reflow soldering processes. The gold-plated bronze dual beam contacts provide excellent conductivity and ensure secure connections with up to 300 mating cycles, enhancing the reliability of the connector in demanding environments.

Mounting is through-hole style, allowing stable solder termination on printed circuit boards for robust mechanical and electrical performance. The design features a straight orientation and is optimized for board-to-board connector systems, supporting high PCB density and accommodating height constraints in embedded systems and large electronic assemblies.

Operating temperature range is from -25°C to 105°C, suitable for consumer electronics, industrial monitoring, drive controls, communications equipment, and personal computing devices. The M22 series PCB sockets are industry-standard components favored for their durability and compact design.

The socket's fine 2 mm pitch suits high-density PCB applications. Durable housing material permits reflow soldering without damage. High reliability dual beam contacts improve electrical connection quality. Up to 300 mating cycles provide extended connector life.

Support for currents of up to 12A per contact ensures safe operation. Operating voltage rating of 500V meets various application requirements. Explore the HARWIN M22 series range for standardized and robust PCB Socket solutions at EnvMart, suitable for industrial, commercial, and laboratory electronics applications.
